- VICTORY VEGAS ALL OPTIONS - V04GB16/NC16
SUSPENSION, REAR and SWING ARM - V04GB16/NC16/ALL OPTIONS (4989548954A04)

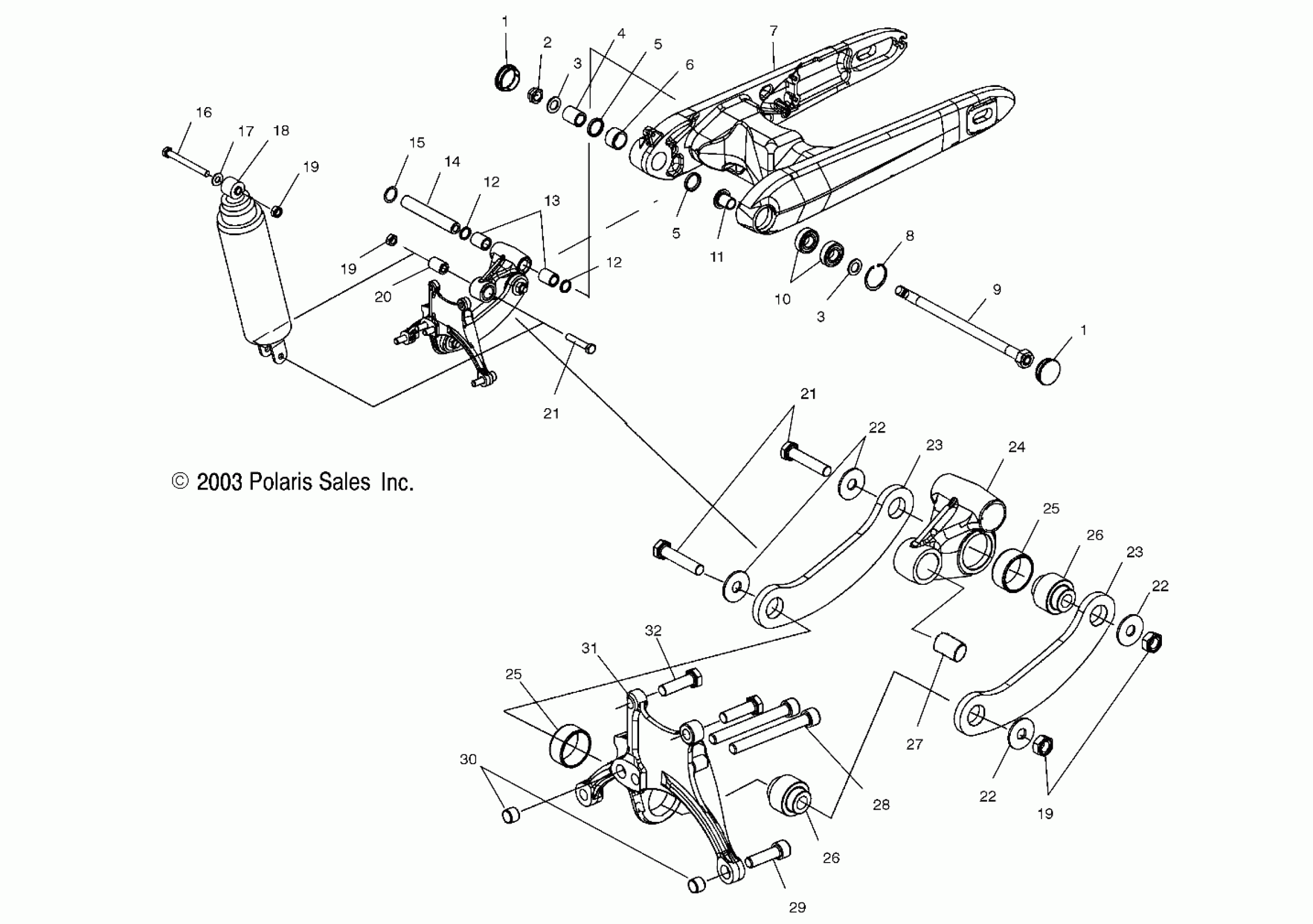

Polaris VICTORY VEGAS ALL OPTIONS - V04GB16/NC16 SUSPENSION, REAR and SWING ARM - V04GB16/NC16/ALL OPTIONS (4989548954A04) Diagram
#
1
Cap
5434637
Unavailable
1
Cap
5434637
Unavailable
2
Nut, FLEXLOC
7547048
Unavailable
3
WASHER, FLAT
7556236
Unavailable
3
WASHER, FLAT
7556236
Unavailable
4
Bushing
5133475
Unavailable
5
SEAL
3610096
Unavailable
5
SEAL
3610096
Unavailable
6
BEARING
3514413
Unavailable
7
Asm., Swing Arm w/Bearings, Silver
1014408-385
$989.99
7
Asm., Swing Arm w/Bearings, Chrome
1014408-156
$989.99
8
RING, RETAINING
7670149
Unavailable
9
Shaft, Swing Arm Pivot
1013916
$55.56
10
BEARING, BALL
3514414
Unavailable
11
BUSHING
5631478
Unavailable
12
SEAL
3610095
Unavailable
12
SEAL
3610095
Unavailable
13
BEARING, NEEDLE
3514411
Unavailable
14
BUSHING
5134101
Unavailable
15
RING, RETAINING
7710544
Unavailable
16
SCREW
7518206
Unavailable
17
Washer, Flat
7556155
$5.22
18
ASM., SHOCK [SEE REAR SHOCK PG. C1 FOR DETAILS]
-------
Unavailable
19
NUT, NYLOK
7547268
$1.49
19
NUT, NYLOK
7547268
$1.49
19
NUT, NYLOK
7547268
$1.49
20
Bushing, Suspension, Short
5133473
Unavailable
21
SCREW
7517946
Unavailable
21
SCREW
7517946
Unavailable
22
Washer, Flat
7556260
Unavailable
22
Washer, Flat
7556260
Unavailable
22
Washer, Flat
7556260
Unavailable
23
Link, Suspension Strap
5247519
$55.56
23
Link, Suspension Strap
5247519
$55.56
24
Link, Suspension Pivot
5134080-067
Unavailable
25
BEARING
3514459
Unavailable
25
BEARING
3514459
Unavailable
26
Bushing, Suspension, Plain Bearing
5134096
Unavailable
26
Bushing, Suspension, Plain Bearing
5134096
Unavailable
27
BEARING, NEEDLE
3514412
Unavailable
28
SCREW
7518202
Unavailable
29
SCR-SH-M10X1.5X35 8.8 ZPD D204
7518032
Unavailable
30
DOWEL
7663008
$5.27
31
Mount, Minor Pivot
5134079-067
$298.99
32
SCREW
7517827
$6.39
