- VICTORY VEGAS ALL OPTIONS - V04GB16/NC16
STEERING, HANDLEBAR - V04GB16CA/CB/CC/CE/CG/CJ/CK/CL/DA/DB/DC/DE/DG/DJ/DK/DL/LA/LB/LC/LE/LG/LJ/LK/LL/UA/UB/UC/UE/UG/UJ/UK/UL (4989548954A08)

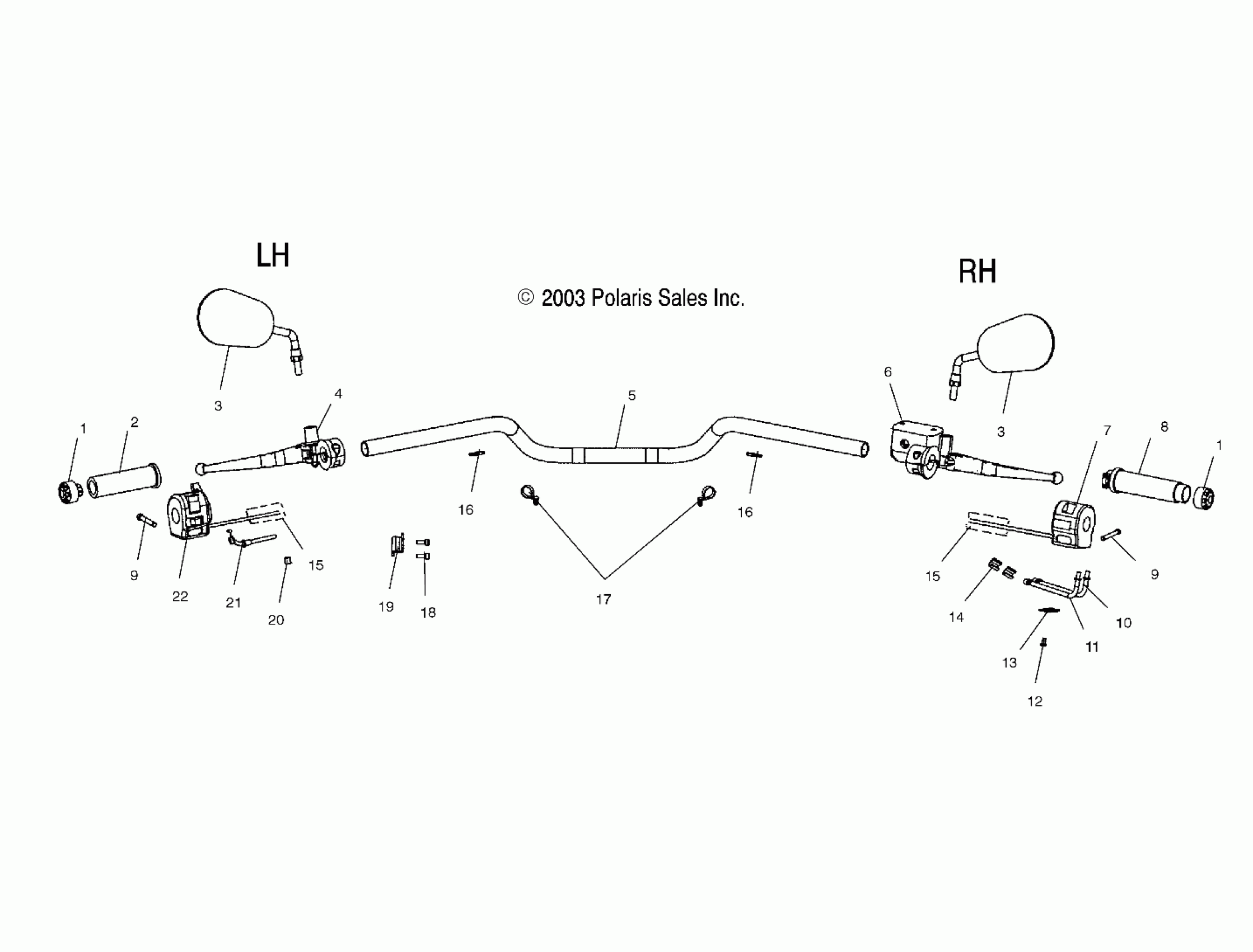

Polaris VICTORY VEGAS ALL OPTIONS - V04GB16/NC16 STEERING, HANDLEBAR - V04GB16CA/CB/CC/CE/CG/CJ/CK/CL/DA/DB/DC/DE/DG/DJ/DK/DL/LA/LB/LC/LE/LG/LJ/LK/LL/UA/UB/UC/UE/UG/UJ/UK/UL (4989548954A08) Diagram
#
Description
Price
-
Asm., Throttle Cable [Incl. 10,11,14]
2010224
Unavailable
1
Cap, Handlebar End, LH
5432692
Unavailable
1
Cap, Handlebar End, LH
5432692
Unavailable
4
ASM., CLUTCH LEVER [SEE CLUTCH LEVER ASM. PG. C2 FOR DETAILS]
----
Unavailable
5
Handlebar, Pull Back
5334359
Unavailable
6
ASM., MASTER CYLINDER, FRONT BRAKE [SEE FRONT BRAKE PG. B12, REF. 3]
----
Unavailable
9
Screw
7517366
Unavailable
9
Screw
7517366
Unavailable
10
Cable, Throttle, Pull
7081131
Unavailable
11
Cable, Throttle, Push
7081130
Unavailable
13
Retainer, Throttle Cable
5242448
Unavailable
20
Bushing, Clutch Cable, Upper
5433071
Unavailable
21
Cable, Fast Idle
7080716
Unavailable
22
Switch, Hand Control, Silver, LH
4010775
Unavailable
