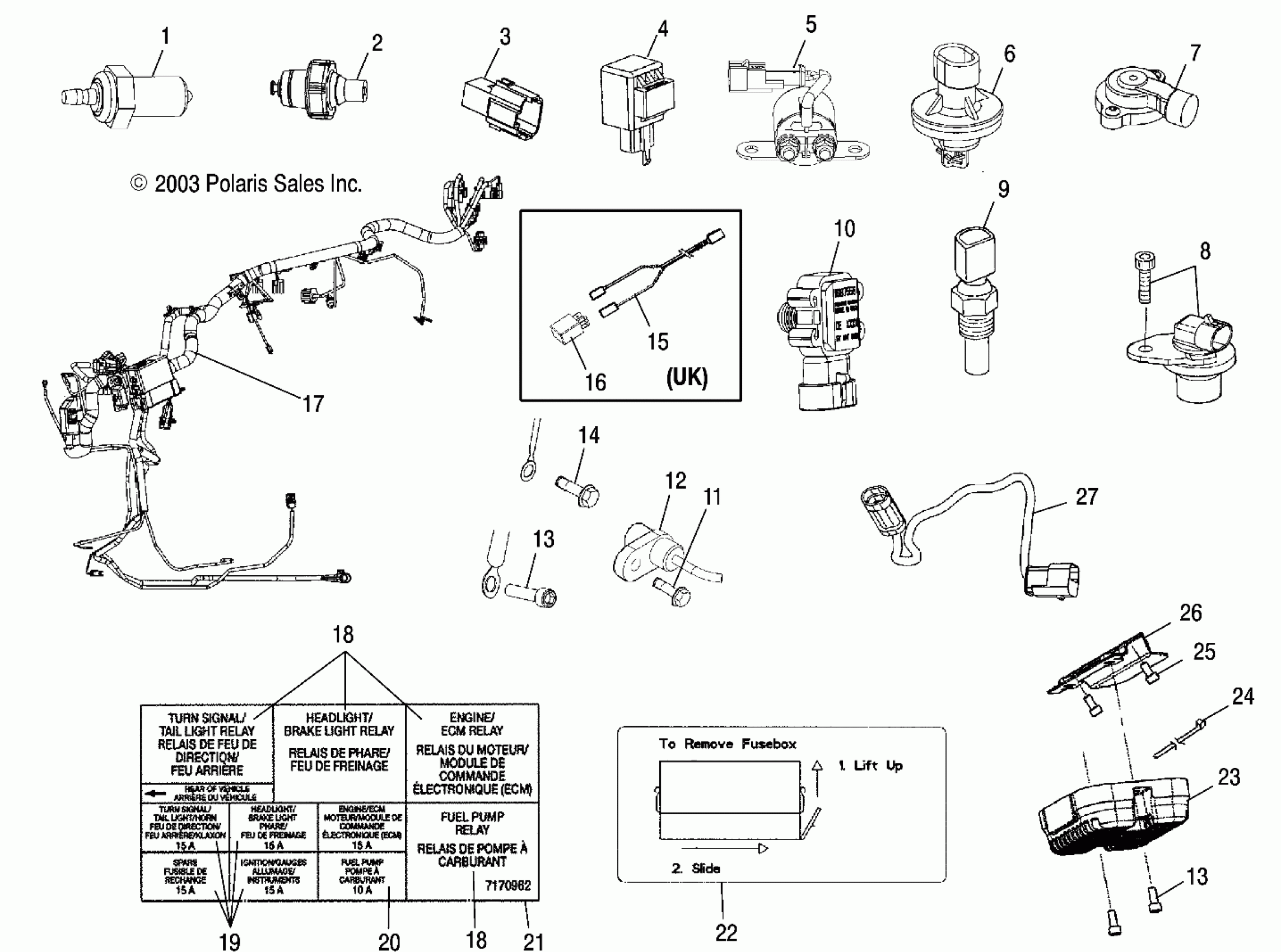

Polaris VICTORY VEGAS ALL OPTIONS - V04GB16/NC16 ELECTRICAL, HARNESSES, SENSORS and SWITCHES - V04GB16/NC16/ALL OPTIONS (4989548954C08) Diagram

#

Description
Price

1

Switch, Neutral Indicator

4110235

$15.08

2

Switch, Oil Pressure

4010649

$44.51

3

Diode

2410358

Unavailable

4

Relay, Flasher

2410338

$76.89

5

Solenoid, Starter

4010947

$47.60

6

Sensor, Air Temperature

4040077

Unavailable

7

Sensor, Throttle Position

4010225

Unavailable

7

O-Ring

1500201

$2.87

8

SCREW

7517272

$7.84

8

Sensor, Crankshaft Position

4110217

Unavailable

9

Sensor, Engine Temperature

4040076

Unavailable

10

Sensor, MAP

4040078

Unavailable

11

SCREW

7518141

$4.76

12

Sensor, Speed

4011111

$193.63

13

SCREW

7517272

$7.84

13

SCREW

7517272

$7.84

14

SCREW

7518140

$3.17

15

Harness, Headlight, UK

2461207

Unavailable

16

Relay (UK)

4010945

Unavailable

17

Harness, Main Wire

2461180

$529.99

18

Relay, Micro

4010948

$32.37

18

Relay, Micro

4010948

$32.37

19

FUSE-MINI BLADE,15 AMP

2410280

$8.08

20

FUSE-IGNITION,10 AMP

2434016

$5.65

21

Decal, Fuse Box

7170962

Unavailable

22

DECAL, FUSE BOX REMOVAL

7171031

Unavailable

23

Regulator, Voltage [Black]

2410337

Unavailable

23

Regulator, Voltage, Silver

2410421

Unavailable

24

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

25

Screw

7517739

$10.46

26

Bracket, Voltage Regulator [Black]

1013510

$27.94

26

Bracket, Voltage Regulator, Silver

1013623

$41.27

27

Harness, Jumper, Fuel Injector

2461135

Unavailable
