ELECTRICAL, ECM/BATTERY BOX/LH SIDE COVER - V04GB16/NC16/ALL OPTIONS (4989548954C03)

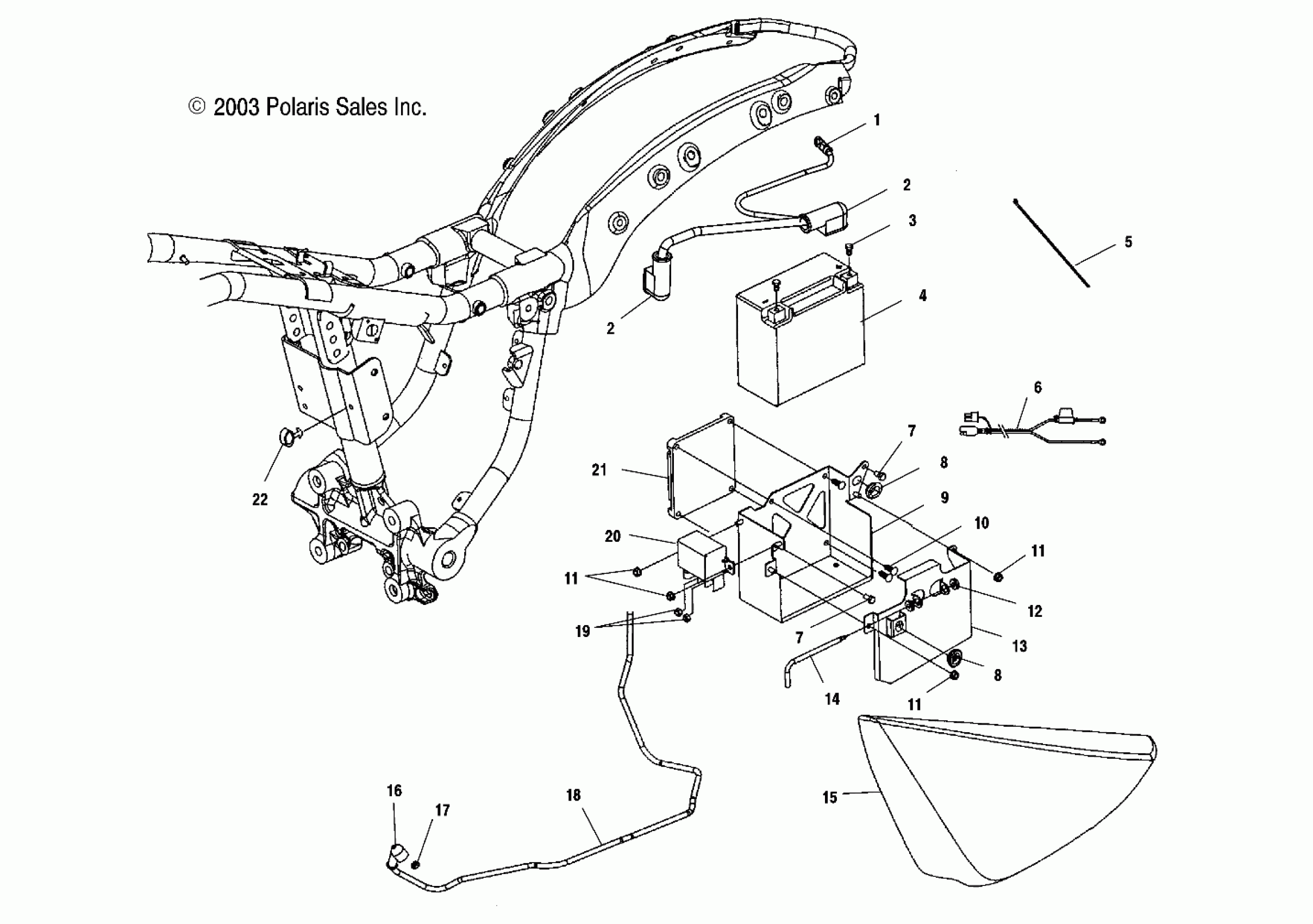

Polaris VICTORY VEGAS ALL OPTIONS - V04GB16/NC16 ELECTRICAL, ECM/BATTERY BOX/LH SIDE COVER - V04GB16/NC16/ALL OPTIONS (4989548954C03) Diagram
#
Description
Price
1
Cable, Battery, Positive
2461214
$27.94
2
BOOT,BTTRY CABLE,RED,POS
5411570
$7.19
2
BOOT,BTTRY CABLE,RED,POS
5411570
$7.19
3
BATTERY BOLT KIT
2201357
$11.19
4
Battery
4010466
$123.54
5
CABLE-TIE,DIA12-50MM,WTHR-RES. [8 Inch]
7080138
$2.41
6
Harness, Charging
2461006
$44.99
7
SCREW
7517438
Unavailable
7
SCREW
7517438
Unavailable
8
GROMMET-SIDE COVER
5433833
$4.23
8
GROMMET-SIDE COVER
5433833
$4.23
9
PAD-BATTERY
5810290
$7.27
9
Box, Battery
1014477-067
$61.90
10
Clip, Plastic
7670141
$4.79
11
Nut
7710495
$4.79
11
Nut
7710495
$4.79
11
Nut
7710495
$4.79
12
Grommet
5412322
$1.98
13
Cover, Battery
1014071
$40.48
14
Wrench, Cruiser, Phillips
5334217
$8.17
15
Cover, Side, LH, Black
5434595-266
Unavailable
15
Blue
5434595-341
Unavailable
15
Red
5434595-342
Unavailable
15
Silver
5434595-354
Unavailable
15
Red/Silver
5434595-1168
$338.08
15
Cosmic Sun Burst/Silver
5434595-1169
Unavailable
15
Purple Thunder/Silver/Flames
5434595-1170
Unavailable
15
Sonic Blue/Hot Rod Flames
5434595-1171
Unavailable
15
Black Cherry
5434595-1183
Unavailable
16
Boot, Terminal Insulator, Black
5412343
$5.56
17
NUT, FLEXLOC
7547091
Unavailable
18
Cable, Starter
2461106
$23.02
19
NUT
7547270
$3.99
20
SOLENOID, STARTER [SEE ELECTRICAL PG. C8, REF. 5]
-------
Unavailable
21
ECM, Programmed NOTE: Refer to Victory Diagnostic Software Users Guide for appropriate calibration instructions.
4010916
$669.99
22
CLIP, SNAP-IN
7080756
$4.79
