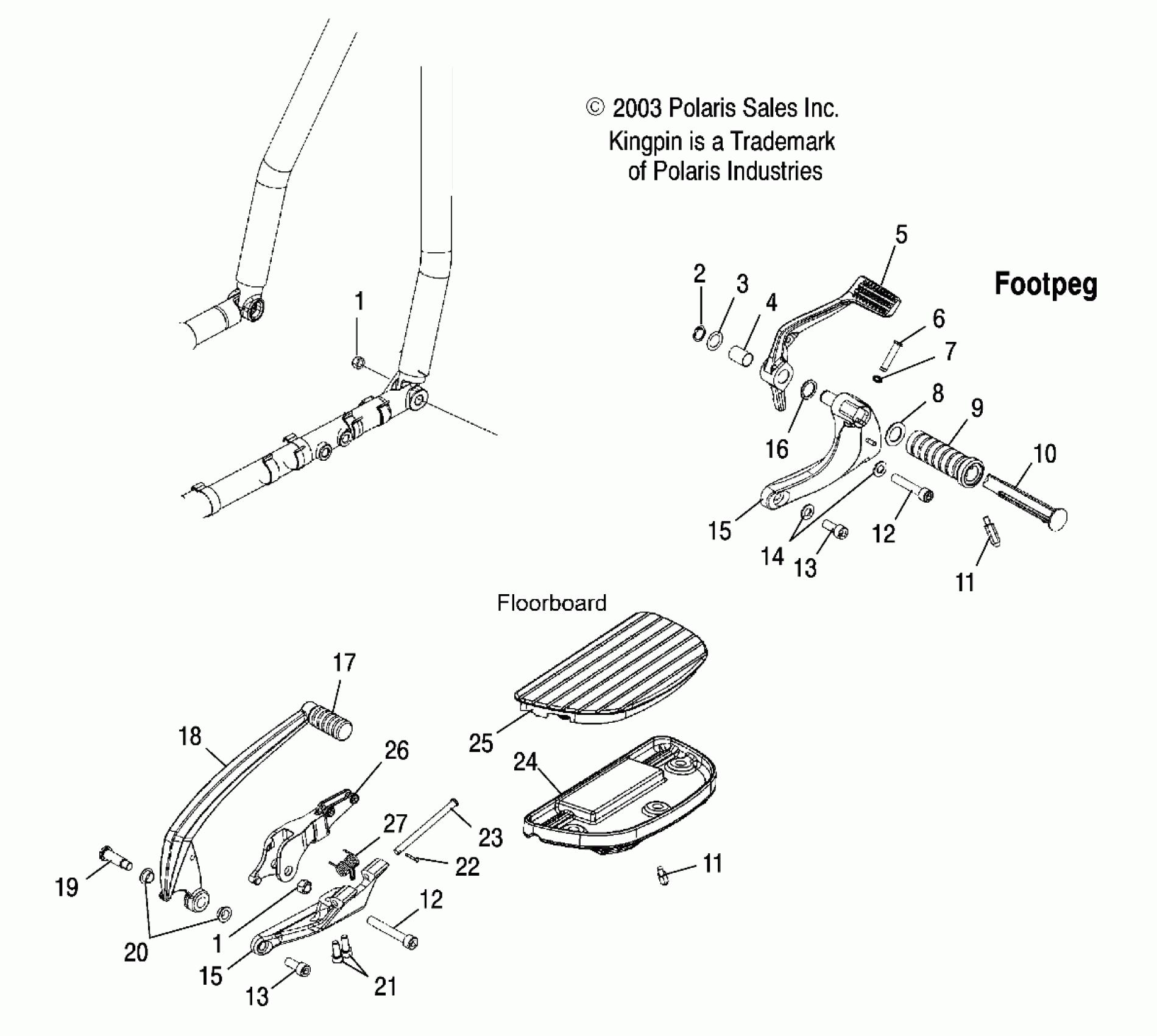

Polaris VICTORY VEGAS ALL OPTIONS - V04GB16/NC16 CHASSIS, R.H. FOOTPEG/FLOORBOARD/BRAKE - V04GB16/NC16/ALL OPTIONS (4989548954A07) Diagram

#

Description
Price

1

NUT

7547039

$4.76

1

NUT

7547039

$4.76

2

RING, RETAINING, EXTERNAL

7710499

$7.14

3

WASHER, FLAT

7556075

$11.33

4

BEARING-SHIFT PEDAL

3514335

Unavailable

5

Pedal, Brake Lever, Silver

5133525-385

Unavailable

5

Pedal, Brake Lever, Chrome

5133525-156

$370.94

6

Pin, Pivot

7661167

$7.94

7

Ring, Retaining

7710545

$1.98

8

Washer, Flat

7556241

Unavailable

9

PAD, FOOTPEG

5412256

$20.22

10

Footpeg, CC, RH

5133526-411

Unavailable

10

Footpeg, CC, Chrome, RH

5133526-156

Unavailable

11

FEELER, FOOTPEG

5133539

Unavailable

11

FEELER, FOOTPEG

5133539

Unavailable

12

SCREW

7518146

$10.32

12

SCREW

7518146

$10.32

13

SCREW

7518101

$7.94

13

SCREW

7518101

$7.94

14

WASHER, FLAT

7556234

$3.17

15

Support, Footpeg, Silver, RH

5133529-385

$237.30

15

Support, Footpeg, Chrome, RH

5133529-156

$269.84

15

Support, Floorboard, RH

5133864-385

$266.49

15

Support, Footpeg, Silver, RH

5133529-385

$237.30

15

Support, Footpeg, Chrome, RH

5133529-156

$269.84

15

Support, Floorboard, RH

5133864-385

$266.49

16

WASHER, WAVE

7556273

$2.38

17

PAD, FOOTPEG

5412256

$20.22

18

Pedal, Brake Lever

5134178-410

$246.03

19

Screw, Brake Pivot

7517715

$48.00

20

BUSHING, PEDAL

5020904

$5.22

21

SCREW

7517410

$10.99

22

PIN, COTTER

7661094

$5.56

23

PIN, FLOORBOARD SUPPORT

7661095

$0.99

24

Floorboard

5134061-425

$214.99

25

Pad, Floorboard

5412456

$44.51

26

Support, Brake Pedal

5134199-385

$139.68

27

Spring, Floorboard Support

7041623

$32.37
