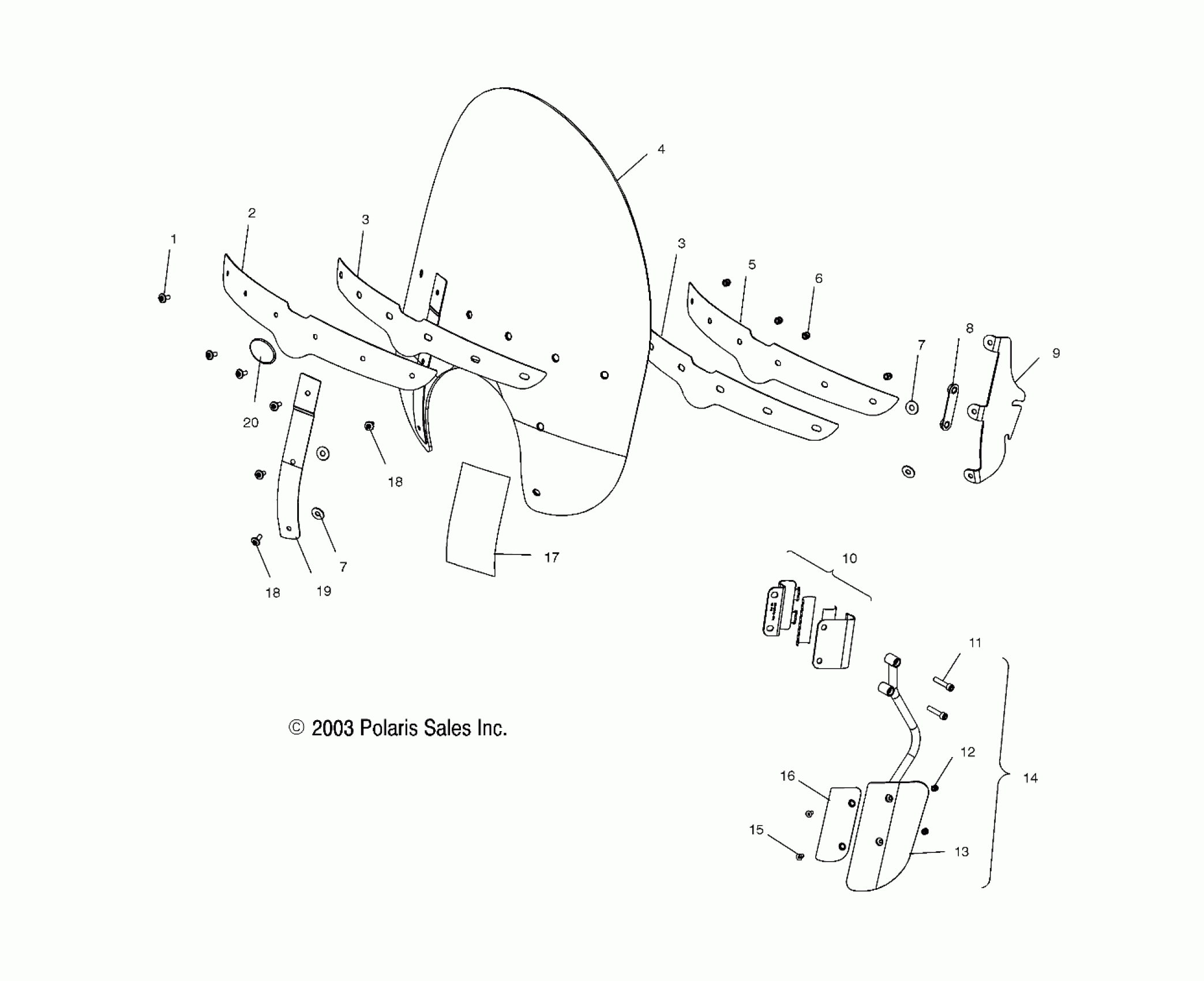

Polaris VICTORY VEGAS ALL OPTIONS - V04GB16/NC16 BODY, WINDSHIELD - V04GB16CA/CB/CC/CE/CG/CJ/CK/CL/DA/DB/DC/DE/DG/DJ/DK/DL/LA/LB/LC/LE/LG/LJ/LK/LL/UA/UB/UC/UE/UG/UJ/UK/UL (4989548954B09) Diagram

#

Description
Price

1

Screw

7518090

$3.43

2

Bracket, Front, Windshield, Top

5245590

$118.99

3

Pad, Windshield, Top, Front/Rear

5812260

Unavailable

3

Pad, Windshield, Top, Front/Rear

5812260

Unavailable

4

Windshield

5434755

Unavailable

5

Bracket, Rear, Windshield, Top

5245591

$108.99

6

NUT-ACORN,M6,SS,DIN 1587

7547115

Unavailable

7

Washer, Flat

7556221

$0.60

7

Washer, Flat

7556221

$0.60

8

Plate, Nut

1013984

Unavailable

9

Bracket, Windshield, Rear, LH

5246543

Unavailable

9

Bracket, Windshield, Rear, RH

5246544

Unavailable

10

Asm., Clamp

1013985

$216.99

11

SCREW

7518143

$19.99

12

NUT-ACORN,M6,SS,DIN 1587

7547115

Unavailable

13

Deflector, LH

5434777

Unavailable

13

Deflector, RH

5434778

Unavailable

14

Asm., Deflector, Lower, LH

1014028

Unavailable

14

Asm., Deflector, Lower, RH

1013986

$364.99

15

SCREW

7517754

Unavailable

16

Plate, Deflector, Front, LH

5245628

$45.24

16

Plate, Deflector, Front, RH

5245629

$43.65

17

DECAL, WARN/CAUT/CLN, WINDSHIELD

7079506

Unavailable

18

Screw

7518089

$8.97

18

Screw

7518089

$8.97

19

Bracket, Front, Windshield, Right

5245589

$72.99

19

Bracket, Front, Windshield, Left

5245588

Unavailable

20

Badge, Windshield, Stamp Silver

7079671

Unavailable
