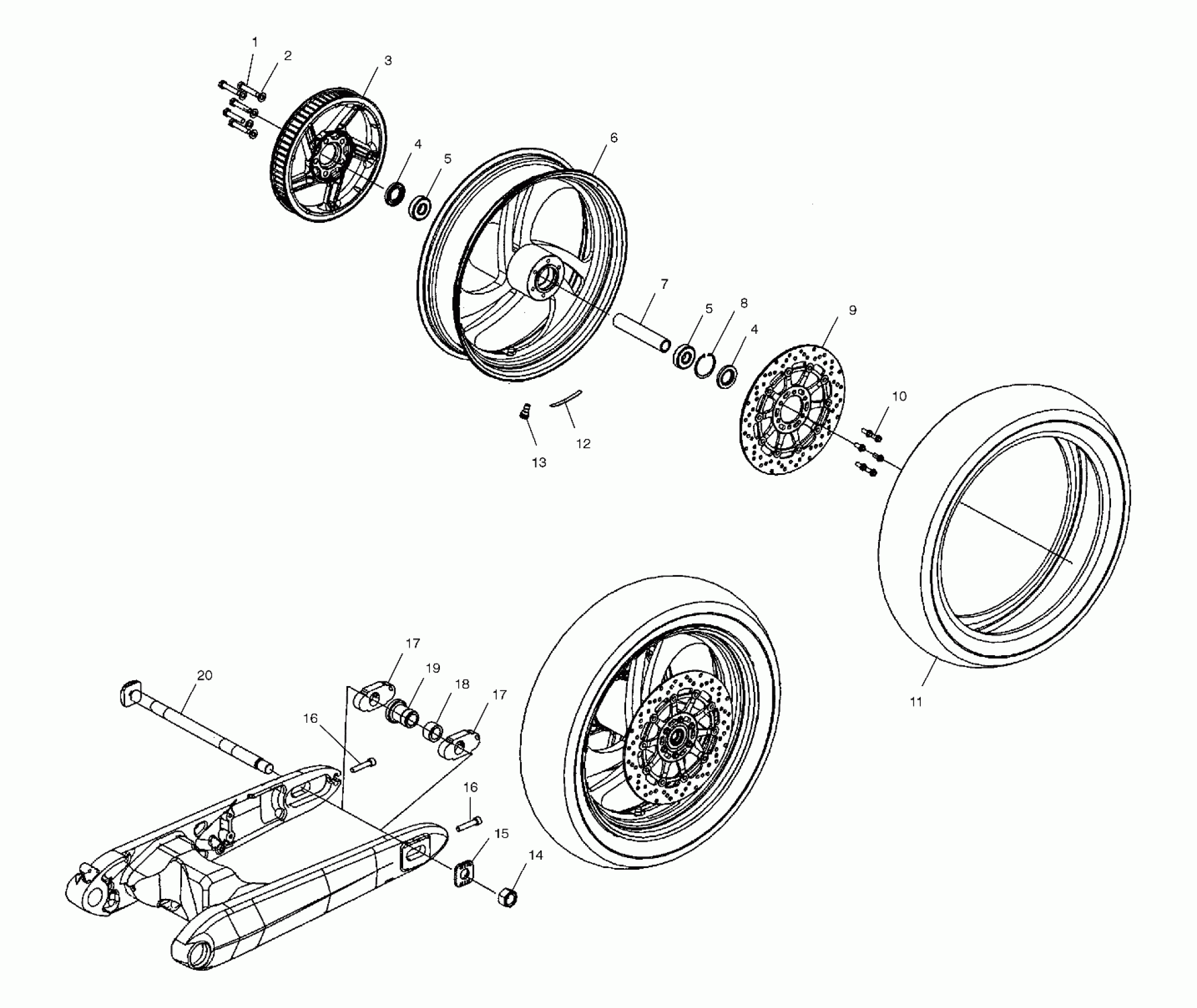

Polaris VICTORY VEGAS ALL OPTIONS - V03GB16 WHEELS, REAR (BILLET) - V03GB16/ALL OPTIONS (4983688368B01) Diagram

#

Description
Price

1

Screw

7518044

$6.19

2

WASHER, FLAT

7556234

$3.17

3

Asm., Sprocket, 64T

1341448

Unavailable

4

SEAL

3610094

$31.75

4

SEAL

3610094

$31.75

5

BEARING, BALL

3514405

$19.84

5

BEARING, BALL

3514405

$19.84

6

Asm., Wheel, Billet, Rear [Incl. 4-8,12,13]

1520560

$1,649.99

7

Spacer

5334138

$61.89

8

Ring, Retaining

7710526

$10.32

9

Rotor, Brake, Floating

1910623

$349.99

10

Screw

7518071

Unavailable

11

Tire, Rear

5412264

$319.99

12

Weight, Balance

1520507

Unavailable

13

Valve, Rim

1520232

$3.17

14

NUT

7547226

$23.81

15

Washer, Indicator, Axle

5245087-236

$15.70

16

SCREW

7518178

Unavailable

16

SCREW

7518178

Unavailable

17

Mount, Axle, Adjustment

5133481

$27.94

17

Mount, Axle, Adjustment

5133481

$27.94

18

Spacer, Bearing

5334139

$13.49

19

Spacer, RH

5133503

$19.05

20

Shaft, Spindle

1013926

Unavailable
