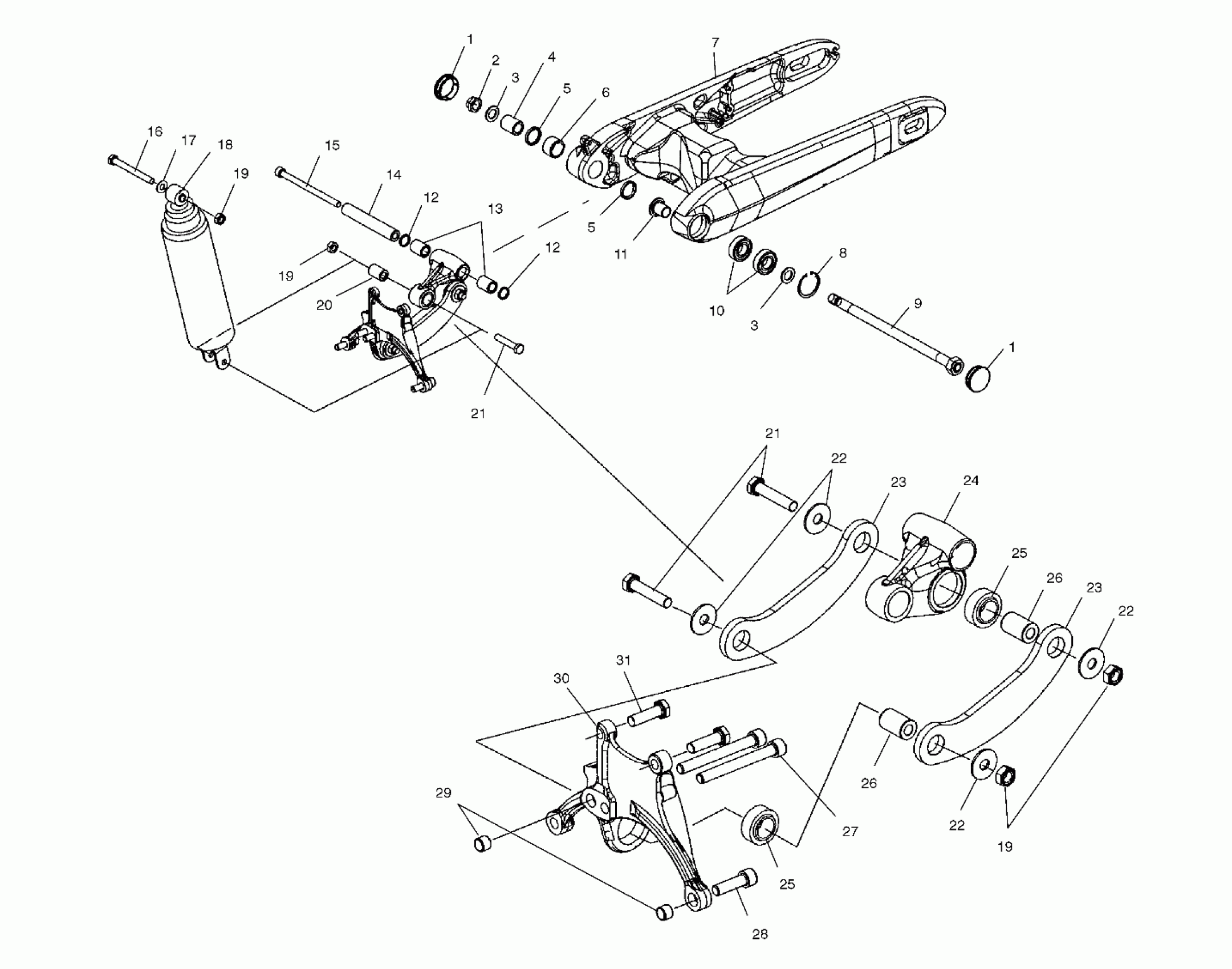

Polaris VICTORY VEGAS ALL OPTIONS - V03GB16 SUSPENSION, REAR and SWING ARM - V03GB16/ALL OPTIONS (4983688368A04) Diagram

#

Description
Price

1

Cap

5434637

Unavailable

1

Cap

5434637

Unavailable

2

Nut, FLEXLOC

7547048

Unavailable

3

WASHER, FLAT

7556236

Unavailable

3

WASHER, FLAT

7556236

Unavailable

4

Bushing

5133475

Unavailable

5

SEAL

3610096

Unavailable

5

SEAL

3610096

Unavailable

6

BEARING

3514413

Unavailable

7

Asm., Swing Arm w/Bearings, Silver

1014345-385

$989.99

8

RING, RETAINING

7670149

Unavailable

9

Shaft, Swing Arm Pivot

1013916

$55.56

10

BEARING, BALL

3514414

Unavailable

11

Bushing

5133474

$59.52

12

SEAL

3610095

Unavailable

12

SEAL

3610095

Unavailable

13

BEARING, NEEDLE

3514411

Unavailable

14

Bushing

5133715

$57.14

15

Screw

7518161

$6.98

16

SCREW

7518206

Unavailable

17

Washer, Flat

7556155

$5.22

18

Shock

1541817

$384.99

19

Nut

7547223

$12.30

19

Nut

7547223

$12.30

19

Nut

7547223

$12.30

20

Bearing

3514412

Unavailable

21

SCREW

7517946

Unavailable

21

SCREW

7517946

Unavailable

22

Washer, Flat

7556260

Unavailable

22

Washer, Flat

7556260

Unavailable

22

Washer, Flat

7556260

Unavailable

23

Link, Suspension Strap

5247323

$34.92

23

Link, Suspension Strap

5247323

$34.92

24

Link, Suspension Pivot

5133808-067

$188.10

25

Bearing

3514439

Unavailable

25

Bearing

3514439

Unavailable

26

Shaft, Rocker Arm

5133807

$36.41

26

Shaft, Rocker Arm

5133807

$36.41

27

SCREW

7518202

Unavailable

28

SCR-SH-M10X1.5X35 8.8 ZPD D204

7518032

Unavailable

29

DOWEL

7663008

$5.27

30

Mount, Minor Pivot

5133827-067

$262.36

31

SCREW

7517827

$6.39
