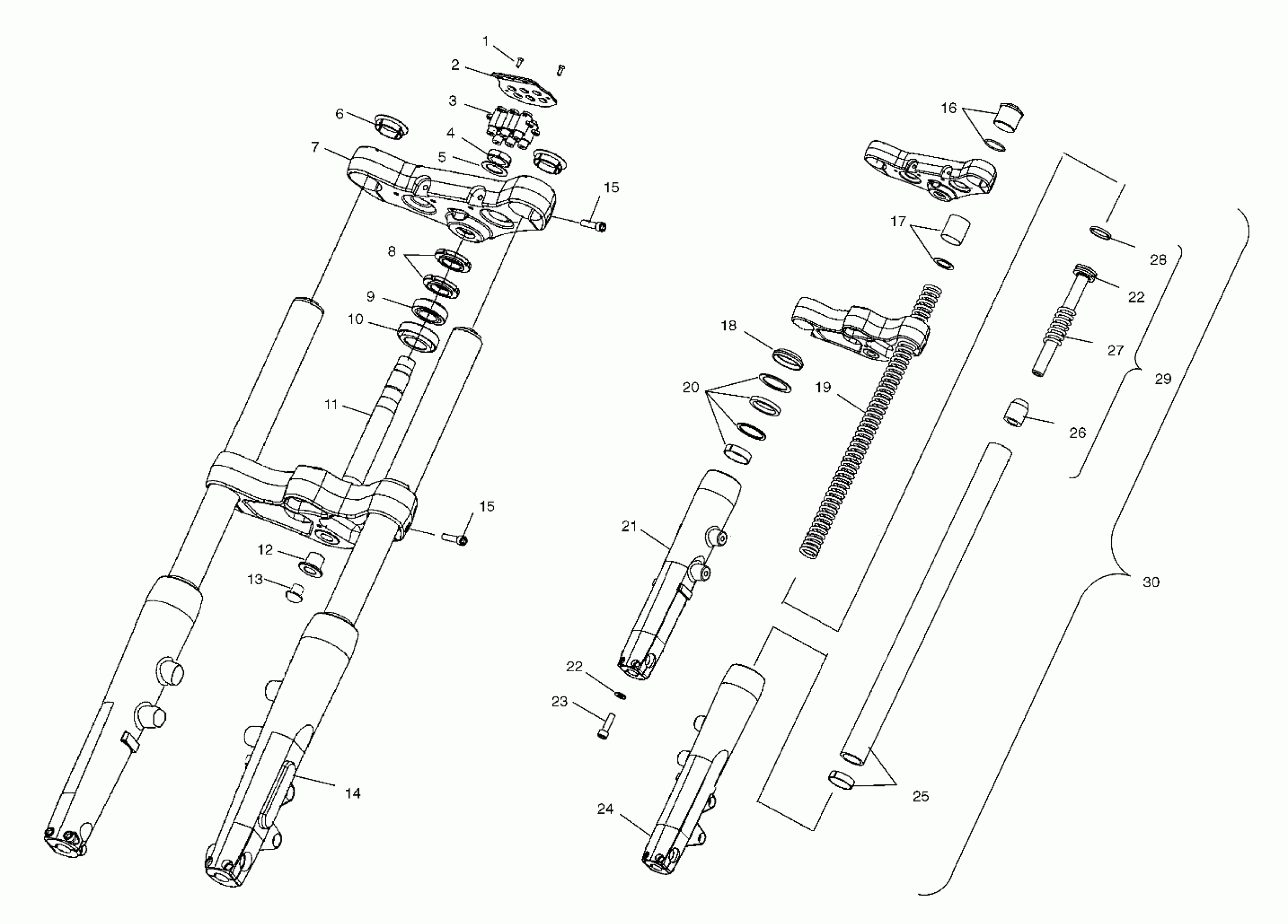

Polaris VICTORY VEGAS ALL OPTIONS - V03GB16 SUSPENSION, FRONT FORKS and CLAMP ASM. - V03GB16/ALL OPTIONS (4983688368A09) Diagram

#

Description
Price

1

SCREW

7518144

$7.14

2

Bezel

5434683

Unavailable

3

Bulb, 2.3W

4010760

$6.99

3

Harness, Indicator Light (Incl. Bulbs)

2461094

Unavailable

3

Housing, Indicator Light, Oil/Turn/Fuel

5435209

$18.10

3

Housing, Indicator Light. Neut/Hi/Eng.

5435210

$18.10

4

Nut, Steering Post, Top

5133598

$18.25

5

WASHER

7556246

$4.76

6

CAP

5132481-156

$11.32

7

Asm., Bracket, Upper [Incl. 15]

1821287-411

Unavailable

8

Nut, Steering Post

5133049

Unavailable

9

Bearing

3514417

$31.75

10

BEARING

3514416

$35.71

11

Asm., Bracket, Lower

1821288-411

$480.94

12

Cap, Steering Stem

5412347

Unavailable

13

Plug, PVC

5433581

Unavailable

14

REFLECTOR, AMBER

5434552

$32.37

15

Screw

7518209

Unavailable

15

Screw

7518209

Unavailable

16

KIT, CAP W/O-RING

2202507

$44.51

16

O-RING

5412452

Unavailable

16

Nut [Cap]

5133690

Unavailable

17

KIT, SPACER, PRELOAD

2202499

Unavailable

18

SEAL, FORK

5412309

$27.78

19

SPRING, COMPRESSION

7042270

$121.41

20

Kit, Seals Bushing (Incl. 18)

2202505

Unavailable

21

Kit, Slider Leg, RH [Incl. 18,20]

2202503

$734.99

22

WASHER

7556390

Unavailable

22

WASHER

7556390

Unavailable

23

SCREW

----

Unavailable

24

KIT, SLIDER LEG, LH

2202502

$734.99

25

Kit, Asm., Tube [Incl. 22,23,26]

2202504

$659.99

26

ASM., OIL LOCK

----

Unavailable

27

Spring, Rebound

7042271

Unavailable

28

RING, DAMPER

5435151

$1.98

29

Kit, Damper Rod/Segment [Incl. 22,23,26,28]

2202506

$111.10

30

Asm., Fork Leg, LH [Incl. 17-23]

1821285-411

$874.99

30

Asm., Fork Leg, RH [Incl. 17-23]

1821286-411

Unavailable
