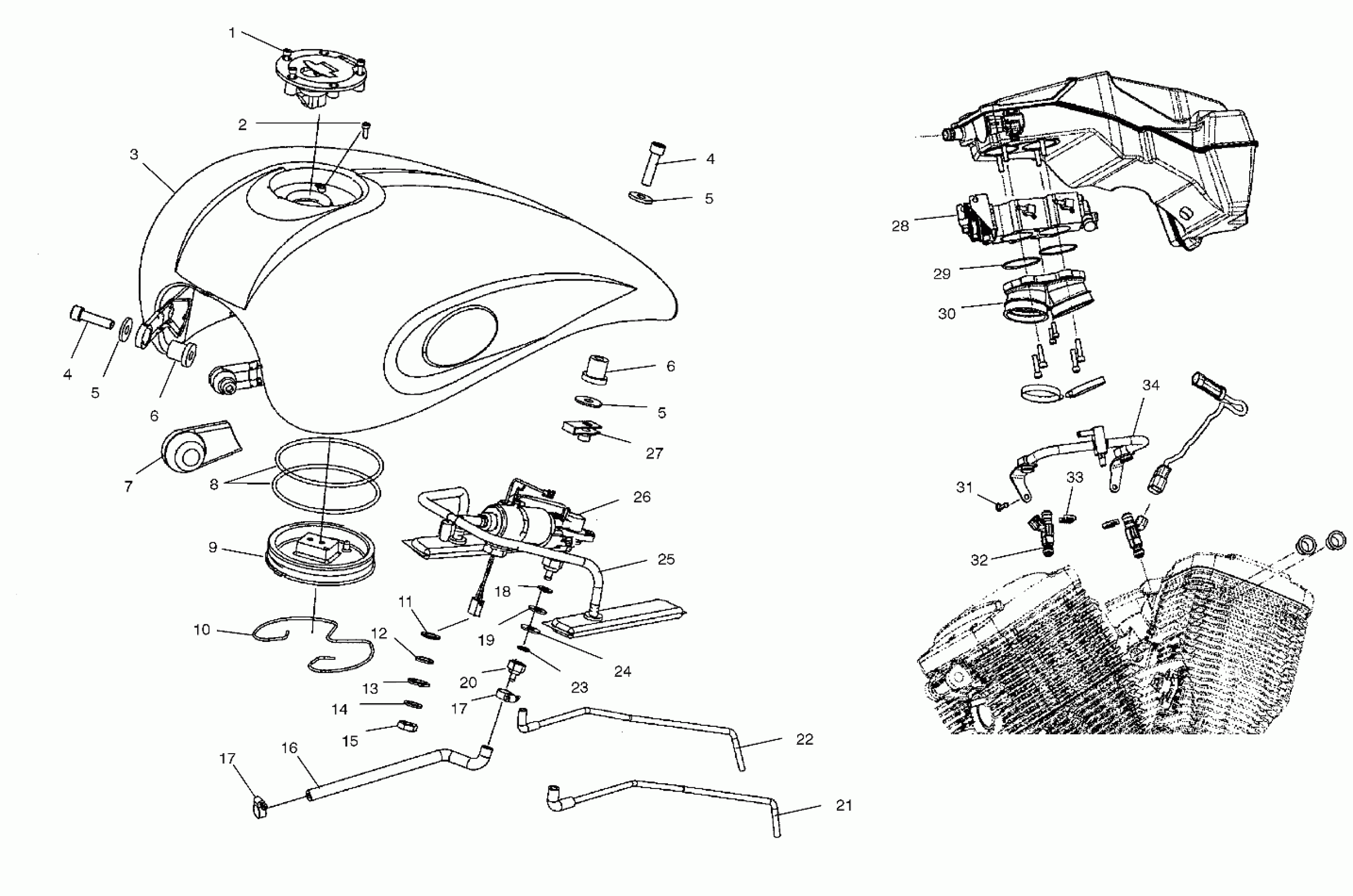

Polaris VICTORY VEGAS ALL OPTIONS - V03GB16 FUEL SYSTEM, FUEL TANK, LINES and THROTTLE BODY - V03GB16/ALL OPTIONS (4983688368A10) Diagram

#

Description
Price

1

SCREW

7518086

$5.56

2

SCREW

7517845

$5.56

3

Tank, Fuel, Spine, Black

1014754-266

Unavailable

3

Tank, Fuel, Spine, Blue

1014754-341

Unavailable

3

Tank, Fuel, Spine, Red

1014754-342

Unavailable

3

Tank, Fuel, Spine, Silver

1014754-354

Unavailable

3

Tank, Fuel, Spine, Yellow

1014754-388

$1,504.99

3

Tank, Fuel, Spine, Tribal

1014754-423

$1,514.99

4

SCREW

7517525

$4.35

4

SCREW

7517525

$4.35

5

Washer, Flat

7556243

$10.56

5

Washer, Flat

7556243

$10.56

5

Washer, Flat

7556243

$10.56

6

Bushing, Flange

5412262

$21.27

6

Bushing, Flange

5412262

$21.27

7

COVER, MOUNT, LH

5412414

$32.37

7

COVER, MOUNT, RH

5412415

$32.37

8

O-Ring

5412071

Unavailable

9

Plug

5133613

Unavailable

10

Ring, Retaining

7710515

Unavailable

11

Grommet

5412096

$12.70

12

Grommet

5412095

Unavailable

13

Washer

7556193

Unavailable

14

Washer

7556192

$4.76

15

Nut

7547186

$4.76

16

Hose

5412332

Unavailable

17

CLAMP, HOSE

7081151

$7.14

17

CLAMP, HOSE

7081151

$7.14

18

Grommet

5412094

$12.70

19

Grommet

5412093

Unavailable

20

Fitting

2520251

Unavailable

21

Line

5434782

$83.33

22

Line, Water Vent

5434781

Unavailable

23

O-Ring

5411869

Unavailable

24

Washer

7556131

$3.17

25

Asm., Fuel Line, Filter

2520322

Unavailable

26

Thermistor, Fuel Pump [Level Sensor]

2520678

Unavailable

26

Pump, Fuel

2520284

Unavailable

27

U-NUT

7547233

$10.32

28

Asm., Throttle Body

1253363

Unavailable

28

Cap, Fitting

5411886

Unavailable

29

O-Ring

5412259

$1.59

30

Adapter, Throttle Body

1253335

$159.99

31

SCREW

7517405

$10.32

32

O-RING-BOSCH,EV-14,UPPER, BLUE

1500198

$11.90

32

Injector, Fuel

1253405

Unavailable

33

Clip, Injector Clocking

7670129

Unavailable

34

Asm., Fuel Rail

2520207

Unavailable
