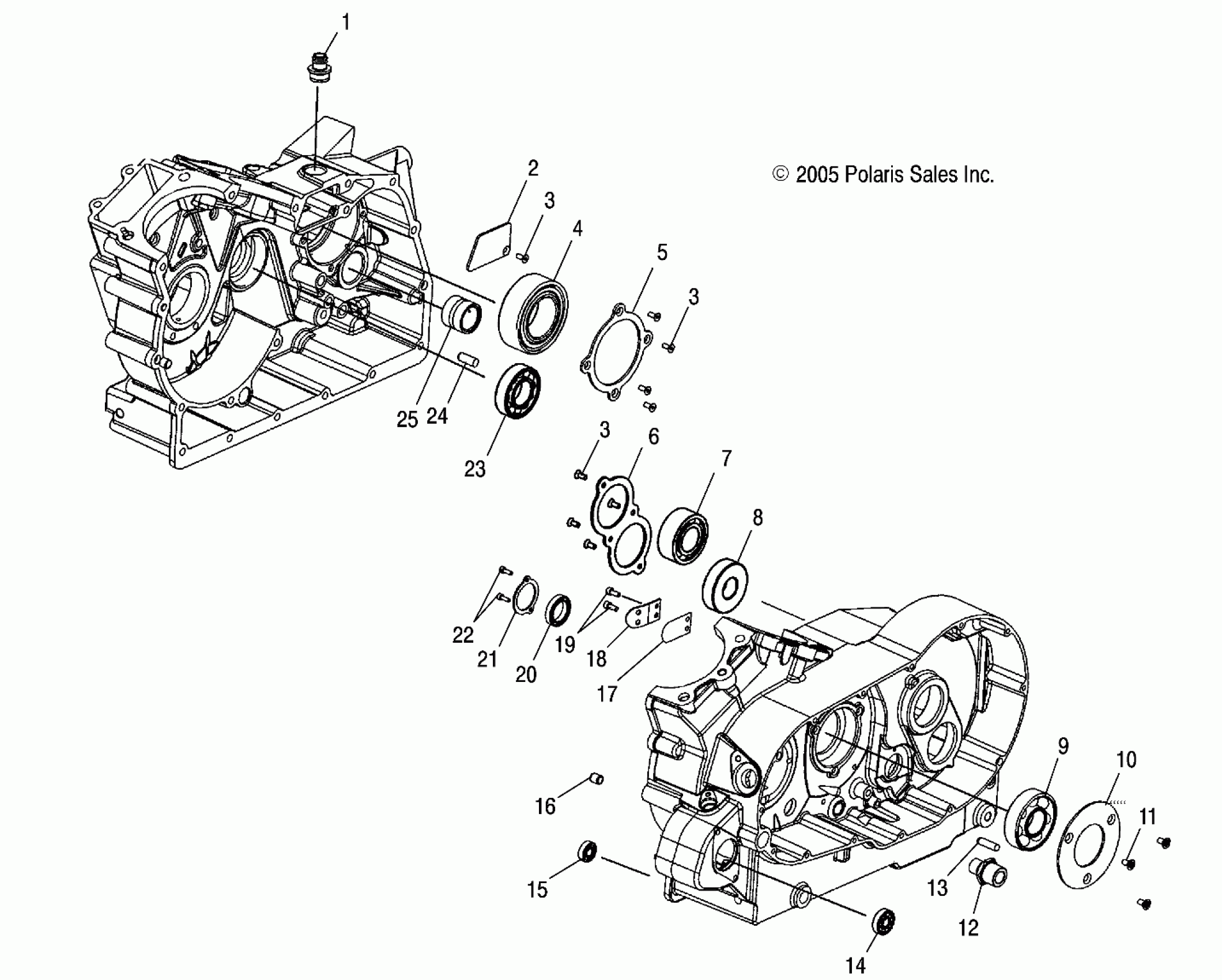

Polaris VICTORY VEGAS ALL OPTIONS - V03GB16 ENGINE, CRANKCASE BEARINGS - V03GB16/ALL OPTIONS (4999203439920343C11) Diagram

#

Description
Price

1

Fitting, Breather

5132270

Unavailable

2

PLATE, BREATHER BAFFLE

5131792

Unavailable

3

SCREW

7517255

$7.19

3

SCREW

7517255

$7.19

3

SCREW

7517255

$7.19

4

Bearing

3513515

Unavailable

5

Plate, Bearing Retaining [Main]

5211817

$10.81

6

Plate, Bearing Retaining

5211774

$10.81

7

Bearing, Ball, Double Row

3513524

Unavailable

8

Bearing, Ball

3513512

$21.81

9

Bearing, Ball

3514404

Unavailable

10

PLATE, RETAINING, BEARING [BALANCE]

5211773

Unavailable

11

SCREW

7517598

$11.33

12

ADAPTOR, SHIFT SHAFT

5132139

Unavailable

13

PIN, SOLID

7661101

Unavailable

14

BEARING, BALL

3513518

Unavailable

15

BEARING, BALL

3514313

Unavailable

16

Caplug

9810050

Unavailable

17

PLATE, REED VALVE

5131793

Unavailable

18

PLATE, REED BACKER

5131791

Unavailable

19

SCREW

7517276

$7.19

20

BEARING, BALL

3513511

Unavailable

21

PLATE, BEARING

5244477

Unavailable

22

SCREW

7517797

Unavailable

23

BEARING, BALL

3514426

$19.99

24

Pin, Solid

7661020

$9.99

25

Bearing

3584007

$48.00
