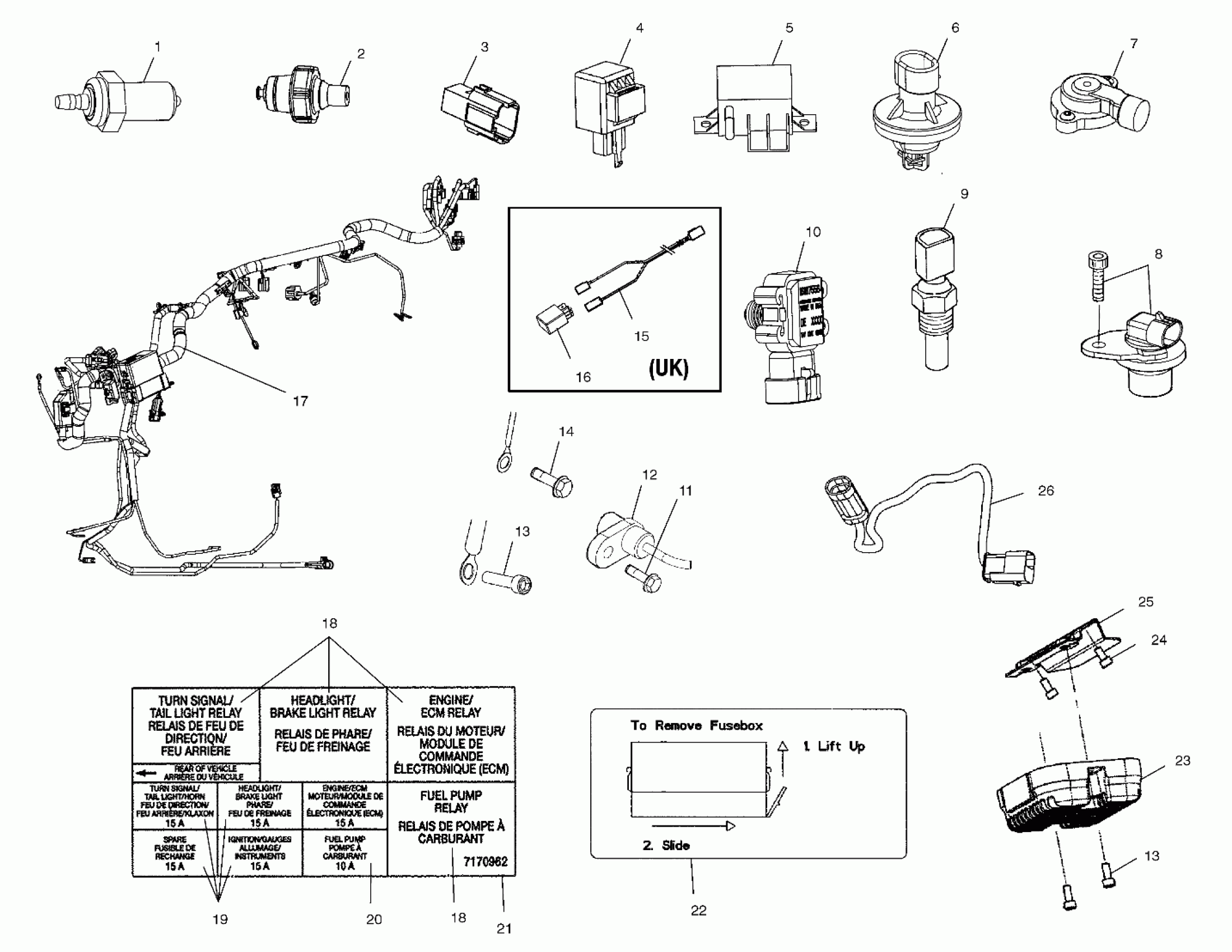

Polaris VICTORY VEGAS ALL OPTIONS - V03GB16 ELECTRICAL, HARNESSES, SENSORS and SWITCHES - V03GB16/ALL OPTIONS (4983688368B13) Diagram

#

Description
Price

1

Switch, Neutral Indicator

4110235

Unavailable

2

Switch, Oil Pressure

4010649

Unavailable

3

Diode

2410358

Unavailable

4

Relay, Flasher

2410338

$72.84

5

Relay, Starter

2410181

Unavailable

6

Sensor, Air Temperature

4040077

Unavailable

7

Sensor, Throttle Position

4010225

Unavailable

7

O-Ring

1500201

$2.87

8

SCREW

7517272

$7.19

8

Sensor, Crankshaft Position

4110217

Unavailable

9

Sensor, Engine Temperature

4040076

Unavailable

10

Sensor, MAP

4040078

Unavailable

11

SCREW

7518141

$4.79

12

Sensor, Vehicle Speed

4010766

$183.95

13

SCREW

7517272

$7.19

13

SCREW

7517272

$7.19

14

SCREW

7518140

Unavailable

15

Harness, Headlight, UK

2461207

Unavailable

16

Relay

4010945

Unavailable

17

Harness, Main Wire

2461083

Unavailable

18

Relay, Micro

2410331

$13.10

18

Relay, Micro

2410331

$13.10

19

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

20

FUSE-IGNITION,10 AMP

2434016

$4.79

21

Decal, Fuse Box

7170962

Unavailable

22

DECAL, FUSE BOX REMOVAL

7171031

Unavailable

23

Regulator, Voltage [Black]

2410337

Unavailable

23

Regulator, Voltage, Silver

2410329

$236.99

24

Screw

7517739

$9.59

25

Bracket, Voltage Regulator [Black]

1013510

$27.94

25

Bracket, Voltage Regulator, Silver

1013623

$41.27

26

Harness, Jumper, Fuel Injector

2461135

Unavailable
