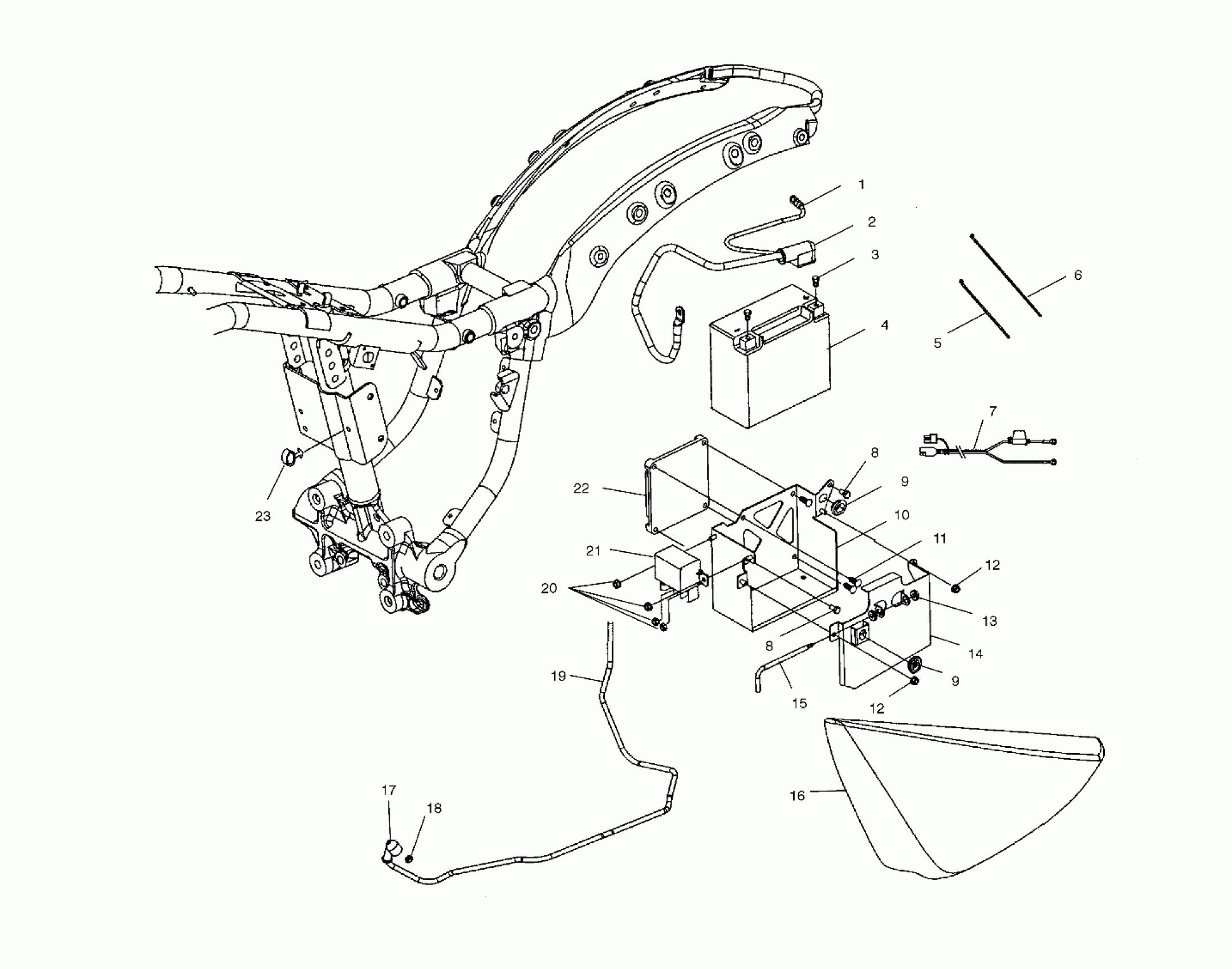

Polaris VICTORY VEGAS ALL OPTIONS - V03GB16 ELECTRICAL, ECM/BATTERY BOX/LH SIDE COVER - V03GB16/ALL OPTIONS (4983688368B09) Diagram

#

Description
Price

1

Cable, Battery, Positive

2461122

$22.22

2

BOOT,BTTRY CABLE,RED,POS

5411570

$7.19

3

BATTERY BOLT KIT

2201357

$11.19

4

Battery

4010466

$123.54

5

Strap, Cable Tie, 4 Inch

7080792

$3.99

6

CABLE-TIE,DIA12-50MM,WTHR-RES. [8 Inch]

7080138

$2.41

7

Harness, Charging

2461006

$44.99

8

SCREW

7517438

Unavailable

8

SCREW

7517438

Unavailable

9

GROMMET-SIDE COVER

5433833

$4.23

9

GROMMET-SIDE COVER

5433833

$4.23

10

PAD-BATTERY

5810290

$7.27

10

Box, Battery

1014070-067

$53.17

11

Clip, Plastic

7670141

$4.79

12

Nut

7710495

$4.79

12

Nut

7710495

$4.79

13

Grommet

5412322

$1.98

14

Cover, Battery

1014071

$40.48

15

Wrench, Cruiser, Phillips

5334217

$8.17

16

Cover, Side, LH, Black

5434595-266

Unavailable

16

Cover, Side, LH, Blue

5434595-341

Unavailable

16

Cover, Side, LH, Red

5434595-342

Unavailable

16

Cover, Side, LH, Yellow

5434595-388

Unavailable

16

Cover, Side, LH, Silver

5434595-354

Unavailable

16

Cover, Side, LH, Tribal

5434595-423

$357.13

17

Boot, Terminal Insulator, Black

5412343

$5.56

18

NUT, FLEXLOC

7547091

Unavailable

19

Cable, Starter

2461106

$23.02

20

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

21

RELAY, STARTER [SEE ELECTRICAL PG. B13, REF. 5]

-------

Unavailable

22

ECM, Programmed NOTE: Refer to Victory Diagnostic Software Users Guide for appropriate calibration instructions.

4010916

$669.99

23

CLIP, SNAP-IN

7080756

$4.79
