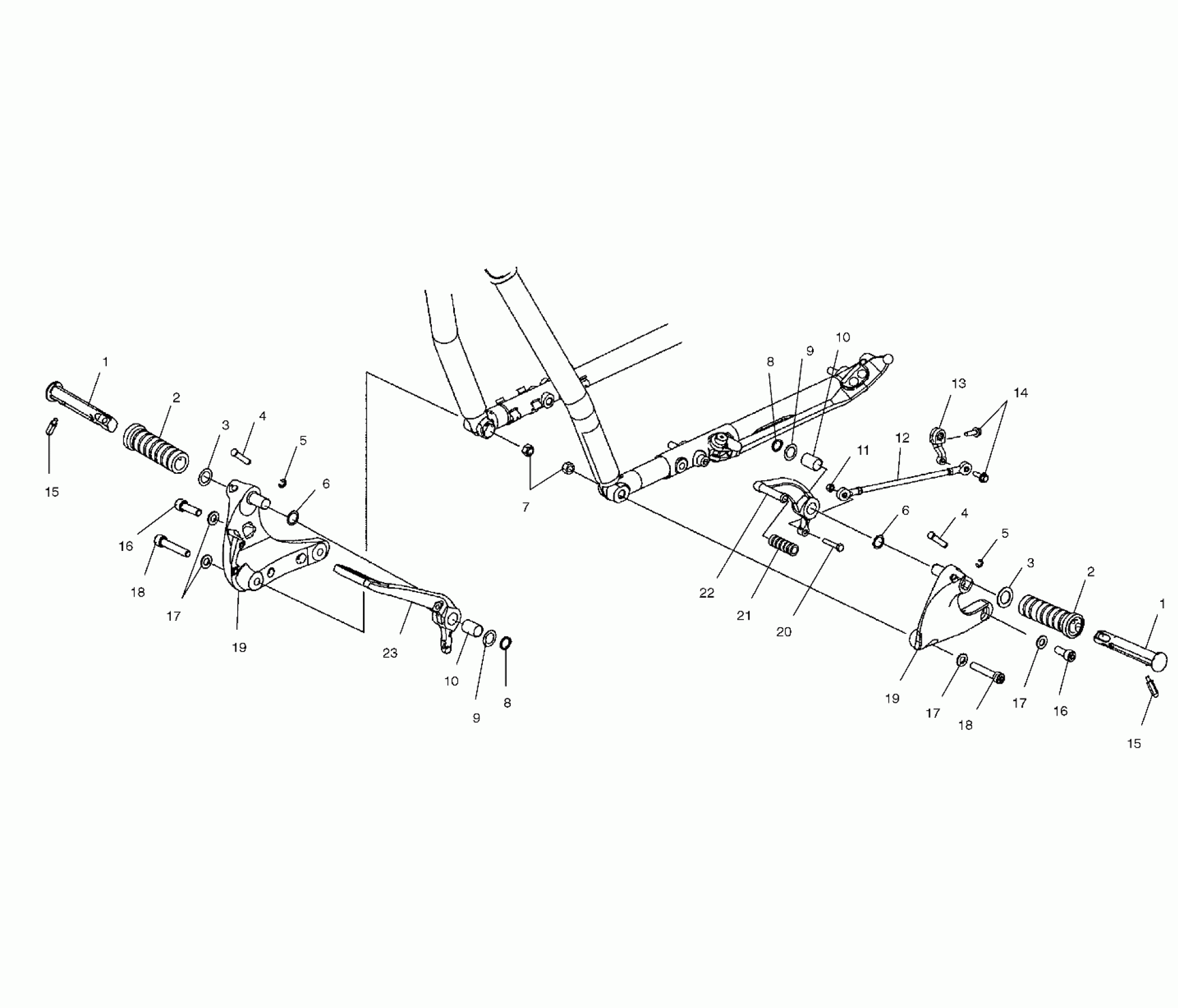

Polaris VICTORY VEGAS ALL OPTIONS - V03GB16 CHASSIS, FOOTREST and CONTROLS - V03GB16/ALL OPTIONS (4983688368A06) Diagram

#

Description
Price

1

Footpeg, CC, LH

5133540-411

$105.02

1

Footpeg, CC, LH, Chrome

5133540-156

Unavailable

1

Footpeg, CC, RH

5133526-411

Unavailable

1

Footpeg, CC, RH, Chrome

5133526-156

Unavailable

1

Footpeg, CC, LH

5133540-411

$105.02

1

Footpeg, CC, LH, Chrome

5133540-156

Unavailable

1

Footpeg, CC, RH

5133526-411

Unavailable

1

Footpeg, CC, RH, Chrome

5133526-156

Unavailable

2

PAD, FOOTPEG

5412256

$20.22

2

PAD, FOOTPEG

5412256

$20.22

3

Washer, Flat

7556241

Unavailable

3

Washer, Flat

7556241

Unavailable

4

Pin, Pivot

7661167

$7.94

4

Pin, Pivot

7661167

$7.94

5

Ring, Retaining

7710545

$1.98

5

Ring, Retaining

7710545

$1.98

6

WASHER, WAVE

7556273

$2.38

6

WASHER, WAVE

7556273

$2.38

7

NUT

7547039

$4.76

8

RING, RETAINING, EXTERNAL

7710499

$7.14

8

RING, RETAINING, EXTERNAL

7710499

$7.14

9

WASHER, FLAT

7556075

$11.33

9

WASHER, FLAT

7556075

$11.33

10

BEARING-SHIFT PEDAL

3514335

Unavailable

10

BEARING-SHIFT PEDAL

3514335

Unavailable

11

NUT

7547230

$9.52

12

ASM., SHIFTER LINKAGE

1013957

$93.08

13

LEVER, SHIFTER

5133530

$80.94

14

SCREW

7518141

$4.76

15

FEELER, FOOTPEG

5133539

Unavailable

15

FEELER, FOOTPEG

5133539

Unavailable

16

SCREW

7518101

$7.94

16

SCREW

7518101

$7.94

17

WASHER, FLAT

7556234

$3.17

17

WASHER, FLAT

7556234

$3.17

17

WASHER, FLAT

7556234

$3.17

18

SCREW

7518146

$10.32

18

SCREW

7518146

$10.32

19

Support, Footpeg, LH

5133527-385

Unavailable

19

Support, Footpeg, RH

5133529-385

$237.30

19

Support, Footpeg, LH

5133527-385

Unavailable

19

Support, Footpeg, RH

5133529-385

$237.30

20

SCREW

7518147

$4.76

21

Pad, Shift Pedal

5411364

$28.32

22

Pedal, Shift Lever

5133528-385

$178.08

23

Pedal, Brake Lever

5133525-385

Unavailable
