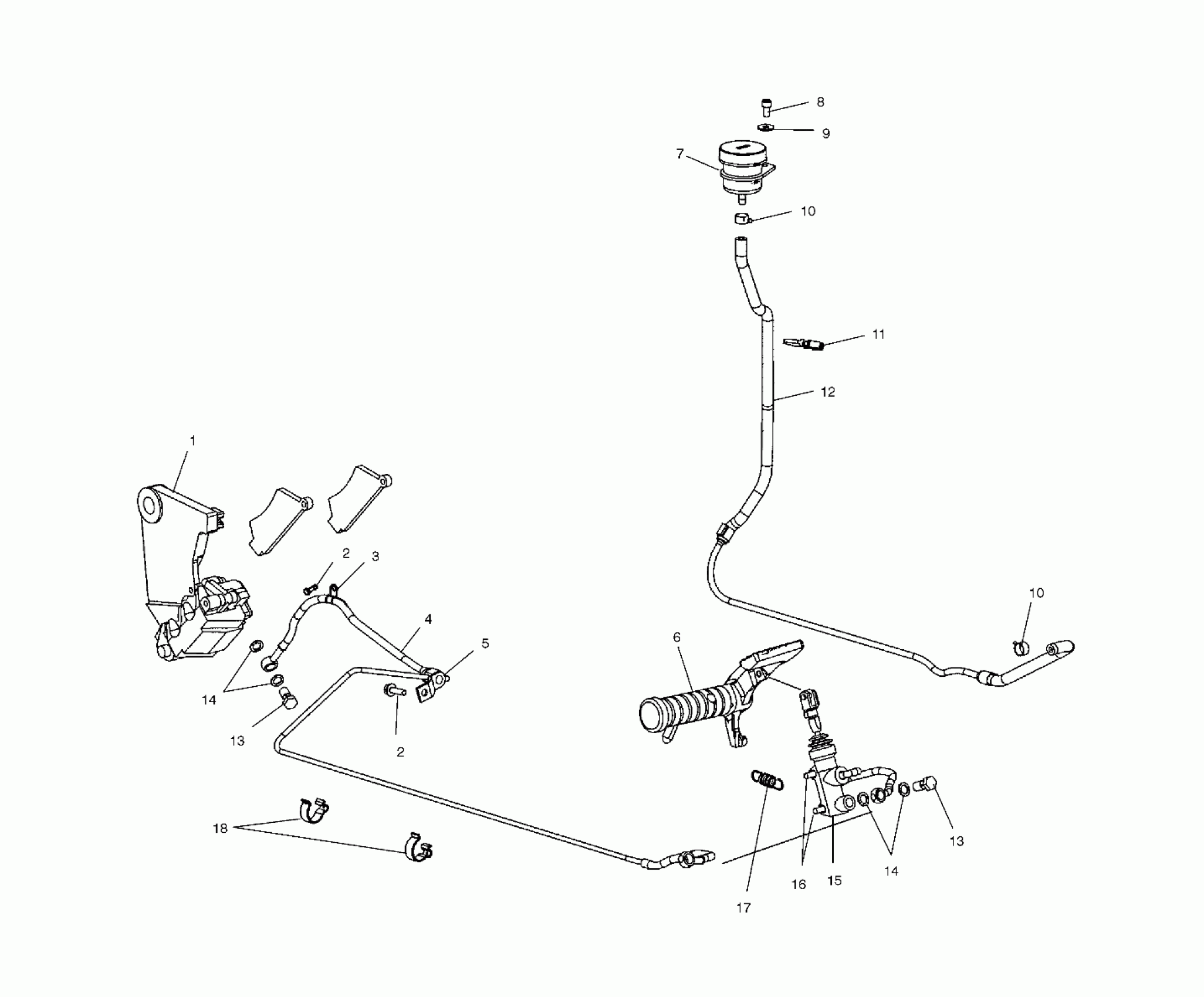

Polaris VICTORY VEGAS ALL OPTIONS - V03GB16 BRAKES, REAR - V03GB16/ALL OPTIONS (4983688368B06) Diagram

#

Description
Price

1

Kit, Bleeder Screw, Boot

2201173

$12.99

1

Kit, Boots, Caliper, Rear

2201174

Unavailable

1

Kit, Pin, Retainer, Spring, Clip

2201175

$21.81

1

Asm., Caliper, Rear

1910619

Unavailable

1

Kit, Brake Pad, Caliper, Rear

2202491

Unavailable

2

SCREW

7517704

$7.19

2

SCREW

7517704

$7.19

3

CLAMP-REAR BRAKE

7080983

$3.99

4

Hose

1910626

Unavailable

5

SWITCH, PRESSURE

4010372

Unavailable

6

PEDAL, BRAKE [SEE FOOTREST AND CONTROLS PG. A6, REF. 23]

-------

Unavailable

7

Reservoir

1930882

Unavailable

8

SCREW

7517405

$10.39

9

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

10

Clamp, Hose

7080904

Unavailable

10

Clamp, Hose

7080904

Unavailable

11

Dart

5433140

Unavailable

12

Hose

1910656

Unavailable

13

Bolt

1930848

Unavailable

13

Bolt

1930848

Unavailable

14

Seal, Stat - O

5410988

$4.84

14

Seal, Stat - O

5410988

$4.84

15

Cylinder, Master, Rear

1910620

$141.65

16

SCREW

7518141

$4.79

17

Spring, External, Brake Return

7042186

Unavailable

18

Clip, Brake Line [Black]

7081014

$6.98

18

Clip, Brake Line [Black]

7080945

$3.30

18

Clip, Brake Line, Silver

7081114

$5.40

18

Clip, Brake Line, Silver

7081113

$3.97
