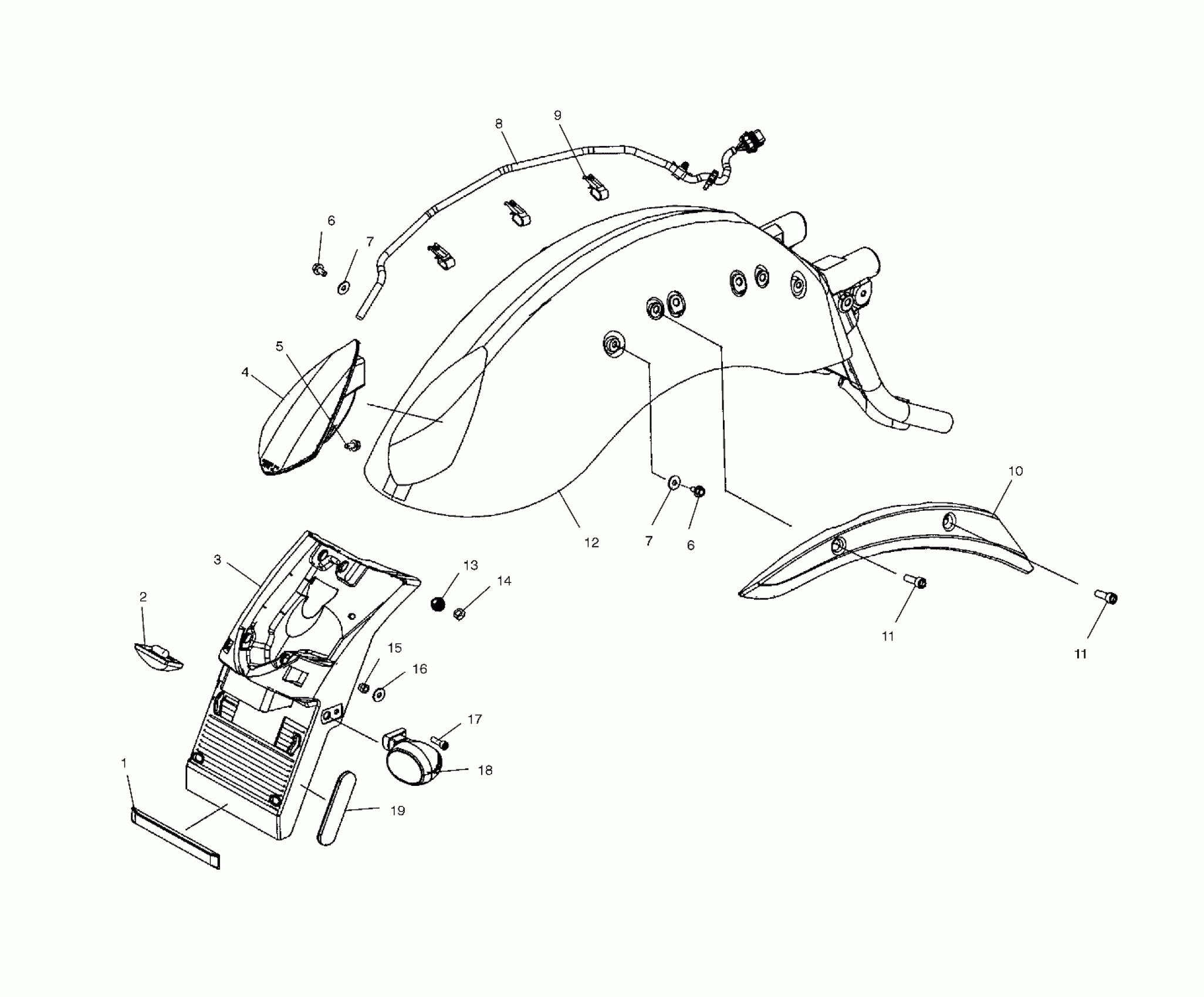

Polaris VICTORY VEGAS ALL OPTIONS - V03GB16 BODY, REAR FENDER and TAILLIGHT - V03GB16/ALL OPTIONS (4983688368B04) Diagram

#

Description
Price

1

ASM., REFLECTOR, RED

2670070

$9.91

2

HOUSING, LICENSE PLATE LIGHT

5132233

Unavailable

3

Bracket, License Plate

5434682

$53.17

4

Taillight

2410401

$262.21

5

Screw

7517690

$2.60

6

SCREW

7517438

Unavailable

6

SCREW

7517438

Unavailable

7

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

7

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

8

Harness, Rear

2461125

Unavailable

9

CLIP, ELECTRICAL

7080737

Unavailable

10

Cover, Frame, Rail, LH

5631319

Unavailable

10

Cover, Frame, Rail, RH

5631320

Unavailable

11

SCREW

7518084

Unavailable

11

SCREW

7518084

Unavailable

12

Fender, Rear, Black

1014064-266

Unavailable

12

Fender, Rear, Blue

1014064-341

$869.99

12

Fender, Rear, Red

1014064-342

$889.99

12

Fender, Rear, Yellow

1014064-388

$869.99

12

Fender, Rear, Silver

1014064-354

$909.99

12

Fender, Rear, Tribal

1014064-423

$869.99

13

Sleeve, Shouldered, M6

5133553

Unavailable

14

Nut

7710495

$4.79

15

NUT, NYLOK

7547106

$3.19

16

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

17

SCREW

7517305

$4.79

18

Bulb, Single Filament, 10W

4010742

$8.79

18

Signal, Turn, LH

2410333

Unavailable

18

Signal, Turn, RH

2410334

Unavailable

19

REFLECTOR, RED

5434624

Unavailable
