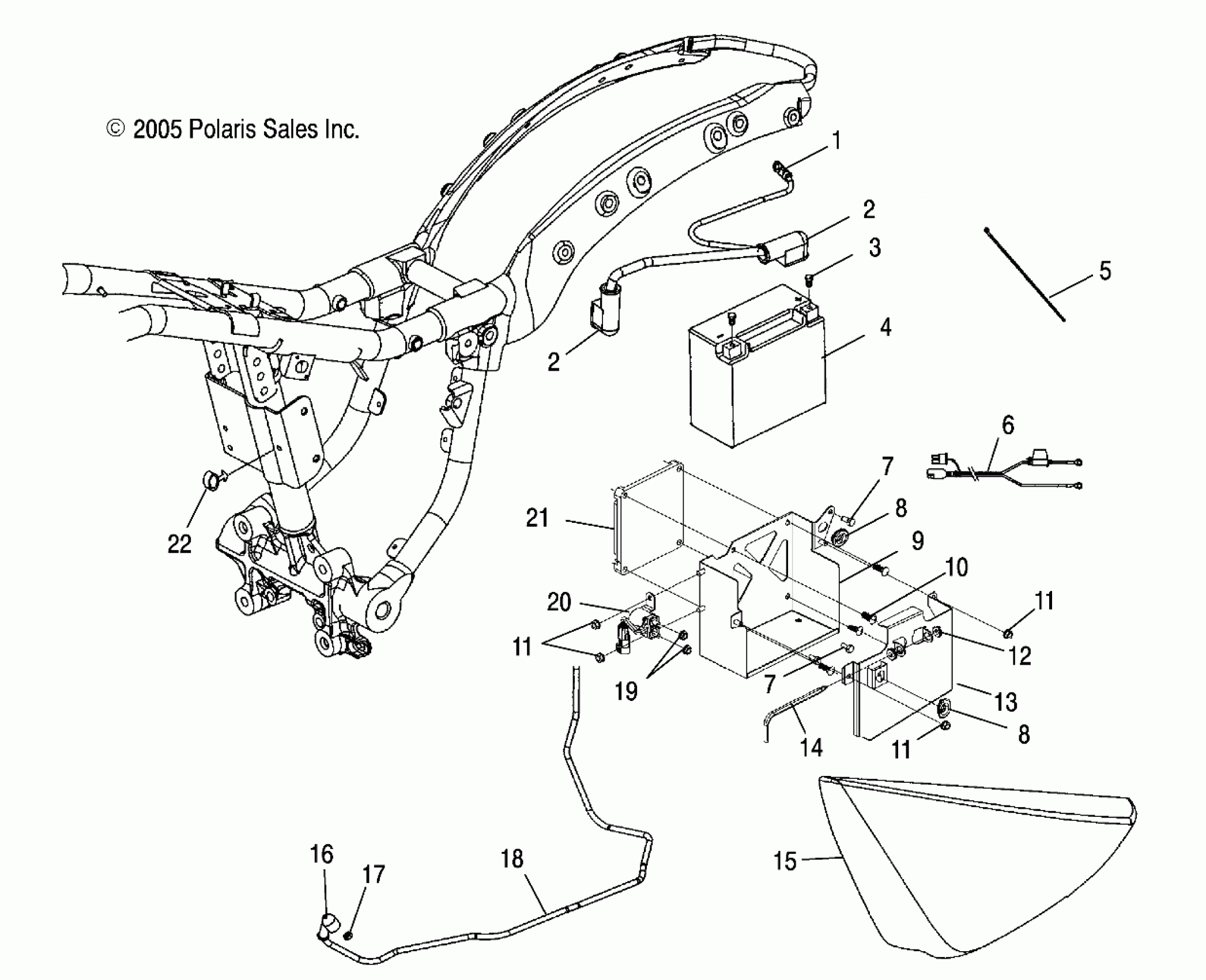

Polaris VICTORY VEGAS 8 BALL/VEGAS ALL OPTIONS - V06AB26CA ELECTRICAL, ECM/BATTERY BOX/SIDE COVER, L.H. - V06AB26/GB26 ALL OPTIONS (4999203359920335B13) Diagram

Description

Price

Cable, Battery, Positive [Include 2]

2461214

$27.94

BOOT,BTTRY CABLE,RED,POS

5411570

$7.27

BOOT,BTTRY CABLE,RED,POS

5411570

$7.27

BATTERY BOLT KIT

2201357

$11.11

Battery

4011374

$151.99

CABLE-TIE,DIA12-50MM,WTHR-RES. [8 Inch]

7080138

$2.41

Harness, Charging

2461006

$49.99

SCREW

7517438

$4.35

SCREW

7517438

$4.35

GROMMET-SIDE COVER

5433833

$4.21

GROMMET-SIDE COVER

5433833

$4.21

PAD-BATTERY

5810290

$7.27

Box, Battery

1014477-067

Unavailable

Clip, Plastic

7670141

$4.76

Nut

7710495

$5.22

Nut

7710495

$5.22

Nut

7710495

$5.22

Grommet

5412322

$1.98

Cover, Battery

1014512

Unavailable

Wrench, Cruiser, Phillips

5334438

$3.97

Cover, Side, LH, Black

5434595-266

Unavailable

Cover, Side, LH, SS Blue

5434595-1231

$144.84

Cover, Side, LH, Indy Red

5434595-293

$366.65

Cover, Side, LH, Yellow/T. Silver

5434595-1221

$338.08

Cover, Side, LH, Graphite/T. Silver

5434595-1220

$144.84

Cover, Side, LH, Nuc/FLM

5434595-1222

$144.84

Cover, Side, LH, Black/STP

5434595-1199

Unavailable

Boot, Terminal Insulator, Black

5412343

$5.56

NUT, FLEXLOC

7547091

Unavailable

Cable, Starter

2461106

$23.02

NUT

7547270

$3.97

SOLENOID,STARTER [See Electrical Pg. C3, Ref. 3]

----

Unavailable

ECM, Programmed NOTE: Refer to Victory Diagnostic Software Users Guide for appropriate calibration instructions.

4010916

$669.99

CLIP, SNAP-IN

7080756

$4.76
