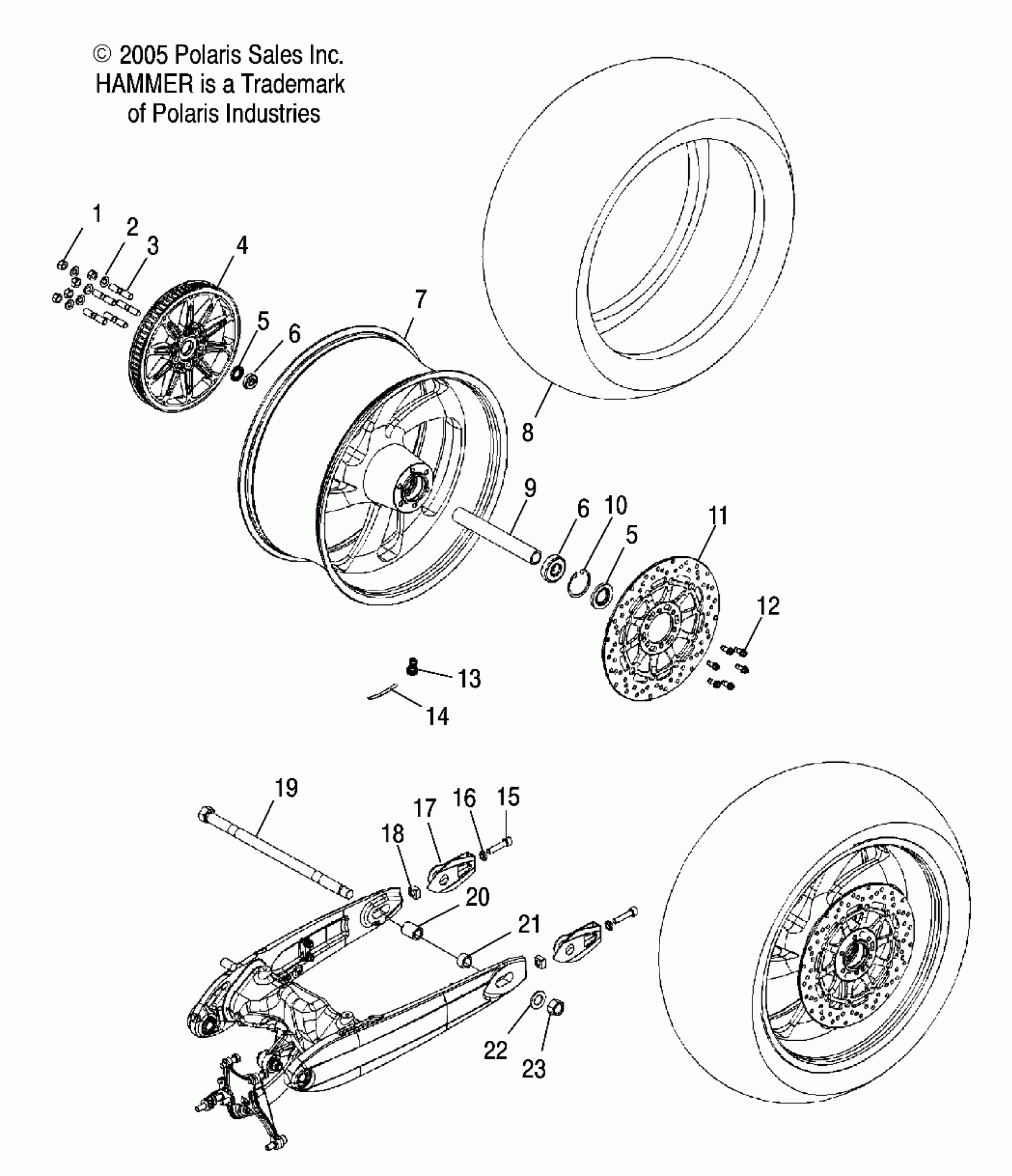

Polaris VICTORY HAMMER ALL OPTIONS - V06HB26 WHEELS, REAR (CAST) - V06HB26/ALL OPTIONS (4999203419920341B02) Diagram

#

Description
Price

1

NUT

7547232

$23.81

2

WASHER, FLAT

7556287

$7.14

3

Stud

7518311

Unavailable

4

Asm., Sprocket, Driven, 70T, Silver

1332399-385

Unavailable

5

SEAL

3610094

$31.75

5

SEAL

3610094

$31.75

6

BEARING, BALL

3514405

$19.84

6

BEARING, BALL

3514405

$19.84

7

Asm., Wheel, Cast, Rear [Incl. 5-7,9,10,13,14]

1520864-409

$295.63

8

TIRE, REAR

5412522

$372.99

9

Spacer

5334138

$61.89

10

Ring, Retaining

7710526

$10.32

11

Rotor, Brake, Floating

1910623

$349.99

12

Screw

7518297

$5.56

13

Valve, Rim

1520232

$3.17

14

Weight, Balance

1520618

Unavailable

15

Screw

7518485

Unavailable

16

Nut

7547284

$3.97

17

Bracket, Axle, Adjust

5247599

$34.99

18

Nut

5134437

Unavailable

19

Spindle

1014584

Unavailable

20

SPACER, RH

5631581

$11.99

21

SPACER, BEARING, LH

5631479

$3.97

22

Washer, Flat

7550001

$3.17

23

NUT, HEX

7547226

$23.81
