- VICTORY HAMMER ALL OPTIONS - V06HB26
BODY, FENDER, REAR - V06HB26/ALL OPTIONS (4999203419920341B05)

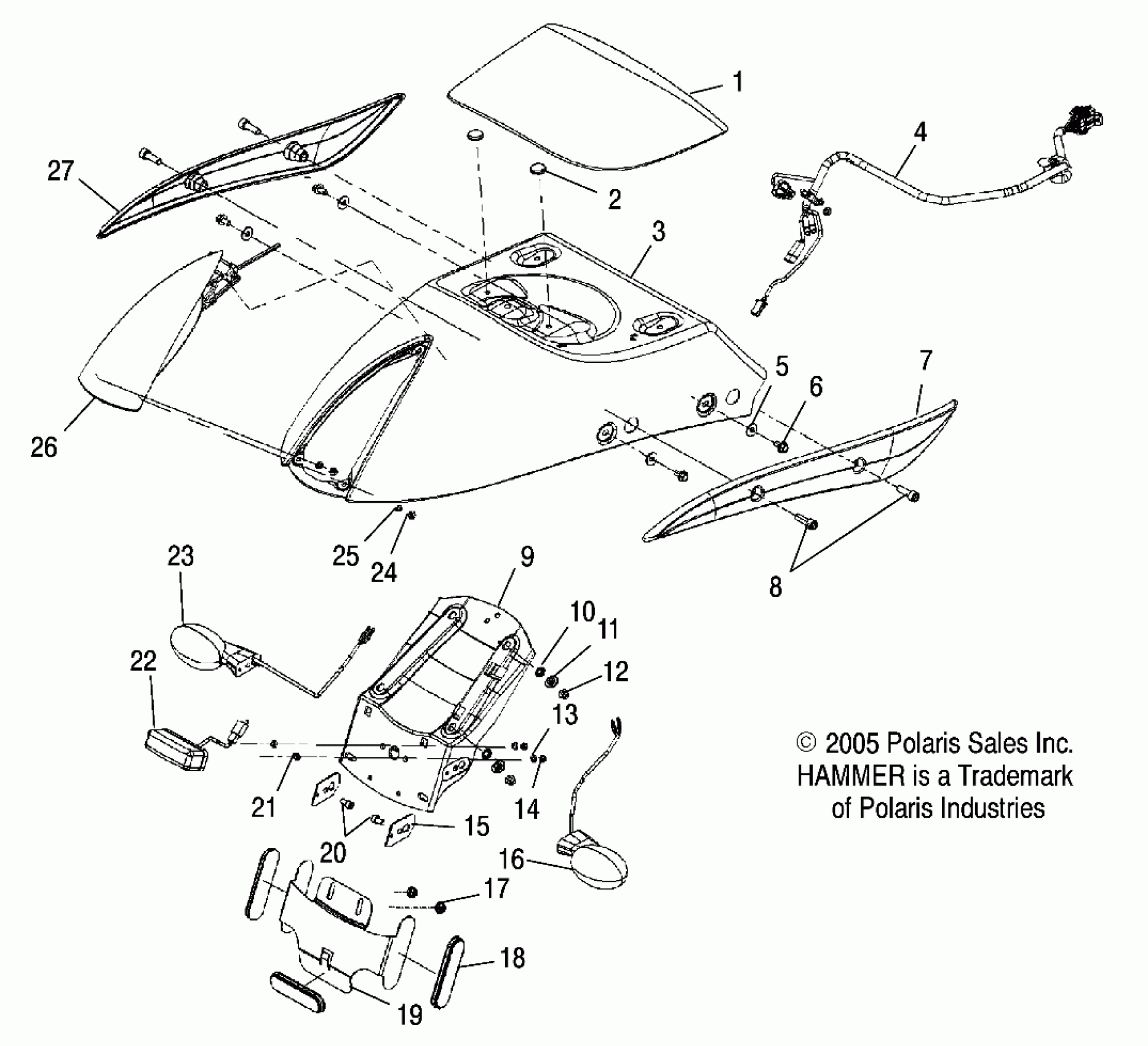

Polaris VICTORY HAMMER ALL OPTIONS - V06HB26 BODY, FENDER, REAR - V06HB26/ALL OPTIONS (4999203419920341B05) Diagram
#
1
Cowl, Seat, Black
5435331-266
Unavailable
1
Cowl, Seat, Indy Red
5435331-293
Unavailable
1
Cowl, Seat, Flame Yellow
5435331-388
Unavailable
1
Cowl, Seat, Nuc. SS
5435331-493
Unavailable
1
Cowl, Seat, S.S. Blue
5435331-1231
Unavailable
2
BUMPER, RUBBER
5412554
Unavailable
3
Fender, Rear, Black
1014485-266
Unavailable
3
Fender, Rear, Indy Red
1014485-293
$869.99
3
Fender, Rear, Flame Yellow/Tattoo
1014485-1214
$939.99
3
Fender, Rear, Nuc. SS/Tattoo
1014485-1210
$869.99
3
Fender, Rear, S.S. Blue
1014485-1231
$869.99
4
Harness, Rear
2461171
$116.17
5
WSHR-6.4X18.0X1.6 ZPB
7556064
$5.22
6
SCREW
7517704
$7.19
7
Cover, Strut, RH
5631530
Unavailable
8
SCREW
7518084
Unavailable
9
Strap, LP, Mod, Upper
5435483
Unavailable
10
GROMMET
5412265
Unavailable
11
SPACER, TOP HAT
5134889
Unavailable
12
Nut
7710495
$4.79
13
WASHER, FLAT
7556271
Unavailable
14
NUT-M5X.8,HX NYL-Y
7546601
$1.49
15
Bracket, Signal, Backer
5248078-408
Unavailable
16
Bulb, Single Filament
4010742
$8.79
16
SIGNAL, INC, REAR, RH
2410440
$51.99
17
SPEED NUT-WASHER, HEAD-1/4
7670054
$1.49
18
REFLECTOR, RED, OVAL
5434624
Unavailable
19
Bracket, LP, Mod, Lower
5247833-463
Unavailable
20
SCREW
7517405
$10.39
21
Spacer
5134403
$3.19
22
LIGHT, LICENSE PLATE
2410450
Unavailable
23
Bulb, Single Filament
4010742
$8.79
23
SIGNAL, INC, REAR, LH
2410439
Unavailable
24
Screw, Tapping
7518439
Unavailable
25
Spacer, Top Hat
5135018
$6.35
26
Taillight, LED
2410631
Unavailable
27
Cover, Strut, LH
5631529
Unavailable
