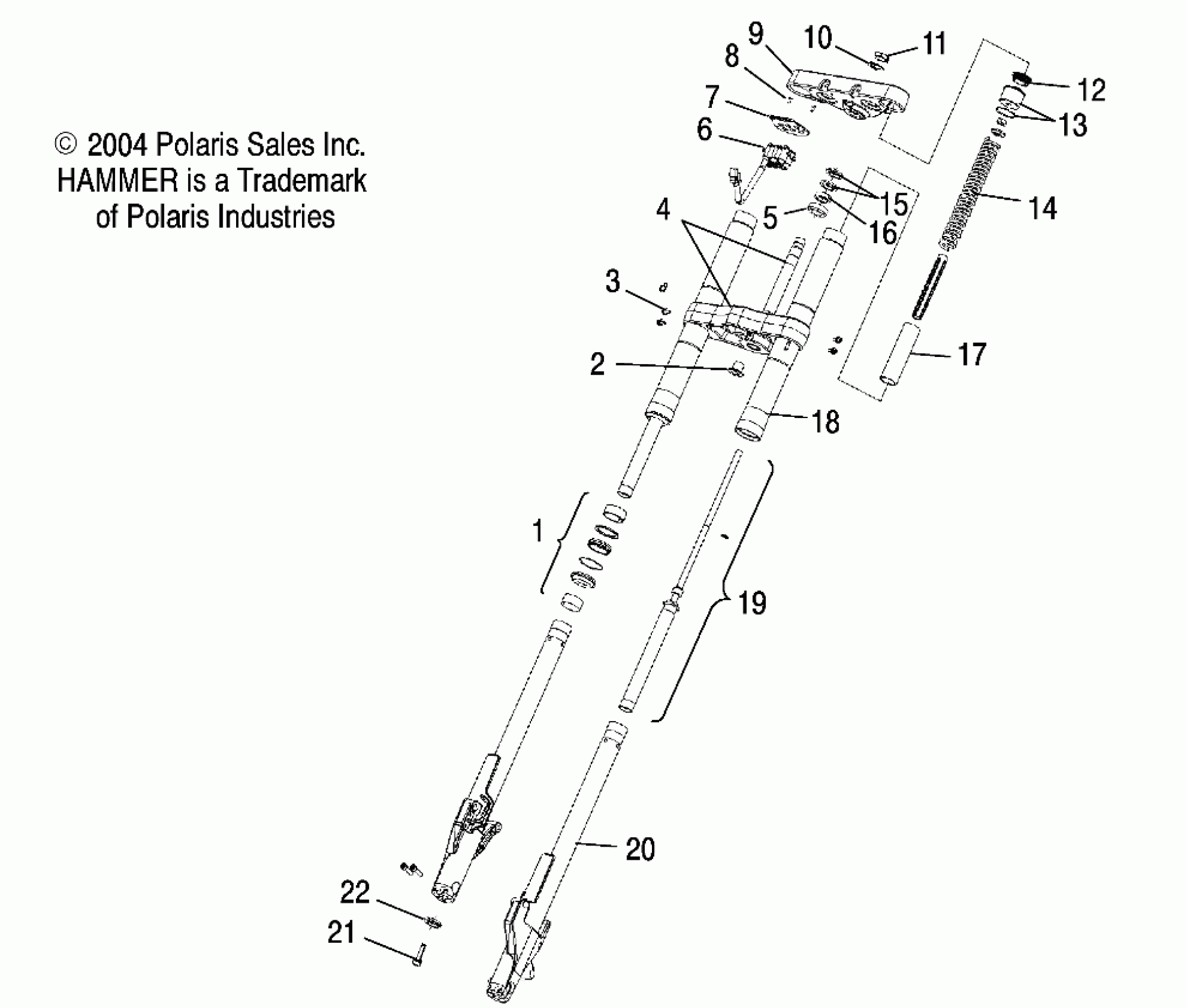

Polaris VICTORY HAMMER ALL OPTIONS - V05HB26 SUSPENSION, FRONT FORKS and CLAMP ASM. - V05HB26/ALL OPTIONS (4996299629A10) Diagram

#

Description
Price

-

Asm., Fork Leg, LH, Chrome (Incl. 12-14,17-20)

1822728-156

Unavailable

-

Asm., Fork Leg, LH, Alum (Incl. 12-14,17-20)

1822728-411

$361.11

-

Asm., Fork Leg, RH, Chrome (Incl. 12-14,17-20)

1822729-156

Unavailable

-

Asm., Fork Leg, RH, Alum (Incl. 12-14,17-20)

1822729-411

Unavailable

1

Kit, Bearing Seal

2202686

Unavailable

2

CAP, STEERING STEM

5412473

Unavailable

3

SCREW

7517361

$23.99

4

Asm., Bracket, Lower

1823531-411

$389.99

4

Asm., Bracket, Lower, Chrome

1823531-156

$652.37

5

BEARING, NEEDLE

3514416

Unavailable

6

Housing, Indicator Light, Neut/Hi/Eng. (If built after 3/31/05)

5435799

$589.99

6

Housing, Indicator Light, Oil/Turn/Fuel (If built after 3/31/05)

5435798

$589.99

6

Bulb, Wedge Base

4010760

$6.99

6

Harness, Indicator Light [Incl. Bulbs](If built after 3/31/05)

2410493

$589.99

6

Harness, Indicator Light [Incl. Bulbs](If built before 3/31/05)

2461094

Unavailable

6

Housing, Indicator Light, Oil/Turn/Fuel (If built before 3/31/05)

5435209

$18.10

6

Housing, Indicator Light, Neut/Hi/Eng. (If built before 3/31/05)

5435210

$18.10

7

Bezel, Indicator Panel

5434683

Unavailable

8

SCREW

7518144

Unavailable

9

Asm., Bracket, Upper

1821530-411

$319.99

9

Asm., Bracket, Upper, Chrome

1821530-156

$639.99

10

WASHER

7556246

Unavailable

11

Nut, Top, Triple Clamp

5134148

Unavailable

12

CAP

5132481-156

Unavailable

13

O-Ring

5412560

Unavailable

13

Kit, Cap, Fork Tube [Incl. O-Ring]

2202703

$73.81

14

Spring, Fork

7043115

$63.71

15

NUT, STEERING HEAD

5134094

Unavailable

16

Bearing, Needle

3514417

$31.75

17

Spacer

5134364

$11.11

18

Tube, Outer

5134829

$529.99

19

Kit, Cartridge Hardware

2202685

$76.81

19

Kit, Cartridge Asm.

2202873

$247.99

19

CARTRIDGE

-------

Unavailable

19

RETAINER, SPRING

-------

Unavailable

19

NUT, JAM

-------

Unavailable

19

GUIDE, SPRING

-------

Unavailable

19

Bolt

-------

Unavailable

19

WASHER

-------

Unavailable

19

CLIP, RETAINING

-------

Unavailable

20

Kit, Inner Tube, LH [Chrome][Incl. 3]

2202682-156

Unavailable

20

Kit, Inner Tube, LH [Alum][Incl. 3]

2202682-411

Unavailable

20

Kit, Inner Tube, RH [Alum][Incl. 3]

2202872-411

Unavailable

20

Kit, Inner Tube, RH [Chrome][Incl. 3]

2202872-156

Unavailable

21

SCREW

7518101

Unavailable

22

Washer, Oil Seal

3610069

$23.81
