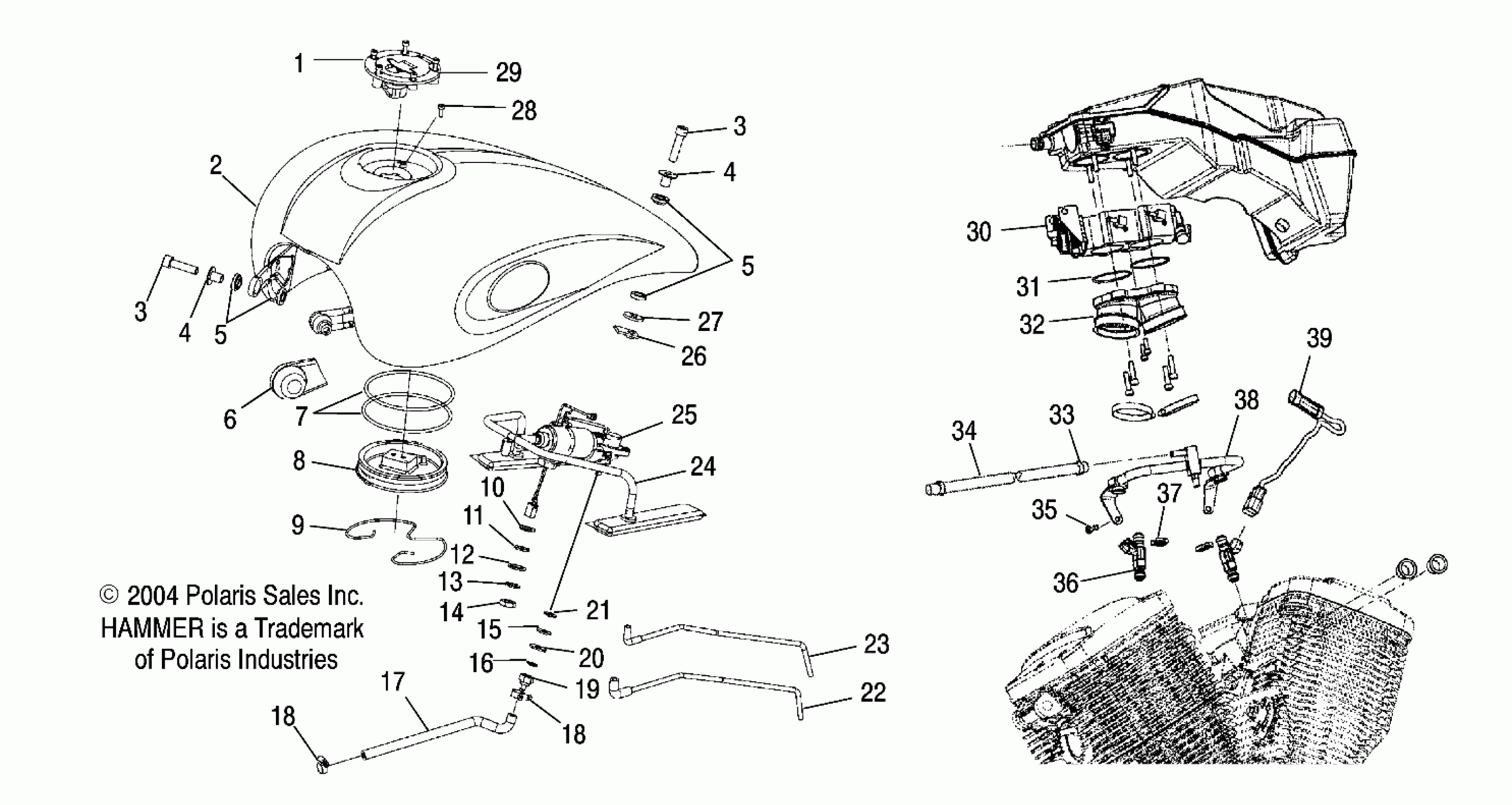

Polaris VICTORY HAMMER ALL OPTIONS - V05HB26 FUEL SYSTEM, FUEL TANK, LINES and THROTTLE BODY - V05HB26/ALL OPTIONS (4996299629A11) Diagram

#

Description
Price

1

SCREW

7518086

$5.56

2

Tank, Fuel, No Spine, Black

1014755-266

Unavailable

2

Tank, Fuel, No Spine, Indy Red

1014755-293

Unavailable

2

Tank, Fuel, No Spine, Yellow

1014755-388

Unavailable

2

Tank, Fuel, No Spine, Cosmic Sunburst

1014755-446

Unavailable

2

Tank, Fuel, No Spine, Toxic Green w/Tribal Tattoo

1014755-1202

Unavailable

2

Tank, Fuel, No Spine, Indy Red w/Tribal Tattoo

1014755-1203

$1,504.99

3

SCREW

7517525

$4.35

3

SCREW

7517525

$4.35

4

Bushing

5134160

$10.99

4

Bushing

5134160

$10.99

5

Bushing, Flange

5412480

$3.17

5

Bushing, Flange

5412480

$3.17

6

COVER, MOUNT, LH

5412414

$32.37

6

COVER, MOUNT, RH

5412415

$32.37

7

O-Ring

5412071

Unavailable

8

Plug

5133613

Unavailable

9

Ring, Retaining

7710515

Unavailable

10

Grommet

5412096

$12.70

11

Grommet

5412095

Unavailable

12

Washer

7556193

Unavailable

13

Washer

7556192

$4.76

14

Nut

7547186

$4.76

15

Grommet

5412093

Unavailable

16

O-Ring

5411869

Unavailable

17

Hose

5412332

Unavailable

18

CLAMP, HOSE

7081151

$7.14

18

CLAMP, HOSE

7081151

$7.14

19

Fitting

2520251

Unavailable

20

Washer

7556131

$3.17

21

Grommet

5412094

$12.70

22

Line

5434782

$83.33

23

Line, Water Vent

5434781

Unavailable

24

Asm., Fuel Line, Filter

2520322

Unavailable

25

Pump, Fuel

2520394

Unavailable

25

Thermistor [Level Sensor]

2520678

Unavailable

26

U-NUT

7547233

$10.32

27

Washer, Flat

7556260

$10.32

28

SCREW

7517845

$5.56

29

ASM., IGNITION SWITCH/FUEL CAP [See Ignition Asm. Pg. C2, Ref. 6]

----

Unavailable

30

Asm., Throttle Body

1253363

Unavailable

30

Cap, Fitting, Rubber

5411886

Unavailable

31

O-Ring

5412259

$1.59

32

Adapter, Throttle Body

1253335

$159.99

33

Clamp, Hose

7080894

$7.14

34

Hose

5411942

$44.99

35

SCREW

7517405

$10.32

36

O-RING-BOSCH,EV-14,UPPER, BLUE

1500198

$11.90

36

Injector, Fuel

1253405

Unavailable

37

Clip, Injector Clocking

7670129

Unavailable

38

Asm., Fuel Rail

2520207

Unavailable

39

HARNESS, JUMPER, FUEL INJECTOR [SEE ELECTRICAL PG. C1, REF. 20]

----

Unavailable
