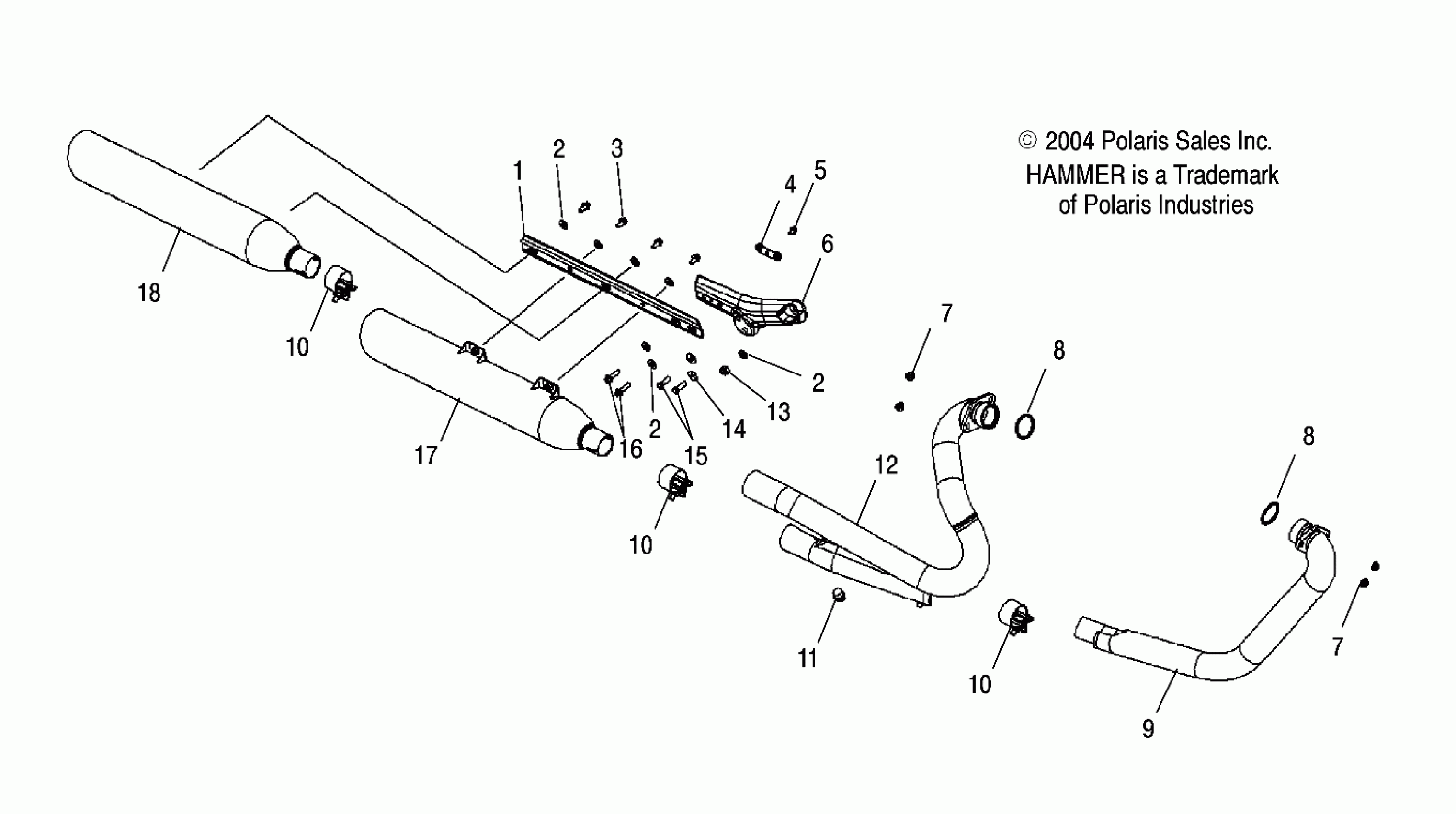

Polaris VICTORY HAMMER ALL OPTIONS - V05HB26 ENGINE, EXHAUST SYSTEM - V05HB26/ALL OPTIONS (4996299629C04) Diagram

#

Description
Price

1

Bracket, Muffler To Muffler

5249008

$32.99

2

WASHER, FLAT

7556234

$3.17

2

WASHER, FLAT

7556234

$3.17

2

WASHER, FLAT

7556234

$3.17

3

SCREW

7518043

$9.52

4

PLATE, NUT, ZINC

1015172-236

$13.54

5

SCREW

7518393

$7.84

6

Support, Exhaust

5631703-472

$145.70

7

NUT

7546805

$7.84

7

NUT

7546805

$7.84

8

GASKET

5246008

$19.84

8

GASKET

5246008

$19.84

9

Asm., Exhaust Headpipe, Front

1261340

$559.99

10

CLAMP

7081179

$43.65

10

CLAMP

7081179

$43.65

10

CLAMP

7081179

$43.65

11

Bolt

7518295

Unavailable

12

Asm., Exhaust, Head Pipes

1261337

$579.99

13

NUT, NYLOK

7547268

$1.19

14

WASHER, FLAT

7556352

$4.76

15

SCREW

7518443

$4.76

16

Screw

7518391

$4.75

17

Asm., Muffler, Front

1261306

$539.99

18

Asm., Muffler, Rear

1261330

$504.99
