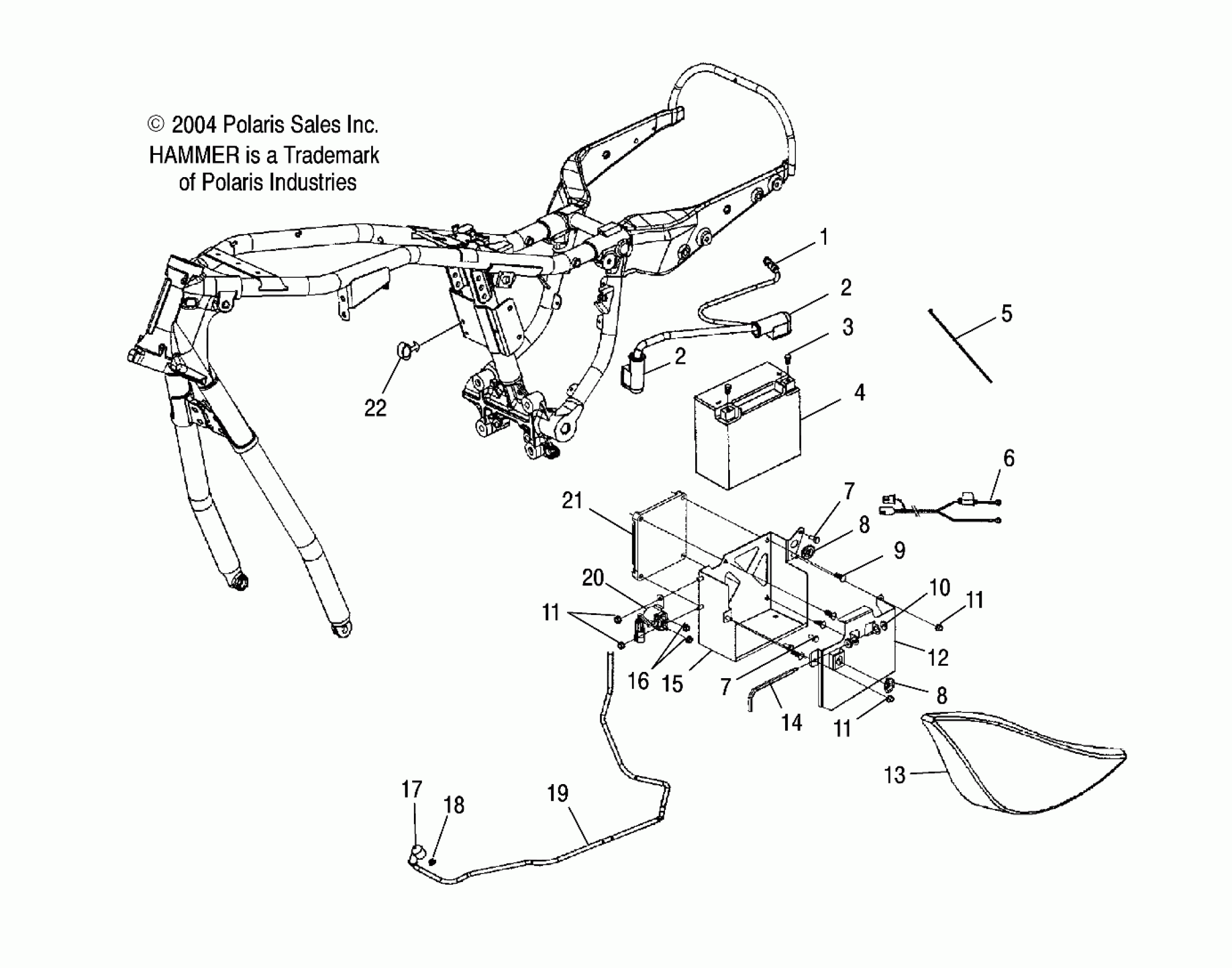

Polaris VICTORY HAMMER ALL OPTIONS - V05HB26 ELECTRICAL, ECM/BATTERY BOX/LH SIDE COVER - V05HB26/ALL OPTIONS (4996299629B11) Diagram

Cable, Battery, Positive

2461214

$27.94

BOOT,BTTRY CABLE,RED,POS

5411570

$7.27

BOOT,BTTRY CABLE,RED,POS

5411570

$7.27

BATTERY BOLT KIT

2201357

Unavailable

Battery, Sealed

4011374

$151.99

CABLE-TIE,DIA12-50MM,WTHR-RES. [8 Inch]

7080138

$2.41

Harness, Charging

2461006

$49.99

SCREW

7517438

$4.35

SCREW

7517438

$4.35

GROMMET-SIDE COVER

5433833

$4.21

GROMMET-SIDE COVER

5433833

$4.21

Clip, Plastic

7670141

$4.76

Grommet

5412322

$1.98

Nut

7710495

$5.22

Nut

7710495

$5.22

Nut

7710495

$5.22

Cover, Battery Box

1014512

Unavailable

Cover, Side, LH, Black

5435285-266

Unavailable

Cover, Side, LH, Indy Red

5435285-293

Unavailable

Cover, Side, LH, Yellow

5435285-388

Unavailable

Cover, Side, LH, Cosmic Sunburst

5435285-446

Unavailable

Cover, Side, LH, Toxic Green w/Tribal Tattoo

5435285-1202

Unavailable

Cover, Side, LH, Indy Red w/Tribal Tattoo

5435285-1203

$144.84

Wrench, Cruiser, Phillips

5334438

$3.97

PAD-BATTERY

5810290

$7.27

Box, Battery

1014477-067

Unavailable

NUT

7547270

$3.97

Boot, Terminal Insulator, Black

5412343

$5.56

NUT, FLEXLOC

7547091

Unavailable

Cable, Starter

2461106

$23.02

SOLENOID, STARTER [See Electrical Pg. C1, Ref. 3]

----

Unavailable

ECM, Programmed NOTE: Refer to Victory Diagnostic Software Users Guide for appropriate calibration instructions.

4011099

$669.99

CLIP, SNAP-IN

7080756

$4.76
