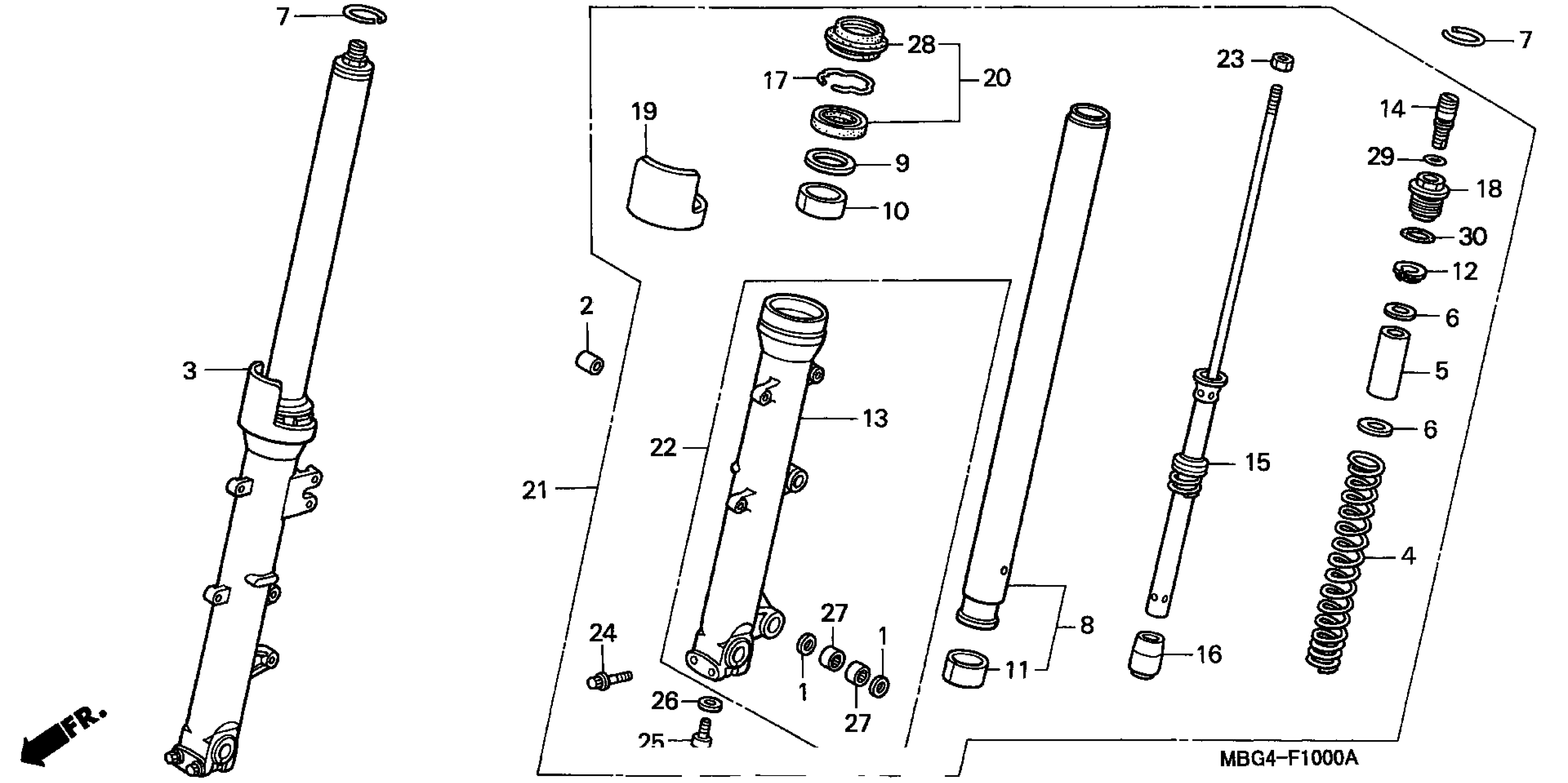

Honda VFR800FIAC (99) INTERCEPTOR, JPN, VIN# JH2RC461-XM100001 FRONT FORK Diagram

#

Description
Price

1

DUST SEAL, BRAKE CAM (NOK)

45134-KB7-005

$2.80

2

COLLAR, L. CALIPER BRACKET

45442-MAT-000

$4.61

2

COLLAR, PIVOT

45452-MZ2-000

$9.01

3

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-MBG-003

Unavailable

4

SPRING, FR. FORK (NOT AVAILABLE)

51401-MBG-003

Unavailable

5

COLLAR, SPRING (L. SIDE)

51402-MS2-003

$16.22

6

SEAT, SPRING (SHOWA)

51403-KF0-003

$4.47

7

RING, STOPPER

51405-MB4-003

$5.66

8

PIPE, FR. FORK (SOURCE: VINTAGE PARTS INC.)

51410-MBG-003

Unavailable

9

RING, BACK-UP (SHOWA)

51412-MB4-003

$8.66

10

BUSH, GUIDE (SHOWA)

51414-KCR-003

$12.58

11

BUSH, SLIDER (SHOWA)

51415-KCR-003

$11.02

12

SEAT, SPRING (SHOWA)

51415-MS2-003

$11.90

13

CASE, R. (LOWER) (SOURCE: VINTAGE PARTS INC.)

51420-MBG-003

Unavailable

14

ADJUSTER, SPRING (SHOWA)

51422-KV3-831

$71.94

15

DAMPER, FR. (SOURCE: VINTAGE PARTS INC.)

51430-MBG-003

Unavailable

16

PIECE, OIL LOCK (SHOWA)

51432-MS2-003

$29.04

17

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.20

18

BOLT, FR. FORK (NOT AVAILABLE)

51454-KV3-831

Unavailable

19

PROTECTOR, FORK PIPE

51460-MT3-611

$10.59

20

SEAL SET, FR. FORK (SHOWA)

51490-MN8-305

$31.62

21

FORK ASSY., L. FR. (SHOWA) (SOURCE: VINTAGE PARTS INC.)

51500-MBG-003

Unavailable

22

CASE, L. (LOWER) (SOURCE: VINTAGE PARTS INC.)

51520-MBG-003

Unavailable

23

NUT, HEX. (10MM)

51451-MAJ-G41

$2.64

24

BOLT, FLANGE (8X45)

90109-MR7-000

$4.60

25

BOLT, SOCKET (8X27) BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$4.77

26

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.61

27

BEARING, NEEDLE (14X20X12)

91101-KG8-003

$35.09

28

DUST SEAL

91254-MM8-003

$16.06

29

O-RING (13.8X2.4) (NOK) This part replaces 91311-MR7-003.

91311-PH7-003

$2.22

29

O-RING (13.8X2.4) (NOK)

91311-PH7-003

$2.22

30

O-RING (21.7X3.5) (SHOWA)

91356-KF0-003

$3.51
