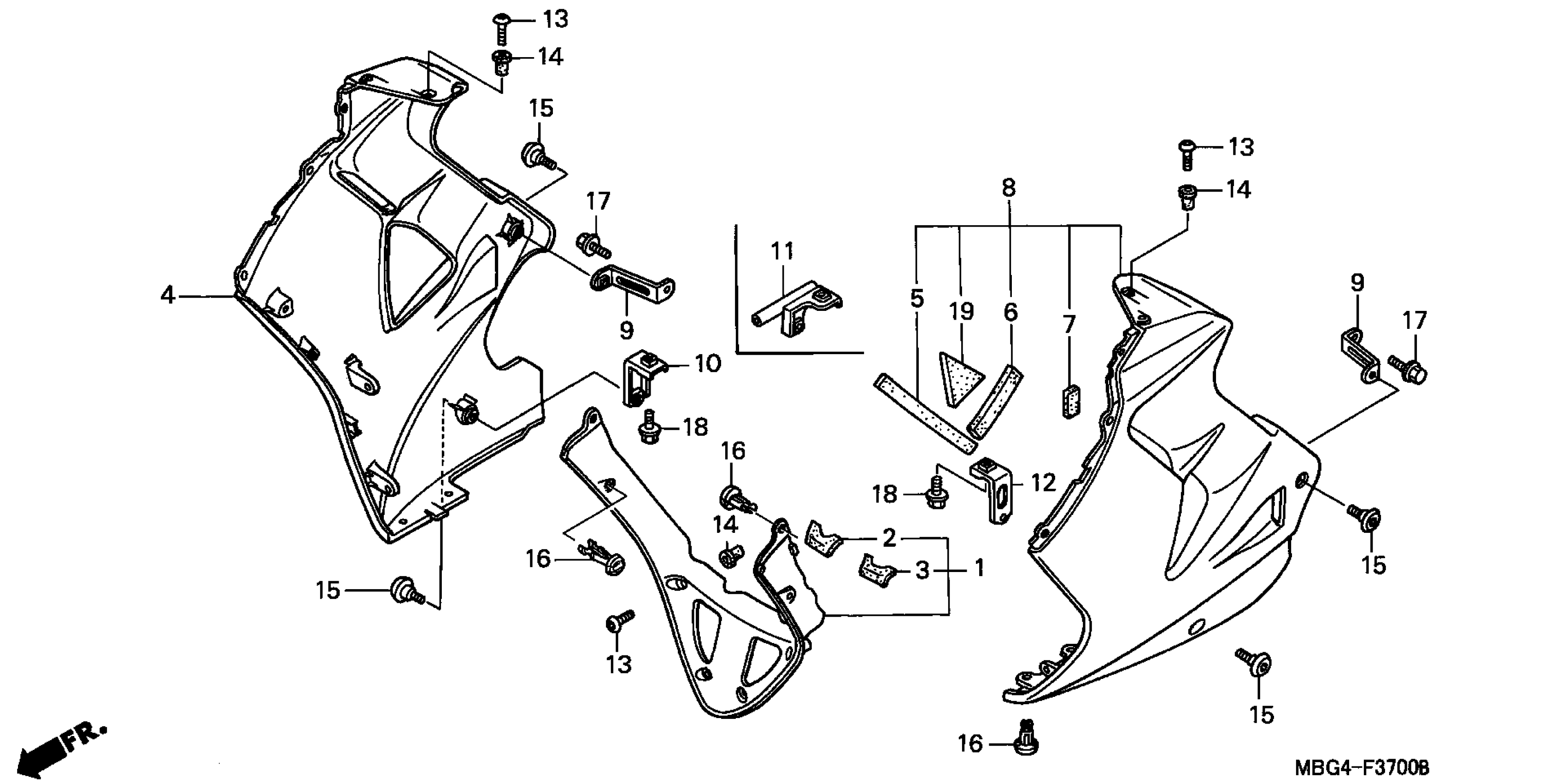

Honda VFR800FIAC (00) INTERCEPTOR, JPN, VIN# JH2RC461-YM200001 LOWER COWL Diagram

COWL, HALF (INNER) *NH1* (BLACK)

64270-MBG-D00ZA

Unavailable

COWL SET, R. SIDE (TYPE2) (WL) (NOT AVAILABLE)

64310-MBG-A00ZA

Unavailable

SEAL A, FR. SIDE COWL (SOURCE: VINTAGE PARTS INC.)

64316-MBG-300

Unavailable

SEAL B, FR. SIDE COWL

64317-MBG-300

Unavailable

SEAL C, FR. SIDE COWL (SOURCE: VINTAGE PARTS INC.)

64318-MBG-300

Unavailable

COWL SET, L. SIDE (TYPE2) (WL) (NOT AVAILABLE)

64320-MBG-A00ZA

Unavailable

STAY, FR. SIDE COWL (RR)

64511-MBG-000

$5.80

STAY, R. FR. SIDE COWL (LOWER) This part replaces 64512-MBG-770.

64512-MBG-771

$18.67

STAY, L. FR. SIDE COWL (LOWER) This part replaces 64513-MBG-000.

64513-MCP-900

$11.10

SCREW, PAN (5X20)

90103-MBG-000

$2.02

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

BOLT, COWL SETTING

90112-MT4-000

$3.31

CLIP, BODY

90683-MBW-003

$2.16

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.55

MAT B, MIDDLE COWL

64252-MT4-700

$7.88
