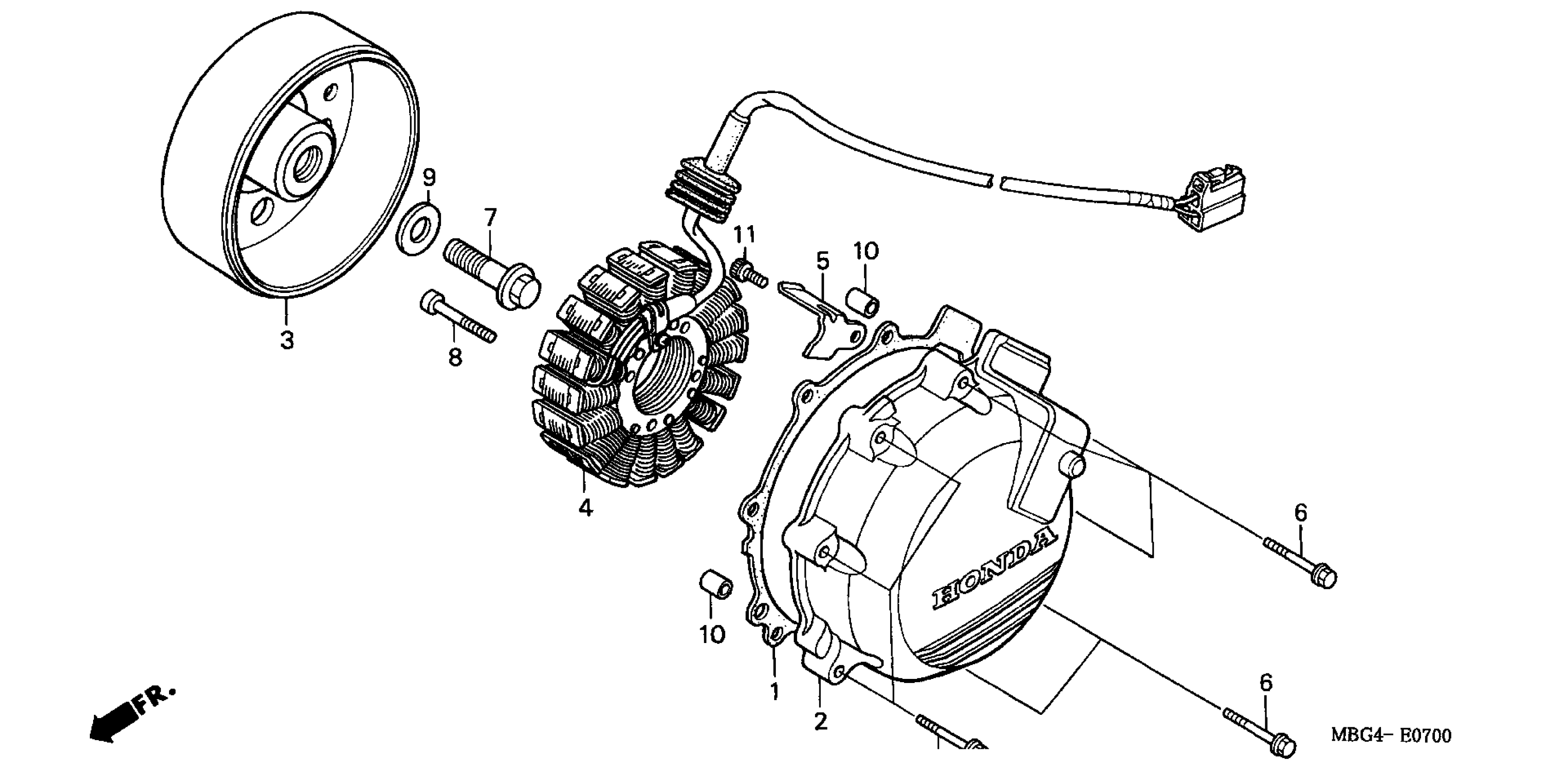

Honda VFR800FIA (01) INTERCEPTOR, JPN, VIN# JH2RC460-1M300001 ALTERNATOR Diagram

#

Description

Price

1

GASKET, ALTERNATOR COVER

11636-MBG-000

Unavailable

2

COVER, ALTERNATOR (SOURCE: VINTAGE PARTS INC.)

11641-MW4-010

Unavailable

3

FLYWHEEL (SOURCE: VINTAGE PARTS INC.)

31110-MBG-003

Unavailable

4

STATOR (SOURCE: VINTAGE PARTS INC.)

31120-MBG-D01

Unavailable

5

CLAMP, ALTERNATOR WIRE This part replaces 31131-MR7-000.

31131-MR7-010

$5.08

5

CLAMP, ALTERNATOR WIRE

31131-MR7-010

$5.08

6

BOLT, FLANGE (6X32) (NSHF)

90004-GHB-690

$3.85

7

BOLT, FLANGE (10MM)

90023-MV9-670

$11.19

8

BOLT, TORX (6X38)

90085-MW4-000

$10.33

9

WASHER (10.5X27)

90405-KT7-000

$4.70

10

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

11

BOLT, SOCKET (6X8)

90016-58G-A00

$2.90

11

BOLT, SOCKET (6X8) This part replaces 96600-06010-00.

90016-58G-A00

$2.90
