Description

Price

1

MAINSHAFT (13T)

23210-MGY-640

$178.69

2

PLATE, BEARING SETTING

23212-ML7-000

$12.21

3

COUNTERSHAFT

23220-MGY-640

$242.33

4

GEAR, COUNTERSHAFT FIRST (37T)

23421-MCW-D00

$111.38

5

GEAR, MAINSHAFT SECOND (16T)

23431-ML7-920

$56.89

6

GEAR, COUNTERSHAFT SECOND (33T)

23441-MGY-640

$118.18

7

COLLAR (28MM)

23442-ML7-000

$27.93

8

GEAR, MAINSHAFT THIRD & FOURTH (19T/24T)

23451-MCW-D00

$127.03

9

GEAR, COUNTERSHAFT THIRD (30T)

23461-MCW-D00

$106.28

10

GEAR, COUNTERSHAFT FOURTH (31T)

23481-MCW-D00

$106.28

11

COLLAR, SPLINE (28X9.6)

23482-MJ1-760

$23.03

12

GEAR, MAINSHAFT FIFTH (27T)

23491-MCW-D00

$103.70

13

COLLAR (25X12)

23495-MB0-000

$26.23

14

GEAR, COUNTERSHAFT FIFTH (30T)

23501-MCW-D00

$120.03

15

GEAR, MAINSHAFT SIXTH (29T)

23511-MCW-D00

$64.18

16

COLLAR, SPLINE

23512-MR7-000

$30.69

17

GEAR, COUNTERSHAFT SIXTH (28T)

23521-MGY-640

$127.69

18

SPROCKET, DRIVE (16T)

23801-MJM-D00

$67.44

19

BOLT, SPECIAL (10MM)

90037-422-003

$7.32

20

WASHER, SPLINE (25X31X1.5)

90451-KY2-000

$3.81

21

WASHER, SPLINE (28X34X1.5)

90452-MR7-000

$6.33

22

WASHER B, THRUST (22MM) (BLUE)

90455-ML7-000

$4.85

23

WASHER, THRUST (25MM)

90456-MA6-000

$2.53

24

WASHER (10.2MM)

90459-438-000

$5.83

25

WASHER A, THRUST (20MM)

90461-MC7-000

$5.00

26

WASHER, LOCK (25MM)

90462-MR7-000

$11.00

27

WASHER, SPLINE (28MM)

90463-MR7-000

$10.57

28

WASHER, LOCK (28MM)

90464-MR7-000

$10.57

29

WASHER, SPLINE (25MM)

90465-MR7-000

$10.41

30

CIRCLIP (25MM)

90601-107-000

$3.74

31

RING SET (68MM)

90602-MR7-000

$8.54

32

CIRCLIP (28MM)

90603-MN4-000

$4.11

33

BEARING, NEEDLE (20MM)

91021-MW4-003

$22.90

34

BEARING, NEEDLE (22MM)

91023-MCP-901

$28.95

35

BEARING, NEEDLE (22X26X11)

91026-MB4-003

$14.48

36

OIL SEAL (40X68X7.2) This part replaces 91207-MR7-003.

91207-MW4-003

Unavailable

37

PIN B, DOWEL (8X10)

94302-08100

$2.14

38

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

39

BEARING, RADIAL BALL (6305)

96100-63050-00

$15.27

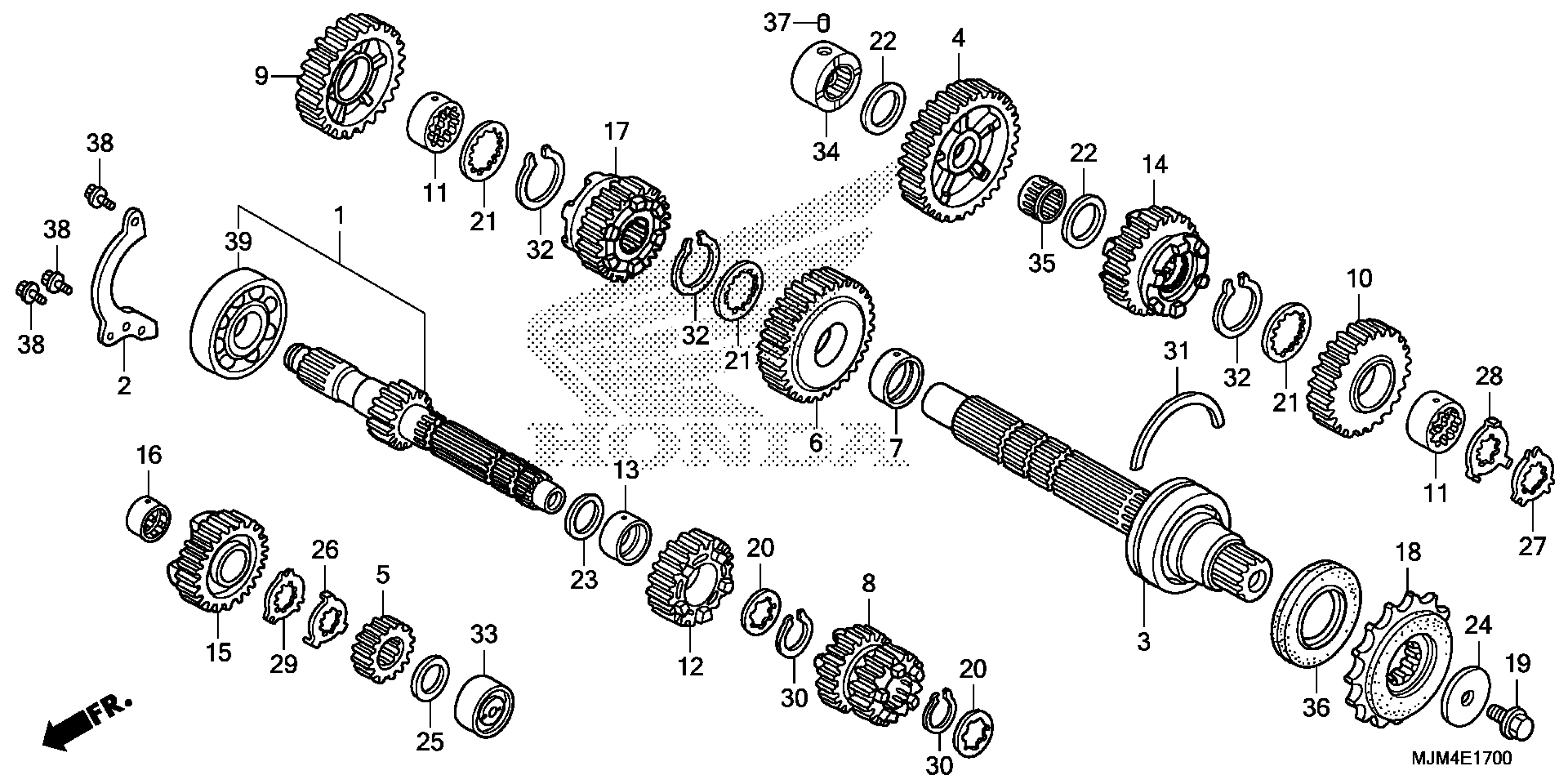

Honda VFR800FD2AC (15) INTERCEPTOR DELUXE, JPN, VIN# JH2RC795-FK100001 TO JH2RC795-FK199999 TRANSMISSION Diagram
