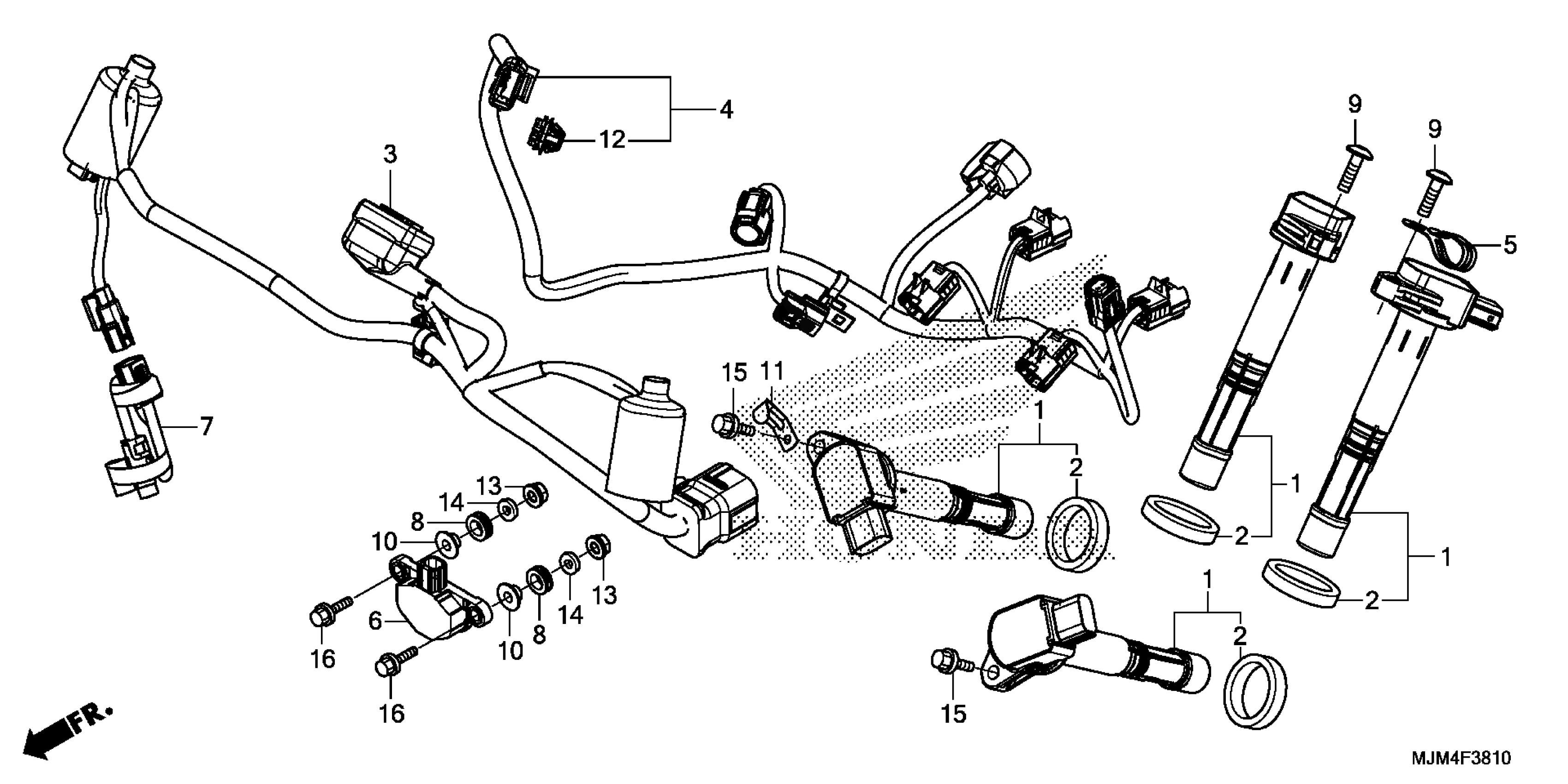

Honda VFR800FD2AC (15) INTERCEPTOR DELUXE, JPN, VIN# JH2RC795-FK100001 TO JH2RC795-FK199999 SUB HARNESS Diagram

COIL, PLUG HOLE This part replaces 30520-RRA-007.

30520-RRA-S01

$97.41

SEAL, PLUG HOLE

30522-PFB-007

$7.66

SUB-WIRE HARNESS, FR.

32103-MJM-D00

$115.81

SUB-HARNESS, INJECTOR

32112-MJM-D00

$87.10

CLIP, WIRE HARNESS

32170-443-850

$4.68

SENSOR ASSY., BANK ANGLE

35160-MGS-D31

$136.62

SENSOR, OPEN AIR TEMPERATURE

37880-MJM-D11

$55.29

RUBBER, SIDE COVER

64535-MFJ-D00

$1.77

BOLT, SPECIAL (6X22)

90085-KFB-000

$3.18

COLLAR, BANK ANGLE SENSOR

90129-MGZ-J00

$2.09

CLIP (4X50)

90601-KJ9-000

$2.87

CLIP, CONNECTOR (BLACK)

91565-SEL-003

$3.42

NUT, FLANGE (6MM)

94050-06000

$0.59

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

WASHER, PLAIN (6MM)

94101-06800

Unavailable

BOLT, FLANGE (6X20)

95701-06020-08

$0.35

BOLT, FLANGE (6X20)

96001-06020-00

$1.13
