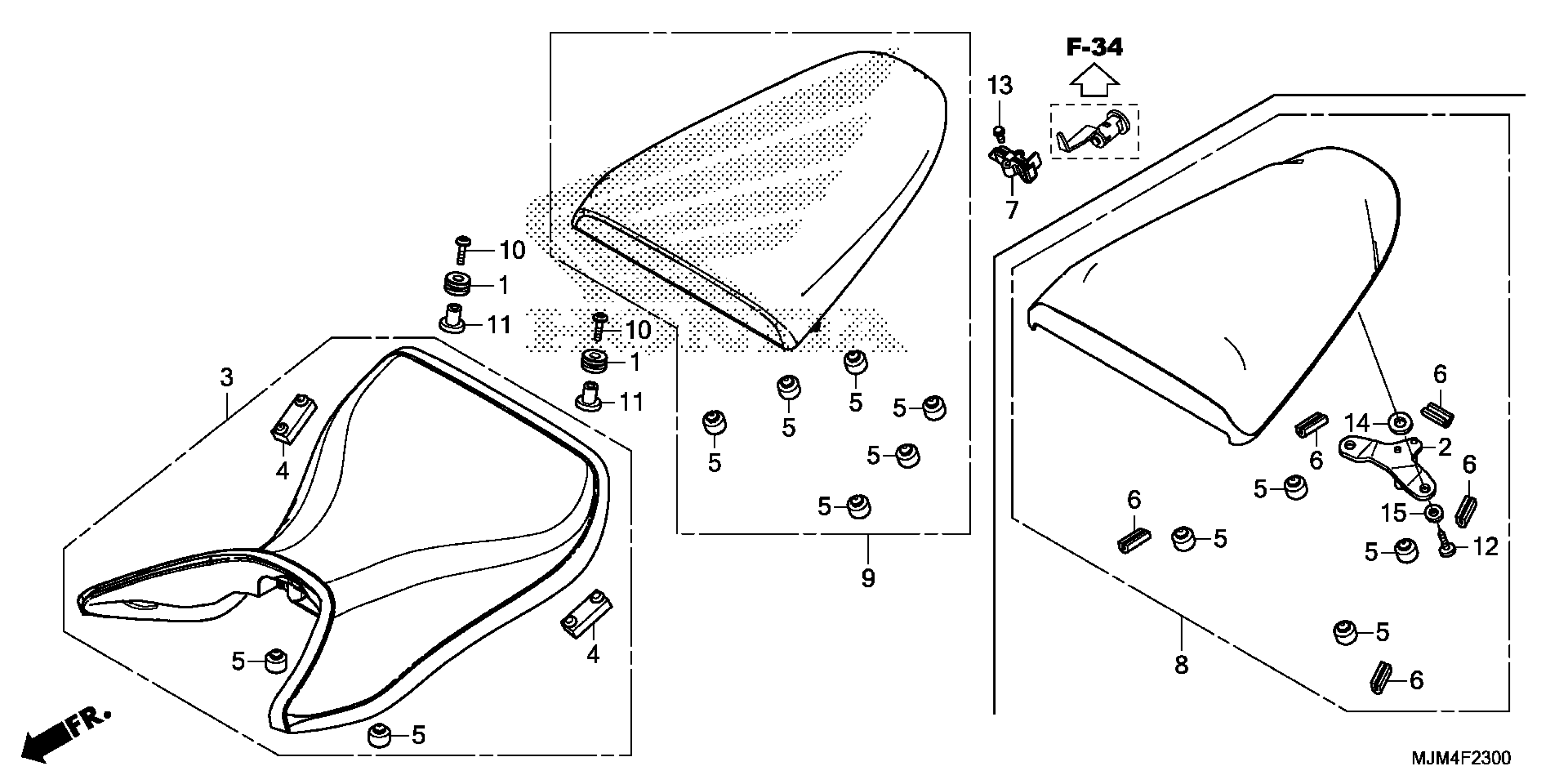

Honda VFR800FD2AC (15) INTERCEPTOR DELUXE, JPN, VIN# JH2RC795-FK100001 TO JH2RC795-FK199999 SEAT Diagram

RUBBER, FR. FENDER MOUNTING

61103-357-000

$3.37

PLATE, LID LOCK

64107-MGS-D30

$22.64

SEAT ASSY., SINGLE (TYPE1)

77100-MJM-D01ZA

$228.70

RUBBER B, SEAT SETTING

77205-286-000

$5.28

RUBBER, SEAT CUSHION

77206-GF0-000

$5.46

PROTECTOR, RUBBER

77212-MFJ-D00

$1.74

HOOK, SEAT CATCH

77240-MGE-000

$38.23

COWL ASSY., SINGLE SEAT *NHB53P* (PEARL GLARE WHITE) | Pearl glare white NHB53P;

77283-MJM-D00ZA

$186.08

COWL ASSY., SINGLE SEAT *R334* (VICTORY RED) | Victory red R334;

77283-MJM-D00ZC

$186.08

SEAT ASSY., PILLION (TYPE1)

77300-MJM-D01ZA

$243.64

BOLT, SPECIAL (6X25)

90114-KSV-J10

$1.97

COLLAR (6.2X12)

90501-MFA-D00

$3.21

SCREW, TAPPING (5X16)

93903-25380

$1.49

BOLT, FLANGE (6X14)

96001-06014-07

$1.49

WASHER, PLAIN (10MM)

94101-10700

$1.49

WASHER, PLAIN (5MM)

94103-05700

$1.49
