Description

Price

1

DAMPER SET, WHEEL

06410-MBG-000

$36.38

2

SENSOR, RR. WHEEL SPEED

38510-MJM-D01

$194.02

3

CLAMP, SPEED SENSOR WIRE

38516-MJM-D10

$6.13

4

SPROCKET, FINAL DRIVEN (43T)

41201-MJM-D00

$102.18

5

AXLE, RR.

42300-MJM-D00

$267.03

6

CAP, RR. WHEEL

42303-MEH-000

$6.85

7

HOLDER, BEARING

42500-MBG-000

$296.16

8

RING, RR. PULSER

42515-MJM-D10

$140.48

9

FLANGE, FINAL DRIVEN

42605-MBG-000

$142.48

10

COLLAR, RR. AXLE DISTANCE

42621-MT4-000

$19.77

11

COLLAR, RR. AXLE SIDE

42622-MT4-000

$21.89

12

COLLAR, RR. AXLE

42623-MBG-000

$22.56

13

HUB ASSY., SPROCKET

42630-MCW-H50

$197.36

14

WHEEL SUB (TYPE1) This part replaces 42650-MJM-305ZA.

42650-MJM-D00ZA

$850.98

15

TIRE, RR. This part replaces 42711-MJM-D01.

42711-MJM-D03

$523.73

15

TIRE, RR. (180/55ZR17) (M/C 73W) (DUNLOP)

42711-MJM-D02

$333.93

16

VALVE, RIM (BS)

42753-ML7-003

$12.74

16

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

17

DISK, RR. BRAKE

43251-MJM-D00

$325.33

18

WEIGHT, BALANCE (10G)

44721-MGC-003

$4.41

18

WEIGHT, BALANCE (15G)

44722-MGC-003

$5.25

18

WEIGHT, BALANCE (20G)

44723-MGC-003

$5.25

19

CLAMP A, SENSOR CORD

45157-MEJ-J00

$3.54

20

BOLT, FLANGE (8X20)

90102-MFN-D00

$1.92

21

BOLT, WHEEL (ROCKNEL FASTENER) This part replaces 90113-SA0-025.

90113-SM1-005

$2.78

21

BOLT, WHEEL (ROCKNEL FASTENER)

90113-SM1-005

$2.78

22

BOLT (10X30)

90121-MCF-000

$3.24

23

BOLT, TORX (5X7)

90131-MFJ-A50

$3.03

24

NUT, U (10MM)

90304-KAE-871

$4.33

25

NUT, WHEEL (FUSE RASHI)

90381-S4L-003

$10.64

26

NUT, LOCK (35MM)

90306-MFN-D00

$11.61

27

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

27

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

28

WASHER, CONICAL SPRING (35)

90501-MBG-003

$7.72

29

WASHER (10MM)

90502-MCF-000

$2.80

30

CIRCLIP (INNER) (62MM)

90651-ML0-731

$5.98

31

CIRCLIP (OUTER) (75MM)

90652-ML0-731

$10.43

32

CLIP, CABLE (14MM)

90690-MCA-003

$1.77

33

BEARING, RADIAL BALL (6908LU)

91061-ML0-731

$47.56

34

BEARING, RADIAL BALL (35X55X10)

91061-MT4-003

$88.96

35

BEARING, RR. AXLE NEEDLE

91062-MR7-003

$42.42

36

DUST SEAL (45X55X5) (ARAI)

91258-ML7-003

$8.66

37

DUST SEAL (50X62X5)

91284-MR7-003

$12.78

38

O-RING, SPROCKET HUB

91352-MN8-003

$2.61

39

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

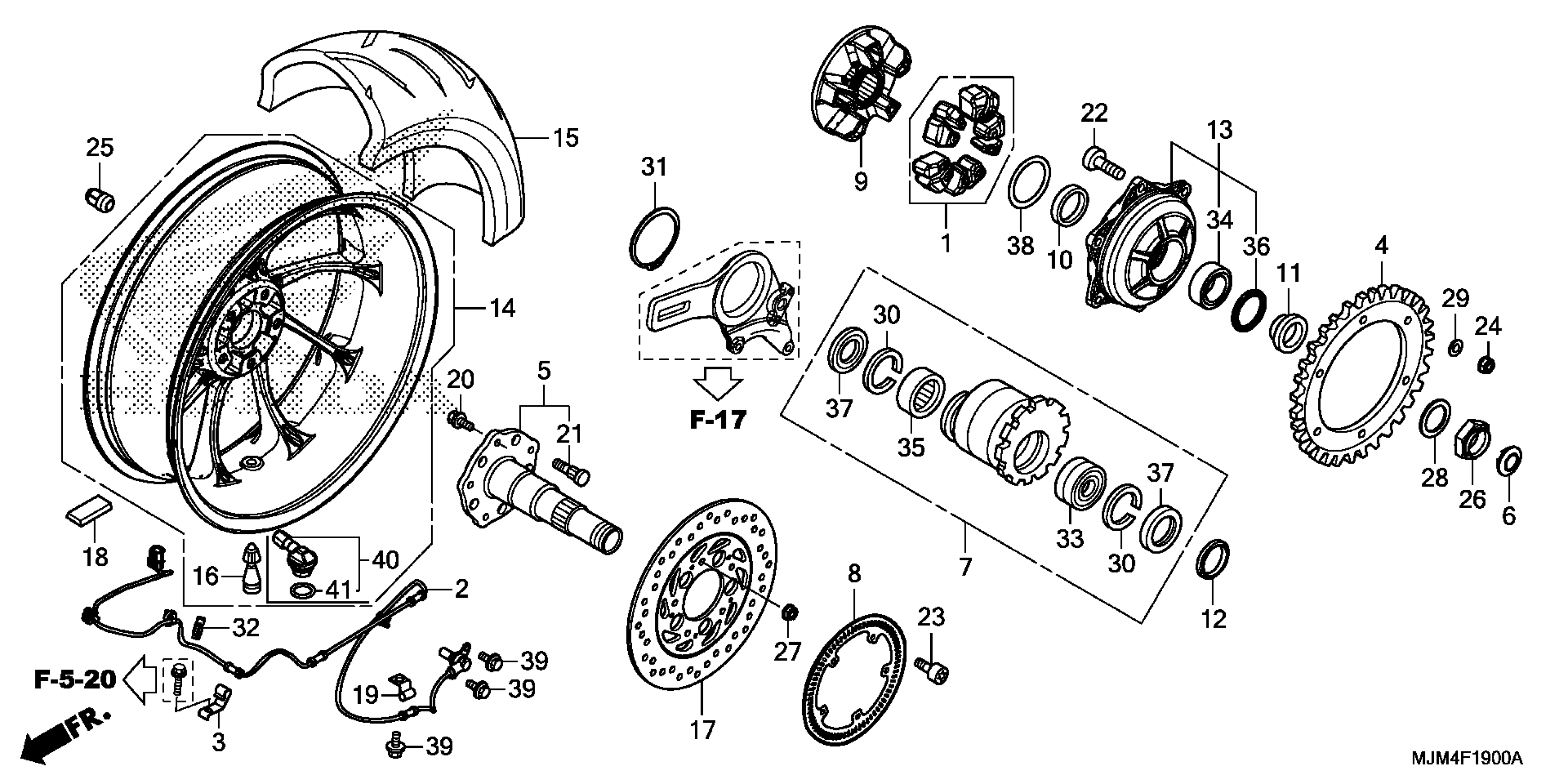

Honda VFR800FD2AC (15) INTERCEPTOR DELUXE, JPN, VIN# JH2RC795-FK100001 TO JH2RC795-FK199999 REAR WHEEL Diagram
