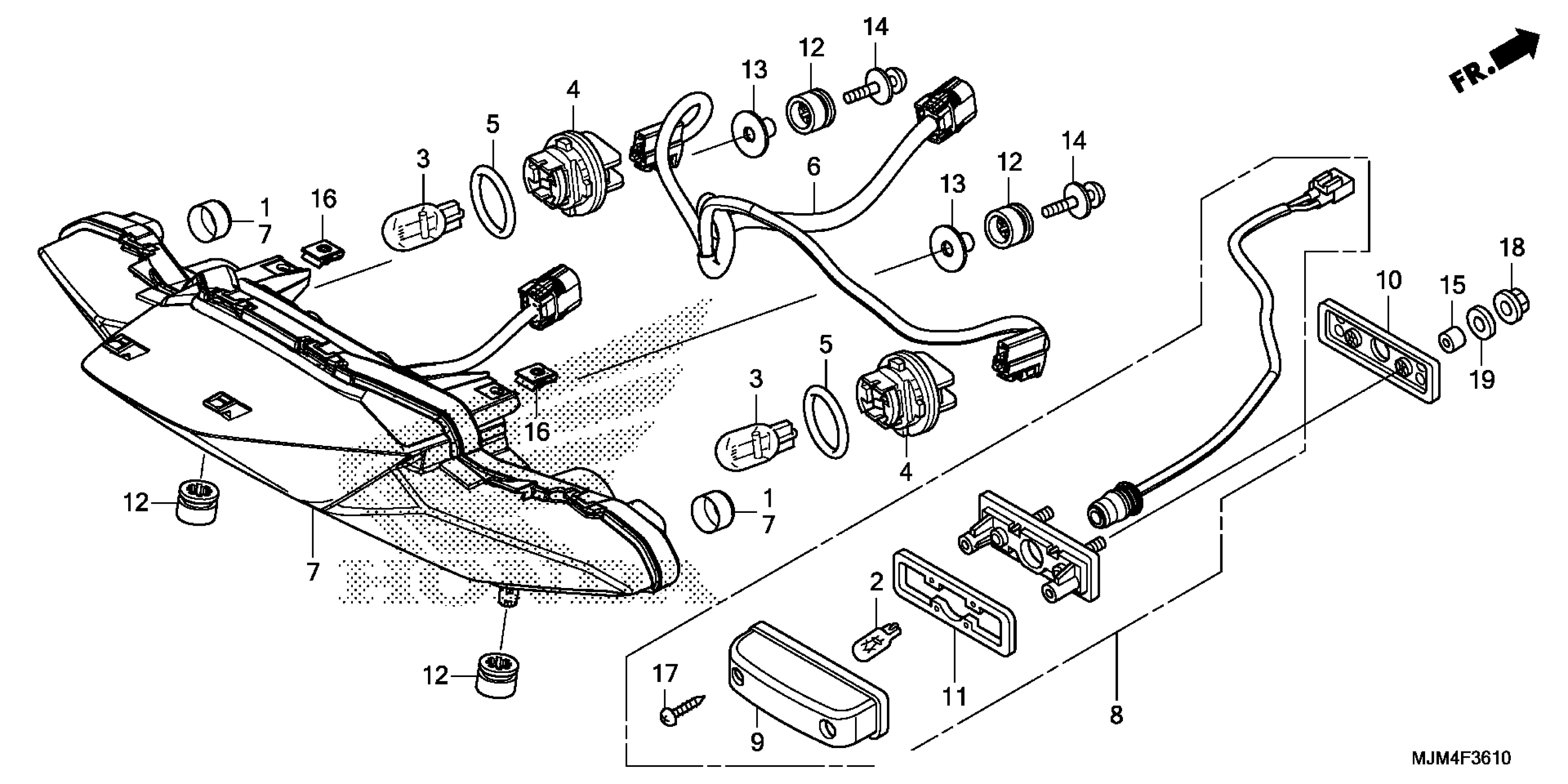

Honda VFR800FD2AC (15) INTERCEPTOR DELUXE, JPN, VIN# JH2RC795-FK100001 TO JH2RC795-FK199999 REAR COMBINATION LIGHT Diagram

PIPE, CP

33113-MBW-D21

$2.41

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.66

BULB (12V 21W) This part replaces 33303-S2R-003.

33303-SCK-003

$7.90

SOCKET

33303-S47-901

$10.28

SEAL, GASKET

33305-S47-003

$4.86

SOCKET

33708-MJM-D11

$58.59

COMBINATION UNIT, RR. (COO)

33710-MJM-305

$419.80

LIGHT ASSY., LICENSE (12V 5W) (COO)

33720-MJM-305

$92.28

COVER, LICENSE

33721-GET-671

$17.41

RUBBER, LICENSE LIGHT

33728-MFL-000

$2.70

GASKET, LENS

33729-MCZ-003

$8.62

RUBBER, SPEEDOMETER MOUNTING

37244-MM4-000

$4.76

COLLAR, SETTING

61104-422-000

$6.44

SCREW-WASHER, PAN (6X28)

90109-MJM-D00

$4.33

COLLAR (7.5X6.8)

90501-437-710

$2.33

NUT, CLIP (5MM)

90677-KAN-961

$3.79

SCREW, TAPPING (4X16)

93901-24480

$0.75

NUT, FLANGE (5MM)

94050-05000

$1.19

WASHER, PLAIN (5MM)

94103-05000

$0.57
