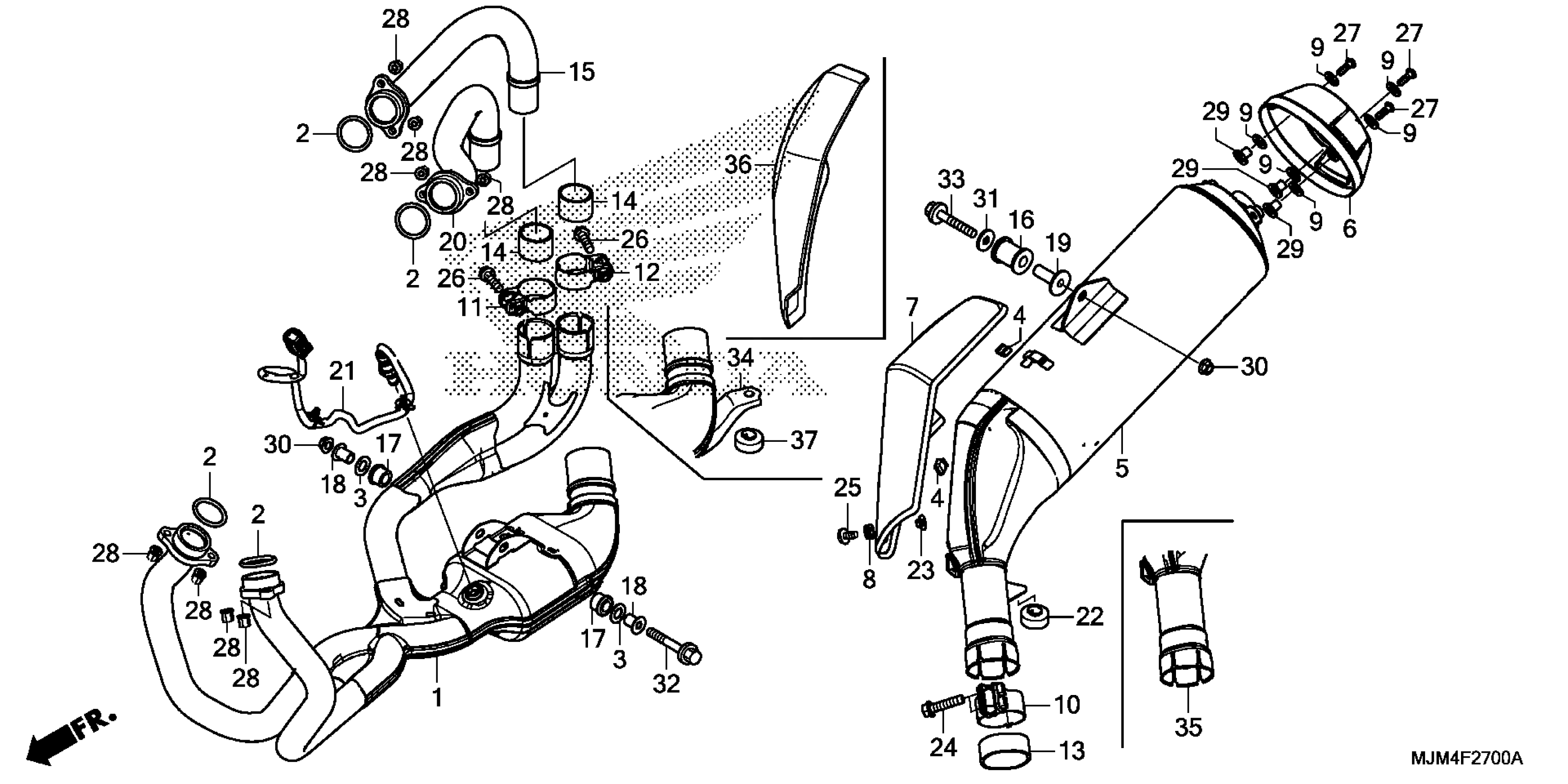

Honda VFR800FD2AC (15) INTERCEPTOR DELUXE, JPN, VIN# JH2RC795-FK100001 TO JH2RC795-FK199999 MUFFLER Diagram

PIPE, EX.

18150-MJM-D00

$1,077.11

GASKET, EX. PIPE

18291-MN5-650

$3.77

GASKET, PROTECTOR

18292-MBG-610

$3.10

RUBBER, PROTECTOR GASKET

18293-MBC-000

$3.78

MUFFLER (COO)

18310-MJM-305

$1,145.74

CAP, MUFFLER TAIL

18315-MJM-D00

$49.79

PROTECTOR, MUFFLER

18325-MJM-D00

$73.57

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$2.18

WASHER, RUBBER (8.5X13X2.5)

18365-MEE-D00

$1.92

BAND, MUFFLER

18371-MGY-640

$30.30

BAND, R. EX. PIPE

18373-MGY-640

$19.62

BAND, L. EX. PIPE

18374-MGY-640

$19.62

GASKET, MUFFLER

18391-ML0-003

$29.28

GASKET, MUFFLER

18391-ML8-000

$9.49

PIPE, R. RR. EX.

18420-MGY-640

$122.10

RUBBER, MUFFLER MOUNTING

18421-MB0-000

$6.34

RUBBER, EX. MOUNTING

18421-MBG-610

$7.03

COLLAR, EX. MOUNTING

18422-MBG-610

$4.62

COLLAR, CHAMBER MOUNTING

18424-MN5-000

$8.53

PIPE, L. RR. EX.

18470-MGY-640

$122.10

SENSOR, OXYGEN

36531-MJM-D01

$239.90

RUBBER, STAND STOPPER

50524-MCW-D00

$4.05

COLLAR, HEAT GUARD SETTING

50609-MCW-D00

$2.48

BOLT, FLANGE (8X35)

90103-KCM-620

$1.57

SCREW, PAN (6X14)

90118-MR1-000

$3.10

BOLT, FLANGE (8X32)

90125-GS9-000

$2.97

BOLT, SPECIAL (6X18) (SUS)

90132-MFJ-D00

$2.31

NUT, SPECIAL (6MM)

90304-HB3-771

$6.07

COLLAR, TAIL CAP

90501-MJM-D00

$2.97

NUT, FLANGE (8MM)

94050-08070

$1.49

WASHER, PLAIN (8MM)

94103-08700

$1.49

BOLT, FLANGE (8X50)

95801-08050-07

$1.85

BOLT, FLANGE (8X45)

96300-08045-08

$1.82
