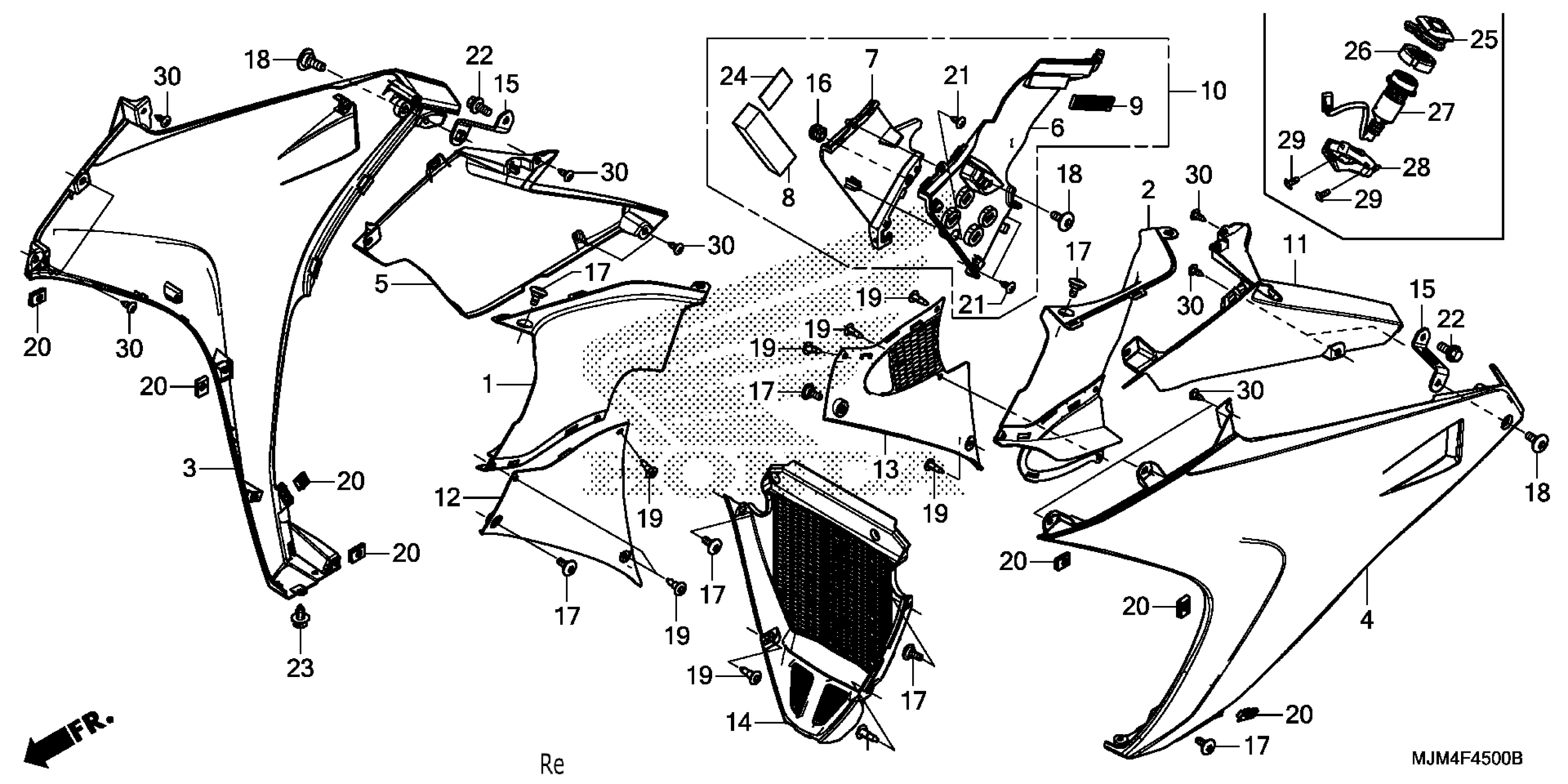

Honda VFR800FD2AC (15) INTERCEPTOR DELUXE, JPN, VIN# JH2RC795-FK100001 TO JH2RC795-FK199999 MIDDLE COWL Diagram

#

Description
Price

1

COWL, R. (UPPER) (INNER)

64280-MJM-D00

$27.75

2

COWL, L. (UPPER) (INNER)

64290-MJM-D00

$27.75

3

COWL, R. MIDDLE *R334* (VICTORY RED) | Victory red R334;

64315-MJM-D00ZA

$377.06

3

COWL, R. MIDDLE *NHB53P* (PEARL GLARE WHITE) | Pearl glare white NHB53P;

64315-MJM-D00ZC

$377.06

4

COWL, L. MIDDLE *R334* (VICTORY RED) | Victory red R334;

64325-MJM-D00ZA

$377.06

4

COWL, L. MIDDLE *NHB53P* (PEARL GLARE WHITE) | Pearl glare white NHB53P;

64325-MJM-D00ZC

$377.06

5

COWL, R. DUCT *NH105* (MAT BLACK)

64330-MJM-D00ZA

$268.71

6

GUIDE A, SIDE AIR

64331-MJM-D10

$20.80

7

GUIDE B, SIDE AIR

64332-MJM-D10

$18.87

8

MAT, SIDE AIR GUIDE

64333-MJM-D10

$4.62

9

FASTENER A, DUAL LOCK (15X70)

64334-MJM-D10

$7.64

10

GUIDE ASSY., SIDE AIR

64336-MJM-D10

$53.74

11

COWL, L. DUCT *NH105* (MAT BLACK)

64340-MJM-D00ZA

$183.64

12

COWL, R. (LOWER) (INNER)

64350-MJM-D00

$9.38

13

COWL, L. (LOWER) (INNER)

64360-MJM-D00

$8.97

14

GRILL, RADIATOR

64390-MJM-D10

$52.61

15

STAY, MIDDLE COWL

64551-MJM-D10

$5.09

16

GROMMET, WIRE CORD

80101-166-000

$1.61

17

SCREW, SPECIAL (5X14)

90101-MJJ-D30

$2.94

18

SCREW, PAN (6X14)

90106-MCW-D00

$1.93

19

CLIP, BUMPER SEAL

90116-SP0-003

$4.40

20

NUT, CLIP (5MM)

90677-KAN-961

$3.79

21

SCREW, TAPPING (4X10)

93903-24280

$1.23

22

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

23

CLIP, BODY

90683-MBW-003

$1.93

24

RUBBER B

17517-MFC-640

$3.57

30

SCREW, TAPPING (4X10)

93903-24280

$1.23
