Description

Price

1

GUIDE, CLUTCH HOSE

22911-MJM-D10

$20.74

2

GUIDE, THROTTLE CABLE (A)

22912-MJM-D10

$20.18

3

SEAL, IGNITION SWITCH

30433-MBW-602

$2.84

4

KEY SET This part replaces 35010-MJM-A00.

35010-MJM-A02

$503.26

5

SWITCH ASSY. This part replaces 35100-MJM-A01.

35100-MJM-A02

$213.44

6

BASE, CONTACT

35101-MJM-D01

$86.36

7

COVER, COMBINATION SWITCH

35106-MAT-A00

$10.52

8

EMBLEM, KEY | (Optional).

35113-MGP-000

$4.17

9

KEY, BLANK | (Optional).

35121-MGP-A93

$23.42

9

KEY, CUT INCL. OVERNIGHT SHIP (PLEASE SEE WAVE CUTTING SERV. REQUEST FORM IN IN) | (Optional).

35121-MGP-A93RUSH

Unavailable

9

KEY, CUT INCL. STD SHIPPING (PLEASE SEE WAVE CUTTING SERV. REQUEST FORM IN IN) | (Optional).

35121-MGP-A93STD

Unavailable

10

STAY A, FR. BRAKE HOSE CLAMP

45163-MJM-D00

$16.70

11

HANDLEBAR, R. This part replaces 53100-MJM-305.

53100-MJM-D00

$239.79

12

WEIGHT B, HANDLE

53104-KT7-010

$21.27

13

WEIGHT, HANDLEBAR

53104-MY9-751

$23.94

14

WEIGHT B, HANDLEBAR

53105-KV3-000

$17.27

15

RUBBER A, HANDLE WEIGHT

53106-MJ0-000

$3.92

16

RUBBER B, HANDLE WEIGHT

53107-MJ0-000

$3.77

17

RING, HANDLE WEIGHT SNAP

53108-MJ0-000

$5.14

18

PIPE, L. HANDLE This part replaces 53150-MJM-305.

53150-MJM-D00

$239.79

19

CAP, STEERING STEM NUT

53232-MJ4-670

$13.43

20

BRIDGE, FORK TOP

53300-MJM-D00

$251.41

21

EMBLEM, PRODUCT (UEHARA)

86150-KPG-902

$4.02

22

SCREW-WASHER (5X22)

90020-MBW-610

$2.56

23

BOLT, SOCKET (8X25)

90106-MJM-D10

$2.41

24

BOLT, ONE-WAY (8MM)

90107-MBG-000

$2.92

25

BOLT, FLANGE (8X40)

90108-MR7-000

$5.05

26

SCREW, OVAL (6X50)

90191-MJ0-000

$3.42

27

NUT, STEERING STEM

90304-MJ4-670

$15.40

28

SCREW, TAPPING (3X16)

91059-KY2-711

$2.97

29

CAP, SOCKET BOLT

91456-371-770

$3.47

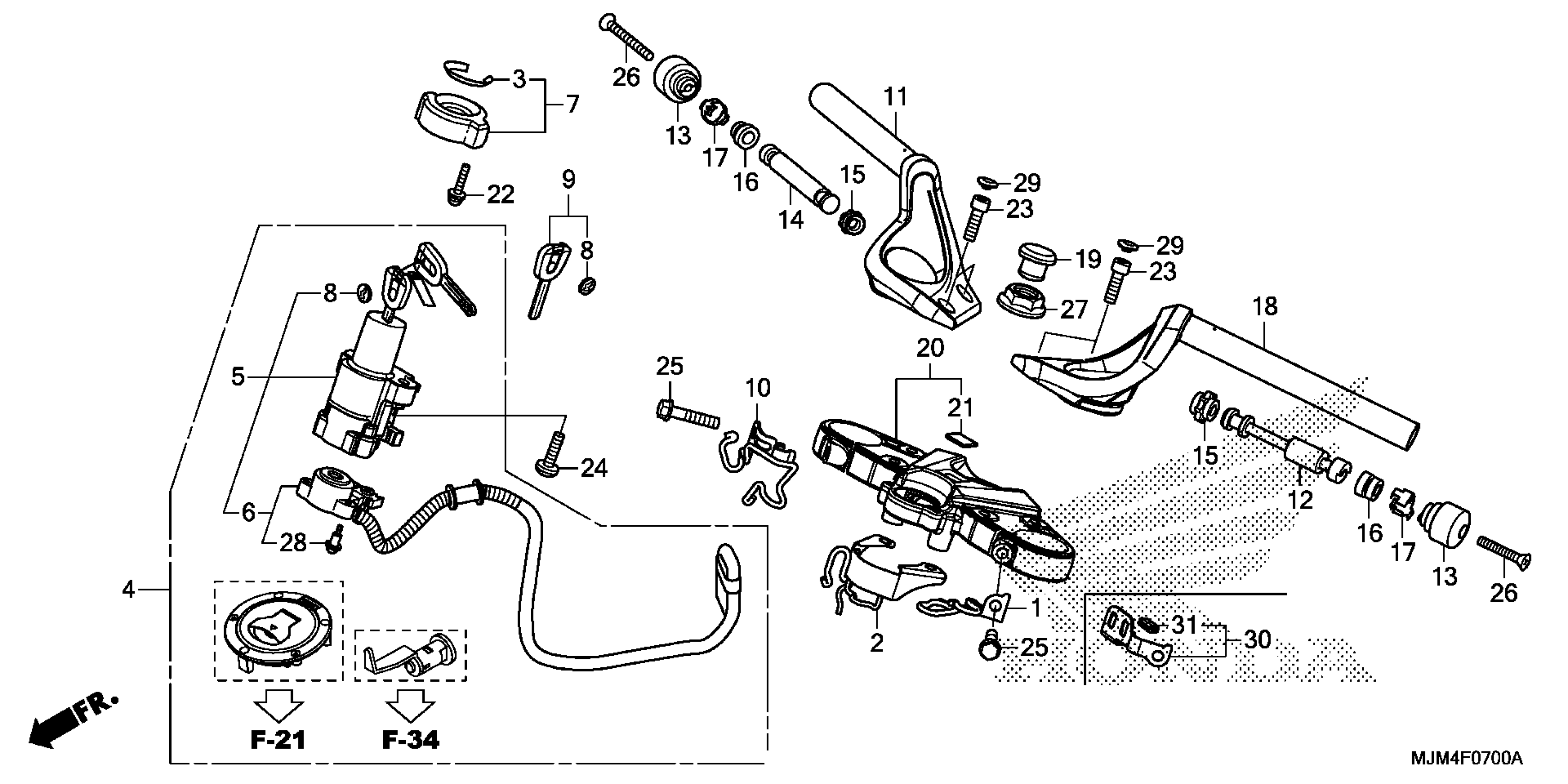

Honda VFR800FD2AC (15) INTERCEPTOR DELUXE, JPN, VIN# JH2RC795-FK100001 TO JH2RC795-FK199999 HANDLEBAR + TOP BRIDGE Diagram
