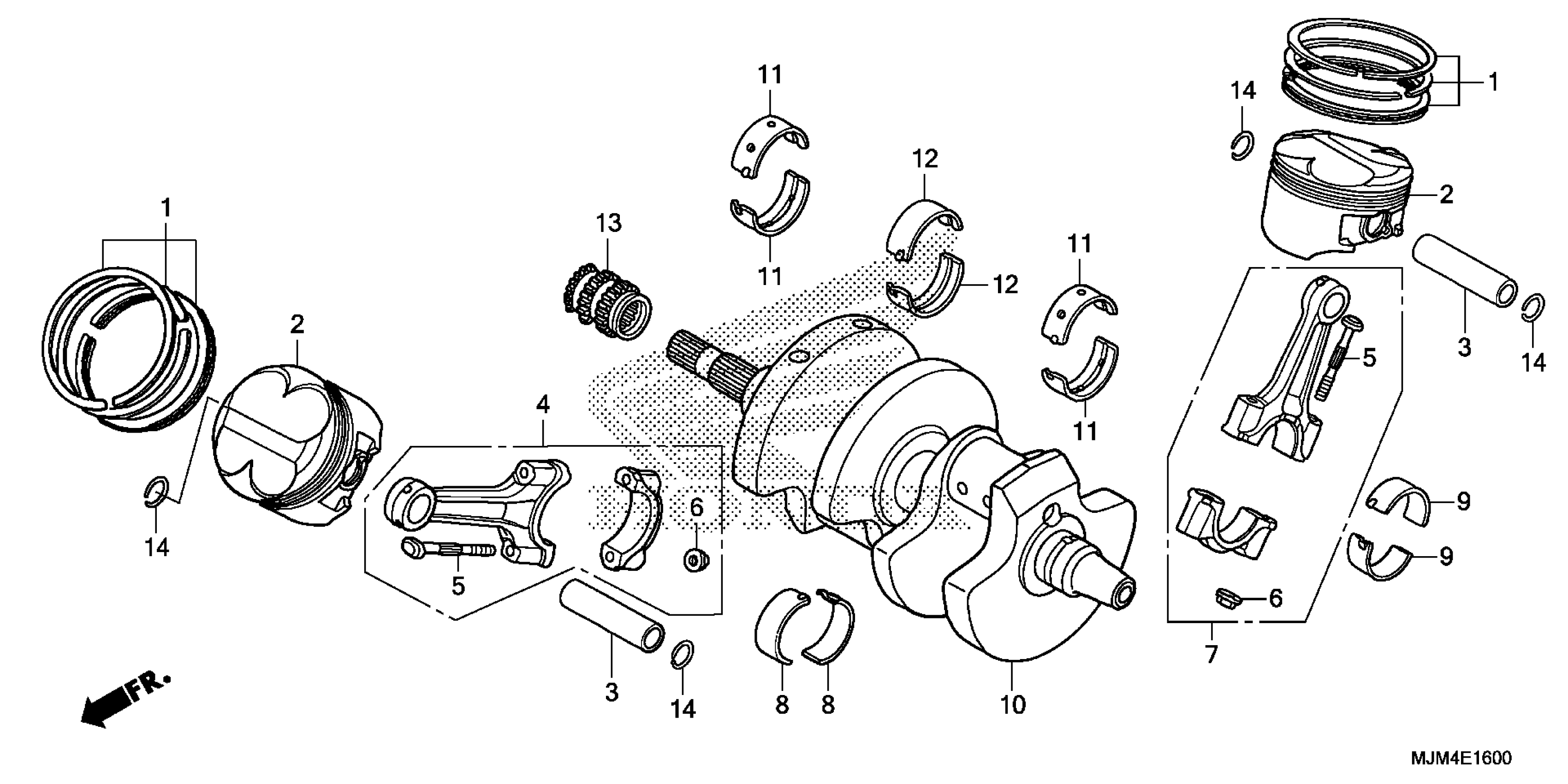

Honda VFR800FD2AC (15) INTERCEPTOR DELUXE, JPN, VIN# JH2RC795-FK100001 TO JH2RC795-FK199999 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

RING SET, PISTON (STD) (RIKEN)

13011-MW4-305

$56.41

1

RING SET, PISTON (OVER SIZE) (0.25) (RIKEN) | (Optional).

13021-MW4-305

$59.85

1

RING SET, PISTON (OVER SIZE) (0.50) (RIKEN) | (Optional).

13031-MW4-305

$57.28

2

PISTON (STD)

13101-MJM-D00

$93.41

2

PISTON (OVER SIZE) (0.25) | (Optional).

13102-MJM-D00

$97.15

2

PISTON (OVER SIZE) (0.50) | (Optional).

13103-MJM-D00

$97.15

3

PIN, PISTON

13111-MBG-000

$18.34

4

ROD ASSY., FR. CONNECTING

13210-MBG-000

$261.11

5

BOLT, CONNECTING ROD

13213-ML7-020

$8.00

6

NUT, CONNECTING ROD

13215-ML7-000

$3.89

7

ROD ASSY., RR. CONNECTING

13220-MBG-000

$261.11

8

BEARING A, FR. CONNECTING ROD (BLUE)

13224-ML7-690

$12.20

8

BEARING B, FR. CONNECTING ROD (BLACK)

13225-ML7-690

$12.74

8

BEARING C, FR. CONNECTING ROD (BROWN)

13226-ML7-690

Unavailable

8

BEARING D, FR. CONNECTING ROD (GREEN)

13227-ML7-690

Unavailable

8

BEARING E, FR. CONNECTING ROD (YELLOW)

13228-ML7-690

$13.73

9

BEARING A, RR. CONNECTING ROD (BLUE/BLUE)

13234-ML7-690

$12.74

9

BEARING B, RR. CONNECTING ROD (BLACK/BLACK)

13235-ML7-690

Unavailable

9

BEARING C, RR. CONNECTING ROD (BROWN/BROWN)

13236-ML7-690

$13.62

9

BEARING D, RR. CONNECTING ROD (GREEN/GREEN)

13237-ML7-690

$12.74

9

BEARING E, RR. CONNECTING ROD (YELLOW/YELLOW)

13238-ML7-690

Unavailable

10

CRANKSHAFT

13310-MCW-010

$871.89

11

BEARING A, CRANKSHAFT SIDE (BLUE)

13313-MCW-000

$11.93

11

BEARING B, CRANKSHAFT SIDE (BLACK)

13314-MCW-000

$11.62

11

BEARING C, CRANKSHAFT SIDE (BROWN)

13315-MCW-000

$11.13

11

BEARING D, CRANKSHAFT SIDE (GREEN)

13316-MCW-000

$11.13

11

BEARING E, CRANKSHAFT SIDE (YELLOW)

13317-MCW-000

$11.13

12

BEARING A, CRANKSHAFT CENTER (BLUE)

13323-MCW-000

$11.13

12

BEARING B, CRANKSHAFT CENTER (BLACK)

13324-MCW-000

$11.62

12

BEARING C, CRANKSHAFT CENTER (BROWN)

13325-MCW-000

$11.13

12

BEARING D, CRANKSHAFT CENTER (GREEN)

13326-MCW-000

$11.13

12

BEARING E, CRANKSHAFT CENTER (YELLOW)

13327-MCW-000

$11.13

13

SPROCKET, TIMING (19T)

14406-MCW-000

$49.25

14

CLIP, PISTON PIN (17MM)

94601-17000

$1.56
