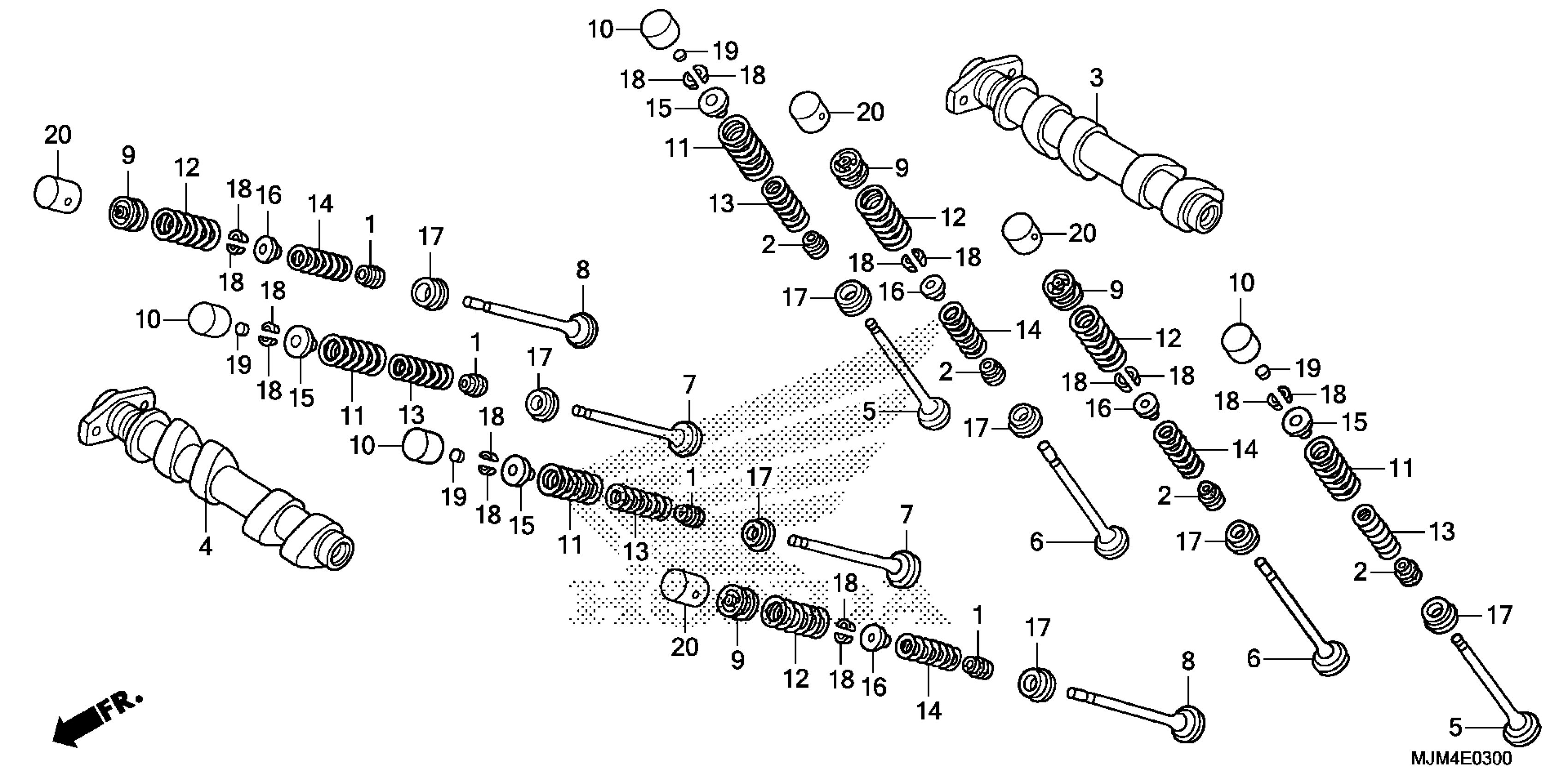

Honda VFR800FD2AC (15) INTERCEPTOR DELUXE, JPN, VIN# JH2RC795-FK100001 TO JH2RC795-FK199999 CAMSHAFT + VALVE (FR.) Diagram

#

Description
Price

1

SEAL, EX. VALVE STEM (ARAI)

12208-ML0-721

$10.62

2

SEAL, VALVE STEM (ARAI)

12209-ML0-722

$7.64

3

CAMSHAFT, FR. IN.

14110-MJM-D00

$247.21

4

CAMSHAFT, FR. EX.

14130-MCW-D00

$241.87

5

VALVE A, IN.

14711-MCW-000

$35.44

6

VALVE B, IN.

14712-MCW-000

$34.16

7

VALVE A, EX.

14721-MCW-000

$59.79

8

VALVE B, EX.

14722-MCW-000

$57.20

9

HOLDER SET, SLIDE PIN

14730-MCW-000

$71.87

10

LIFTER, VALVE

14731-MT4-010

$49.39

11

SPRING A, VALVE (OUTER) (GREEN)

14751-MCW-D00

$7.54

12

SPRING B, VALVE (OUTER) (WHITE)

14752-MCW-000

$8.72

13

SPRING A, VALVE (INNER) (GREEN)

14761-MCW-000

$5.69

14

SPRING B, VALVE (INNER) (WHITE)

14762-MCW-000

$7.31

15

RETAINER, VALVE SPRING

14771-KW3-900

$11.77

16

RETAINER, VALVE SPRING

14771-MCW-000

$8.80

17

SEAT, VALVE SPRING

14775-MCW-000

$4.61

18

COTTER, VALVE

14781-ML0-720

$3.45

19

SHIM, TAPPET (1.200)

14901-KT7-013

$9.48

19

SHIM, TAPPET (1.225)

14902-KT7-013

$9.48

19

SHIM, TAPPET (1.250)

14903-KT7-013

$9.48

19

SHIM, TAPPET (1.275)

14904-KT7-013

$9.48

19

SHIM, TAPPET (1.300)

14905-KT7-013

$9.48

19

SHIM, TAPPET (1.325)

14906-KT7-013

$9.05

19

SHIM, TAPPET (1.350)

14907-KT7-013

$9.48

19

SHIM, TAPPET (1.375)

14908-KT7-013

$9.48

19

SHIM, TAPPET (1.400)

14909-KT7-013

$9.48

19

SHIM, TAPPET (1.425)

14910-KT7-013

$9.48

19

SHIM, TAPPET (1.450)

14911-KT7-013

$9.48

19

SHIM, TAPPET (1.475)

14912-KT7-013

$9.48

19

SHIM, TAPPET (1.500)

14913-KT7-013

$9.48

19

SHIM, TAPPET (1.525)

14914-KT7-013

$9.48

19

SHIM, TAPPET (1.550)

14915-KT7-013

$9.48

19

SHIM, TAPPET (1.575)

14916-KT7-013

$9.48

19

SHIM, TAPPET (1.600)

14917-KT7-013

$8.92

19

SHIM, TAPPET (1.625)

14918-KT7-013

$8.92

19

SHIM, TAPPET (1.650)

14919-KT7-013

$8.92

19

SHIM, TAPPET (1.675)

14920-KT7-013

$8.92

19

SHIM, TAPPET (1.700)

14921-KT7-013

$8.92

19

SHIM, TAPPET (1.725)

14922-KT7-013

$8.92

19

SHIM, TAPPET (1.750)

14923-KT7-013

$8.92

19

SHIM, TAPPET (1.775)

14924-KT7-013

$8.92

19

SHIM, TAPPET (1.800)

14925-KT7-013

$8.92

19

SHIM, TAPPET (1.825)

14926-KT7-013

$8.92

19

SHIM, TAPPET (1.850)

14927-KT7-013

$9.48

19

SHIM, TAPPET (1.875)

14928-KT7-013

$8.92

19

SHIM, TAPPET (1.900)

14929-KT7-013

$8.92

19

SHIM, TAPPET (1.925)

14930-KT7-013

$8.92

19

SHIM, TAPPET (1.950)

14931-KT7-013

$8.92

19

SHIM, TAPPET (1.975)

14932-KT7-013

$9.48

19

SHIM, TAPPET (2.000)

14933-KT7-013

$8.92

19

SHIM, TAPPET (2.025)

14934-KT7-013

$8.92

19

SHIM, TAPPET (2.050)

14935-KT7-013

$8.92

19

SHIM, TAPPET (2.075)

14936-KT7-013

$9.48

19

SHIM, TAPPET (2.100)

14937-KT7-013

$8.92

19

SHIM, TAPPET (2.125)

14938-KT7-013

$8.92

19

SHIM, TAPPET (2.150)

14939-KT7-013

$8.92

19

SHIM, TAPPET (2.175)

14940-KT7-013

$8.92

19

SHIM, TAPPET (2.200)

14941-KT7-013

$8.92

19

SHIM, TAPPET (2.225)

14942-KT7-013

$8.92

19

SHIM, TAPPET (2.250)

14943-KT7-013

$8.92

19

SHIM, TAPPET (2.275)

14944-KT7-013

$9.48

19

SHIM, TAPPET (2.300)

14945-KT7-013

$9.48

19

SHIM, TAPPET (2.325)

14946-KT7-013

$9.48

19

SHIM, TAPPET (2.350)

14947-KT7-013

$9.48

19

SHIM, TAPPET (2.375)

14948-KT7-013

$9.48

19

SHIM, TAPPET (2.400)

14949-KT7-013

$9.48

19

SHIM, TAPPET (2.425)

14950-KT7-013

$8.92

19

SHIM, TAPPET (2.450)

14951-KT7-013

$9.48

19

SHIM, TAPPET (2.475)

14952-KT7-013

$9.48

19

SHIM, TAPPET (2.500)

14953-KT7-013

$8.92

19

SHIM, TAPPET (2.525)

14954-KT7-013

$9.48

19

SHIM, TAPPET (2.550)

14955-KT7-013

$9.48

19

SHIM, TAPPET (2.575)

14956-KT7-013

$9.48

19

SHIM, TAPPET (2.600)

14957-KT7-013

$9.48

19

SHIM, TAPPET (2.625)

14958-KT7-013

$9.48

19

SHIM, TAPPET (2.650)

14959-KT7-013

$8.92

19

SHIM, TAPPET (2.675)

14960-KT7-013

$9.48

19

SHIM, TAPPET (2.700)

14961-KT7-013

$8.92

19

SHIM, TAPPET (2.725)

14962-KT7-013

$9.05

19

SHIM, TAPPET (2.750)

14963-KT7-013

$9.48

19

SHIM, TAPPET (2.775)

14964-KT7-013

$9.48

19

SHIM, TAPPET (2.800)

14965-KT7-013

$8.92

19

SHIM, TAPPET (2.825)

14966-KT7-013

$9.48

19

SHIM, TAPPET (2.850)

14967-KT7-013

$9.48

19

SHIM, TAPPET (2.875)

14968-KT7-013

$9.48

19

SHIM, TAPPET (2.900)

14969-KT7-013

$8.92

20

LIFTER B, VALVE (2.65)

14901-MCW-000

$55.02

20

LIFTER B, VALVE (2.72)

14902-MCW-000

$55.02

20

LIFTER B, VALVE (2.79)

14903-MCW-000

$49.26

20

LIFTER B, VALVE (2.86)

14904-MCW-000

$52.25

20

LIFTER B, VALVE (2.93)

14905-MCW-000

$49.98

20

LIFTER B, VALVE (3.00)

14906-MCW-000

$52.64

20

LIFTER B, VALVE (3.07)

14907-MCW-000

$49.98

20

LIFTER B, VALVE (3.14)

14908-MCW-000

$49.98

20

LIFTER B, VALVE (3.21)

14909-MCW-000

$49.98

20

LIFTER B, VALVE (3.28)

14910-MCW-000

$49.98

20

LIFTER B, VALVE (3.35)

14911-MCW-000

$49.98
