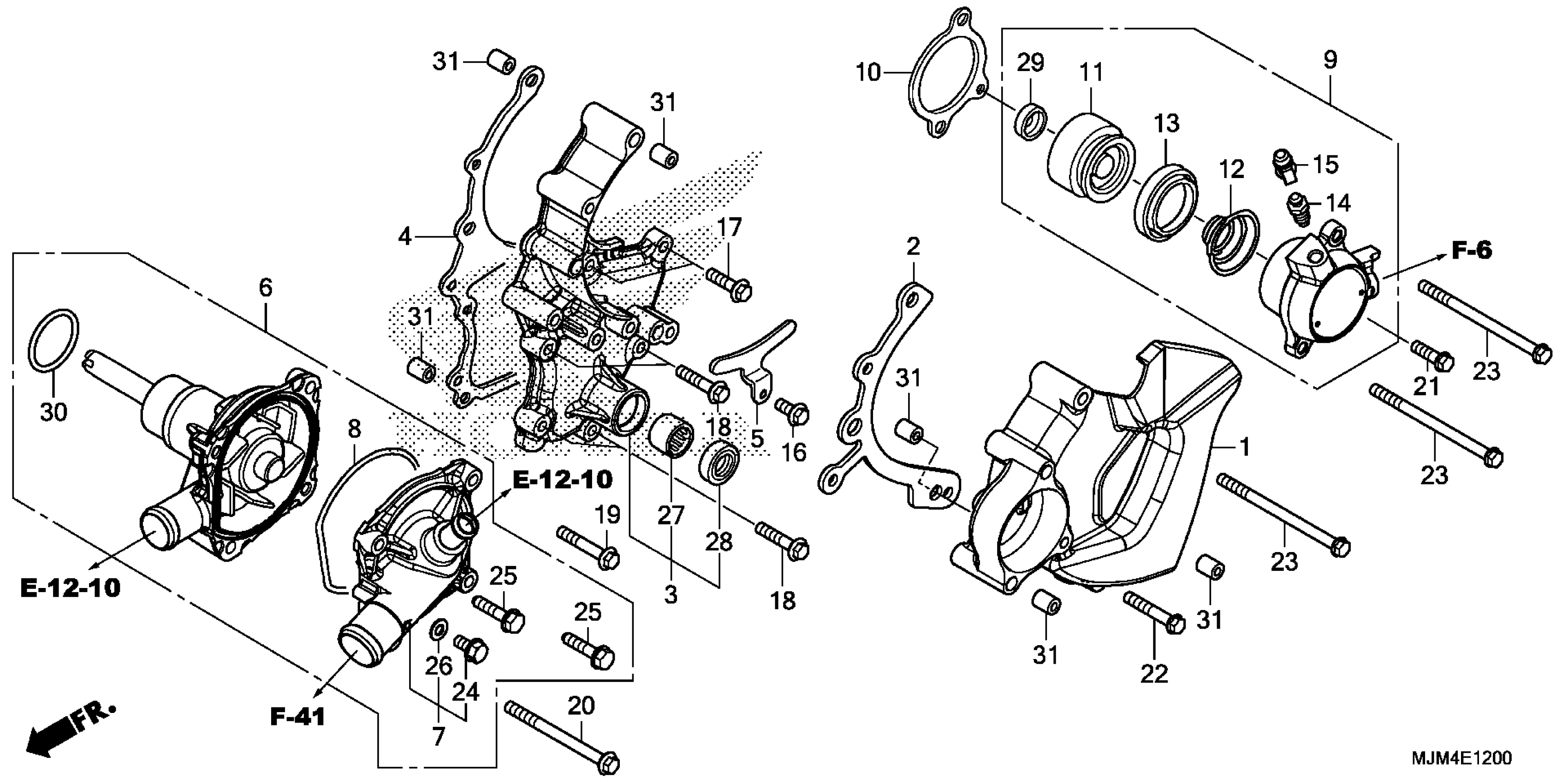

Honda VFR800FAC (15) INTERCEPTOR, JPN, VIN# JH2RC791-FK100001 TO JH2RC791-FK199999 WATER PUMP + CLUTCH SLAVE CYLINDER Diagram

COVER ASSY., L.

11340-MJM-D00

$158.34

PLATE, DRIVE CHAIN GUIDE

11365-MJM-D00

$9.33

COVER, CHANGE

11630-MJM-D00

$82.51

GASKET, CHANGE COVER This part replaces 11632-MW4-010.

11632-MW4-020

$22.92

PLATE, CHANGE COVER

11633-MW4-000

$12.10

WATER PUMP

19200-MJM-D00

$245.02

COVER, WATER PUMP

19220-MJM-D00

$101.56

GASKET, WATER PUMP COVER

19226-MCP-900

$3.80

CYLINDER ASSY., CLUTCH SLAVE

22860-MCW-000

$121.20

GASKET, SLAVE CYLINDER

22862-MGJ-D00

$4.98

PISTON, SLAVE CYLINDER

22863-MG9-003

$29.05

SPRING, SLAVE CYLINDER

22864-MT7-016

$6.21

CUP

22865-MG9-003

$12.58

SCREW, BLEEDER

22866-MF2-711

$5.12

CAP, BLEEDER

43353-461-771

$5.05

BOLT, FLANGE (6X12) (NSHF)

90006-GHB-610

$1.92

BOLT, FLANGE (6X22) (NSHF)

90006-GHB-660

$1.80

BOLT, FLANGE (6X28) (NSHF)

90006-GHB-680

$2.03

BOLT, FLANGE (6X35) (NSHF)

90006-GHB-700

$1.92

BOLT, FLANGE (6X75) (NSHF)

90006-GHB-780

$2.03

BOLT, FLANGE (6X20)

90011-GHB-650

$1.80

BOLT, FLANGE (6X35)

90011-GHB-700

$1.80

BOLT, FLANGE (6X95)

90011-GHB-820

$2.72

BOLT, FLANGE (6X12) (CT200)

90013-883-000

$1.54

BOLT, FLANGE (6X25)

90121-MV9-670

$2.92

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

BEARING, NEEDLE (14MM) (TOYO)

91101-121-691

$27.17

OIL SEAL (14X22X5)

91203-KK3-830

$3.81

OIL SEAL (8X18X5)

91209-MB0-003

$4.06

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.92

PIN, DOWEL (8X14)

94301-08140

$2.25
