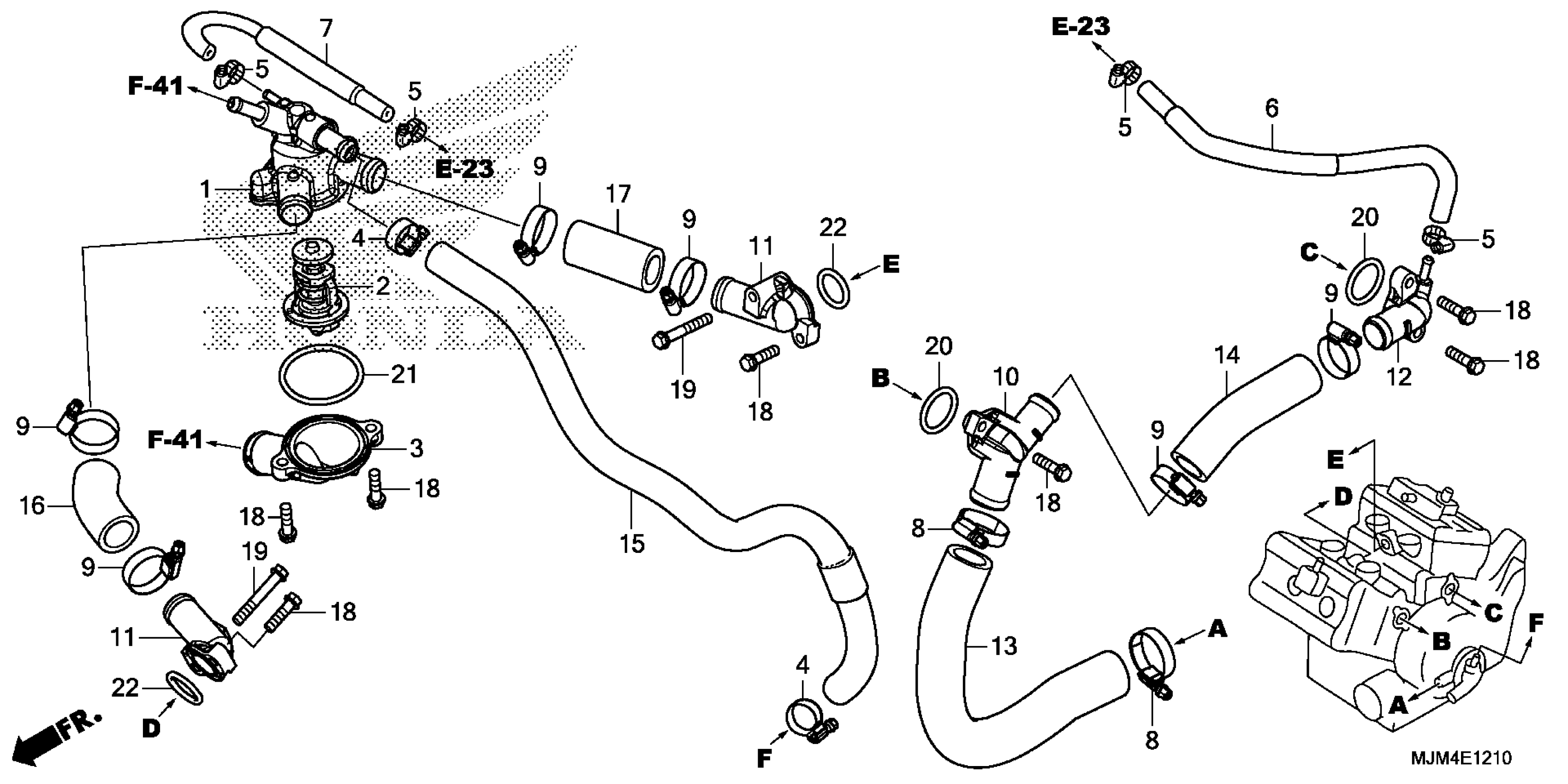

Honda VFR800FAC (15) INTERCEPTOR, JPN, VIN# JH2RC791-FK100001 TO JH2RC791-FK199999 WATER PIPE Diagram

CASE, THERMOSTAT

19310-MCW-000

$131.46

THERMOSTAT

19320-MFJ-D01

$34.46

COVER, THERMOSTAT

19320-MJM-D00

$38.85

CLAMP A, WATER HOSE

19505-KS6-700

$11.06

CLAMP, RADIATOR HOSE

19507-MAT-000

$10.76

HOSE, WATER JOINT

19511-MJM-D00

$13.84

HOSE, THERMOBODY

19512-MCW-010

$9.11

CLAMP, HOSE (24-32MM)

19516-ML7-691

$14.40

CLAMP, HOSE (22-29MM)

19517-ML7-691

$11.62

JOINT A, WATER

19522-MW4-000

$19.28

JOINT, WATER

19523-MT3-000

$13.84

JOINT B, WATER

19524-MBG-D00

$19.54

HOSE A, WATER

19525-MCW-H00

$25.21

HOSE B, WATER

19526-MCW-H00

$9.08

HOSE, WATER BYPASS

19527-MCW-000

$73.82

HOSE, FR. HEAD WATER

19528-MCW-H00

$6.31

HOSE, RR. HEAD WATER

19529-MCW-H00

$6.93

BOLT, FLANGE (6X22) This part replaces 90010-GHB-660.

96001-06022-00

$1.49

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

BOLT, FLANGE (6X40) This part replaces 90010-GHB-710.

96001-06040-00

$2.16

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

O-RING (23X2.4)

91304-MCP-900

$2.89

O-RING (47.5X2)

91311-MCP-901

$7.99

O-RING (21.2X2.4) (ARAI) This part replaces 91331-MCP-900.

91331-PC9-003

$3.13
