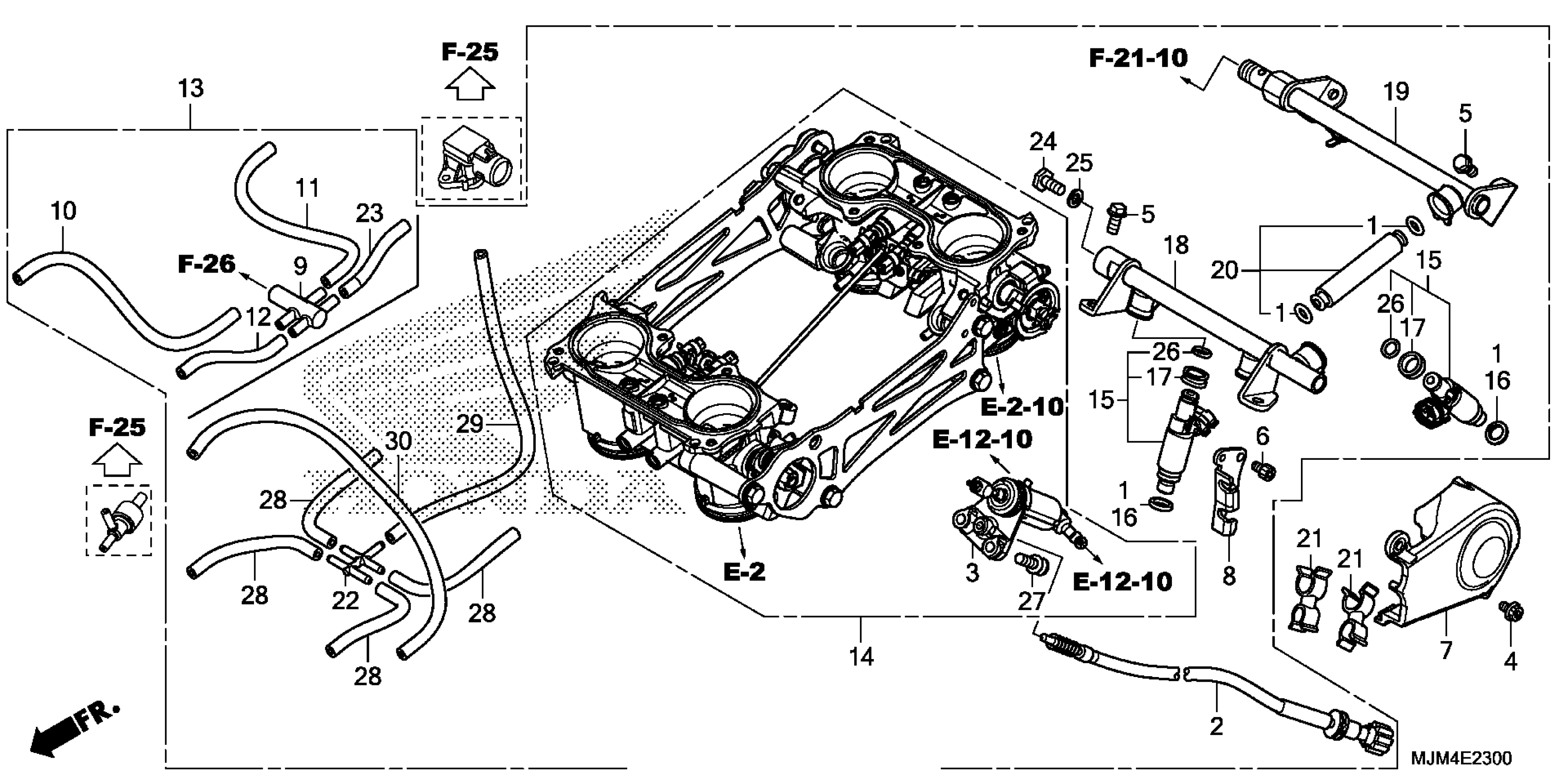

Honda VFR800FAC (15) INTERCEPTOR, JPN, VIN# JH2RC791-FK100001 TO JH2RC791-FK199999 THROTTLE BODY Diagram

#

Description
Price

1

GASKET SET

16010-MGY-641

$11.28

2

SCREW SET, STOP

16029-MGY-641

$44.85

3

WAX ASSY.

16044-MCW-003

$73.41

4

BOLT, COVER

16080-HP1-601

$4.07

5

BOLT, FLANGE (6X12)

16080-MCJ-003

$1.54

6

BOLT, SOCKET (5X8)

16081-MCW-003

$2.46

7

COVER, THROTTLE

16150-MJM-D00

$11.13

8

STAY, WIRE

16169-MJM-D01

$13.77

9

T-JOINT

16180-ME5-761

$31.64

10

TUBE

16197-MBW-L11

$5.64

11

TUBE

16198-MCW-L01

$4.89

12

TUBE

16199-MCW-L01

$3.44

13

BODY ASSY., THROTTLE (GQ3ZA A)

16400-MJM-A01

$2,275.89

14

BODY ASSY., THROTTLE

16401-MJM-A01

$2,015.11

15

INJECTOR ASSY., FUEL

16450-MEL-003

$149.07

16

SEAL RING, INJECTOR

16472-MCW-000

$2.39

17

CUSHION RING, INJECTOR

16473-P7A-004

$6.90

18

PIPE, FR. FUEL

16610-MGY-641

$67.72

19

PIPE, RR. FUEL

16620-MCW-003

$65.44

20

PIPE SET, FUEL

16630-MCW-003

$31.26

21

CLAMP, HOSE

16965-VM0-771

$2.83

22

JOINT, FIVE-WAY

17201-MCJ-003

$8.61

23

TUBE

19199-MCW-L01

$2.61

24

BOLT, SEALING (6MM)

90009-PP4-E01

$6.54

25

WASHER, SEALING (6MM)

90430-PD6-003

$4.01

26

O-RING (7.8X1.9)

91301-P7A-004

$3.35

27

SCREW-WASHER (6X20)

93892-06020-00

$1.49

27

SCREW-WASHER (6X20) This part replaces 93892-06020-10.

93892-06020-00

$1.49

28

BULK HOSE, VACUUM (3.5X1000) (3.5X90)

95005-35001-20M

$9.67

29

BULK HOSE, VACUUM (3.5X1000) (3.5X240)

95005-35001-20M

$9.67

30

BULK HOSE, VACUUM (3.5X1000) (3.5X300)

95005-35001-20M

$9.67
