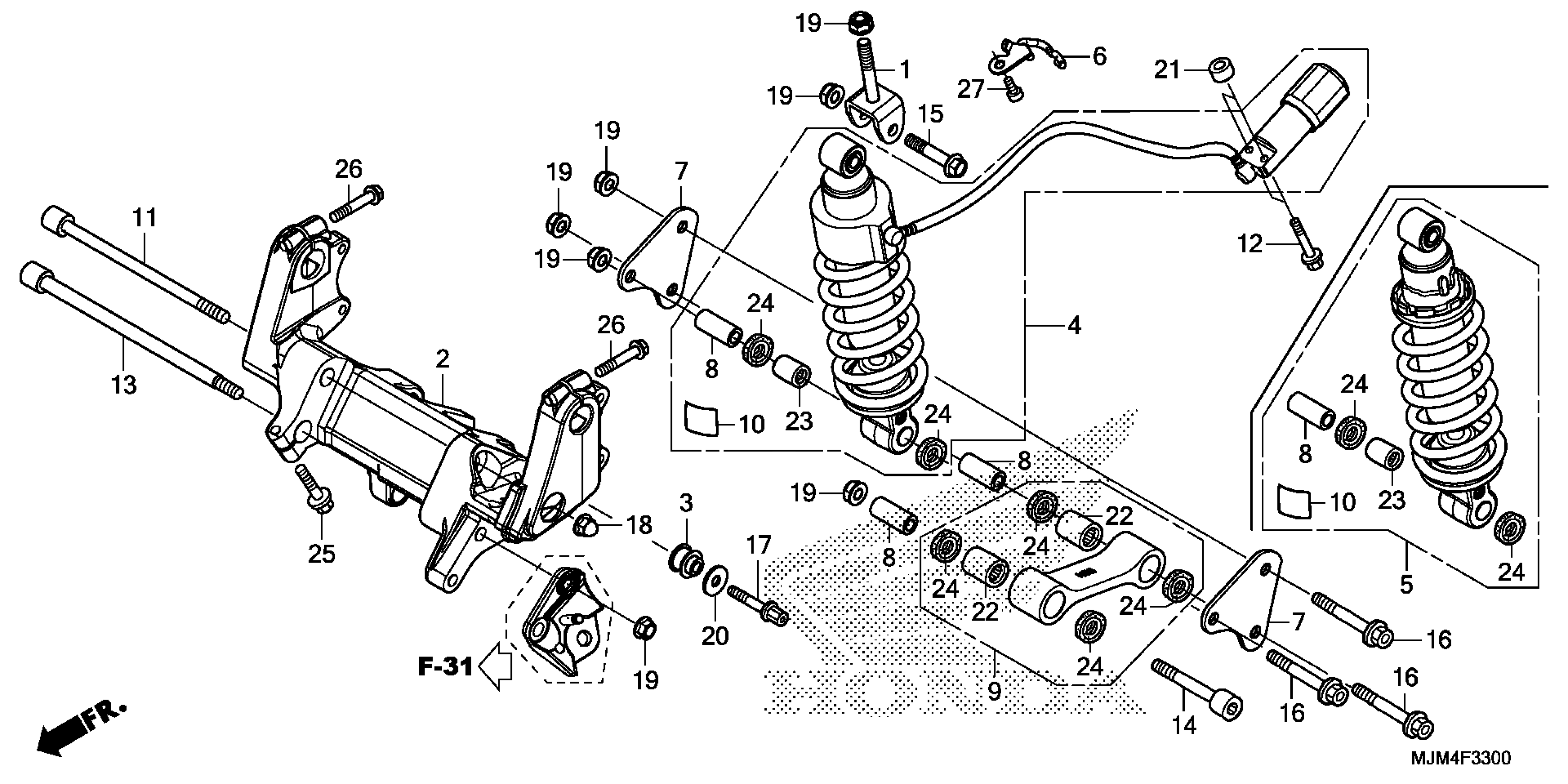

Honda VFR800FAC (15) INTERCEPTOR, JPN, VIN# JH2RC791-FK100001 TO JH2RC791-FK199999 REAR SHOCK ABSORBER Diagram

BRACKET, RR. CUSHION

50233-MZ7-000

$17.01

BRACKET, RR. CUSHION (LOWER)

50475-MCW-D00

$356.10

COLLAR, L. MAIN STAND

50504-MBG-000

$14.29

CUSHION ASSY., RR. (COO)

52400-MJM-305

$707.49

PLATE, RR. SHOCK ABSORBER LINK

52461-MJM-D01

$18.96

COLLAR, CUSHION CONNECTING ROD

52463-MAL-G00

$10.72

ROD SUB-ASSY., CUSHION CONNECTING

52475-MBG-000

$113.85

LABEL, RR. DAMPER (ENGLISH)

87516-KV6-610

$4.56

BOLT, SOCKET (10X190)

90101-MCW-D00

$11.74

BOLT, SOCKET (10X230)

90102-MCW-D00

$18.06

BOLT, SOCKET (10X70)

90110-MR7-000

$7.78

BOLT, FLANGE (10X52)

90118-MFR-670

$4.69

BOLT, FLANGE (10X64)

90105-GE3-760

$11.84

BOLT, SPECIAL (10X47)

90130-MCW-D00

$5.84

NUT, FLANGE CAP (10MM)

90202-MR1-000

$3.06

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.52

WASHER, EX. MANIFOLD

90501-579-020

$5.21

BEARING, NEEDLE (KOYO)

91071-KV3-005

$22.84

BEARING, NEEDLE (17X24X20) (NTN)

91072-KT7-003

$18.54

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$5.91

BOLT, FLANGE (8X40)

96300-08040-00

$1.97

BOLT, FLANGE (8X45)

96300-08045-00

$1.93
