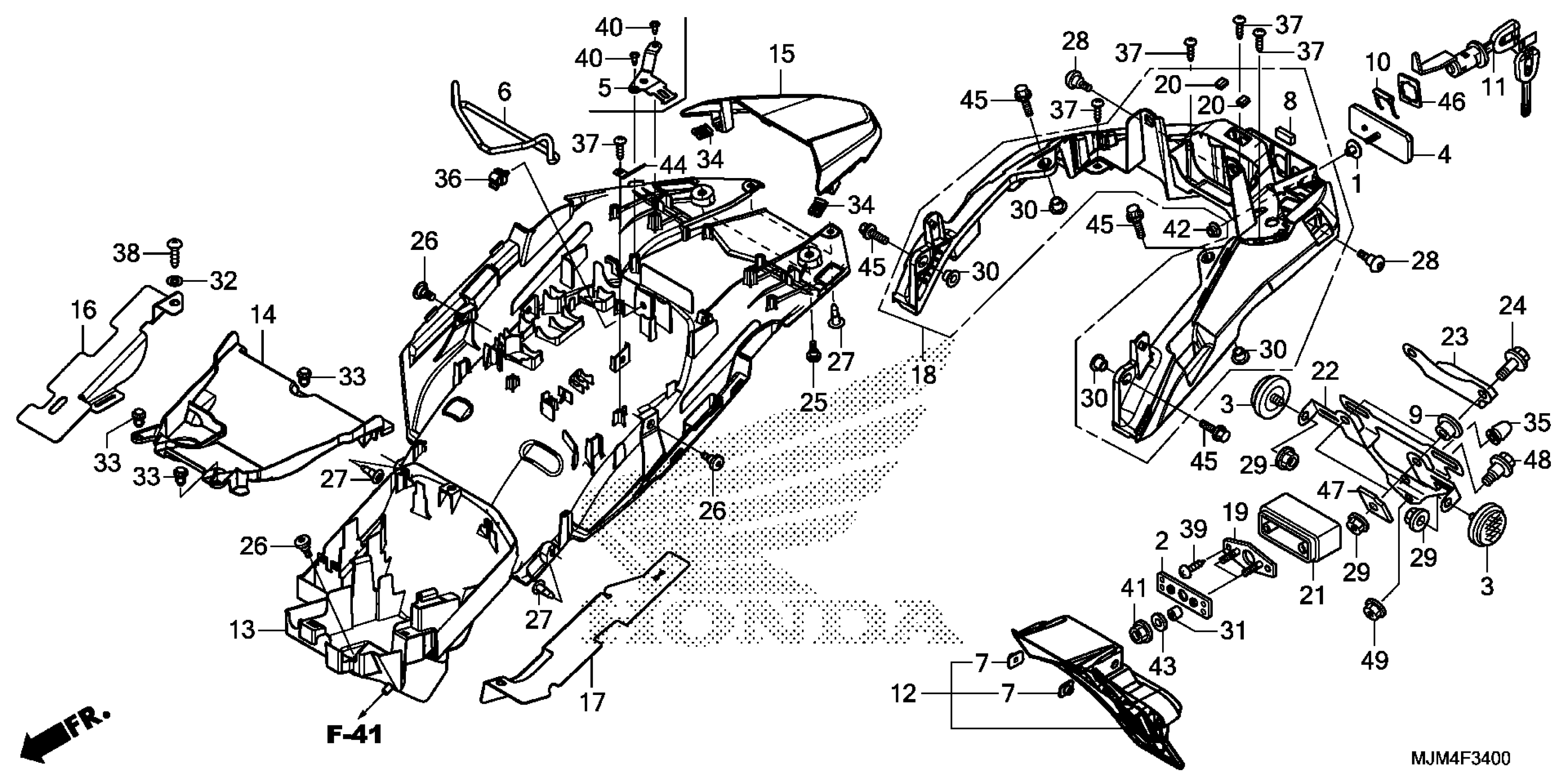

Honda VFR800FAC (15) INTERCEPTOR, JPN, VIN# JH2RC791-FK100001 TO JH2RC791-FK199999 REAR FENDER Diagram

#

Description
Price

1

COLLAR, TAILLIGHT SETTING

33715-MC4-610

$4.59

2

RUBBER, LICENSE LIGHT

33728-MFL-000

$2.97

3

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$13.66

4

REFLECTOR, REFLEX

33741-MCJ-G01

$23.89

5

STAY, TURN SIGNAL RELAY

50124-MJM-A10

$6.07

6

BAND, U-LOCK

50290-MBL-610

$4.89

7

NUT, SPECIAL (6MM)

61304-HB3-003

$2.78

8

RUBBER (20X5XT3)

64373-MGY-640

$2.57

9

COLLAR, SEAT SETTING

77103-MEE-000

$2.72

10

PLATE, LOCK KEY SETTING

77235-MJE-D00

$2.74

11

KEY, SEAT LOCK This part replaces 77239-MJM-D00.

77239-MJM-D02

$141.59

12

BRACKET, LICENSE LIGHT

80100-MFL-670

$26.80

13

FENDER ASSY. B, RR.

80101-MJM-D10

$251.67

14

COVER, BATTERY

80106-MJM-D10

$24.51

15

COVER, LICENSE LIGHT

80107-MJM-A10

$29.56

16

MAT, R. FENDER

80111-MJM-D10

$14.93

17

MAT, L. FENDER

80112-MJM-D10

$14.93

18

STAY A, FENDER

80115-MJM-D00

$224.08

19

STAY, LICENSE LIGHT BRACKET

80118-MGE-670

$7.74

20

RUBBER, PROTECTOR

80119-MGE-300

$2.98

21

BRACKET, LICENSE LIGHT

80201-MGE-670

$8.20

22

BRACKET, NUMBER PLATE

84700-MJM-A00

$27.57

23

PLATE, SPLASH GUARD

84705-MGE-670

$8.67

24

BOLT, FLANGE (6X16)

90001-PZ1-000

$3.31

25

SCREW, SPECIAL (5X14)

90101-MJJ-D30

$3.17

26

BOLT, FR. DISK COVER

90114-MAC-780

$3.10

27

CLIP, BUMPER SEAL

90116-SP0-003

$4.86

28

SCREW, PAN (6X14)

90117-MFL-D20

$2.05

29

NUT, U (6MM) (FUSE RASHI)

90301-473-003

$4.07

30

COLLAR (8MM)

90450-KG8-000

$4.76

31

COLLAR (7.5X6.8)

90501-437-710

$2.56

32

WASHER, PLAIN (7MM)

90501-KV6-670

$1.87

33

CLIP, SPLASH SHIELD

90657-SB0-003

$5.26

34

NUT, CLIP (5MM)

90677-KAN-961

$4.07

35

PLUG, CONE TYPE

90899-422-610

$1.89

36

CLIP, HARNESS

91547-SE0-003

$5.63

37

SCREW, TAPPING (4X10)

93903-24280

$1.49

38

SCREW, TAPPING (4X10)

93903-242G0

$1.52

39

SCREW, TAPPING (4X12)

93903-24380

$1.49

40

SCREW, TAPPING (4X12)

93903-243G0

$1.61

41

NUT, FLANGE (5MM)

94050-05000

$1.49

42

NUT, FLANGE (5MM)

94050-05070

$1.49

43

WASHER, PLAIN (5MM)

94103-05000

$1.49

44

CLIP, WIRE (4X50)

94591-45000

$2.92

45

BOLT, FLANGE (8X25)

96300-08025-00

$1.62

46

WASHER, LOCK (WAVE)

88537-MJE-D00

$3.93

47

WASHER, NUMBER BRACKET SETTING

84701-MJM-A00

$4.92

48

BOLT, SPECIAL (5MM)

90112-GC3-000

$2.97

49

NUT, FLANGE (5MM) (FUSE RASHI)

90301-MG8-000

$4.66
