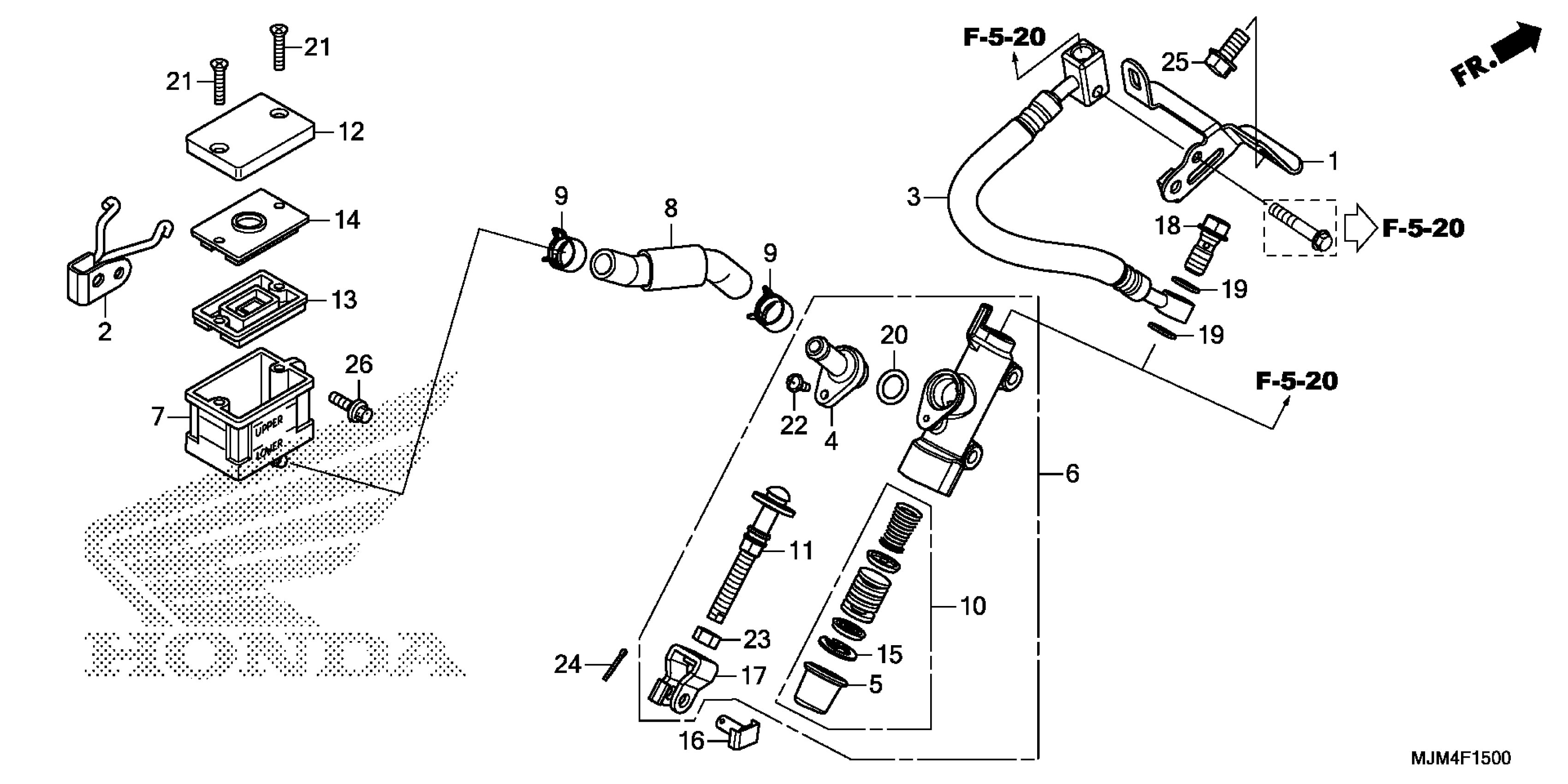

Honda VFR800FAC (15) INTERCEPTOR, JPN, VIN# JH2RC791-FK100001 TO JH2RC791-FK199999 REAR BRAKE MASTER CYLINDER Diagram

STAY A, RR. BRAKE PIPE

43160-MJM-D00

$15.46

GUIDE, RR. BRAKE HOSE

43163-MJM-D10

$11.41

CONNECTOR

43503-HB5-006

$9.06

BOOT

43504-MB2-006

$9.01

M/CYL SUB-ASSY, RR. This part replaces 43510-MJM-305.

43510-MJM-D01

$172.03

CUP, OIL

43511-KT8-006

$32.58

HOSE, RR. MASTER CYLINDER

43512-MJM-D01

$12.42

CLAMP, MASTER CYLINDER OIL HOSE

43514-445-771

$11.72

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MB2-315

$41.76

ROD, PUSH

43530-MGY-641

$25.22

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$3.87

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$3.87

DIAPHRAGM

45520-MG7-006

$9.52

PLATE, DIAPHRAGM

45521-HA2-006

$9.75

CIRCLIP

46182-MEL-D21

$1.77

PIN, BRAKE ROD

46503-MAL-000

$5.46

JOINT, BRAKE ROD

46504-MAL-601

$12.20

O-RING (14.8X2.4)

91212-422-006

Unavailable

SCREW, FLAT (4X40)

93600-04040-1G

$0.43

SCREW-WASHER (4X12)

93893-04012-07

$1.22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

NUT, HEX. (8MM)

94002-08000-0S

$1.19

PIN, SPLIT (2.0X12)

94201-20120

$0.94

BOLT, FLANGE (8X16)

95701-08016-08

$1.59

BOLT, FLANGE (6X16)

96001-06016-07

$0.96
