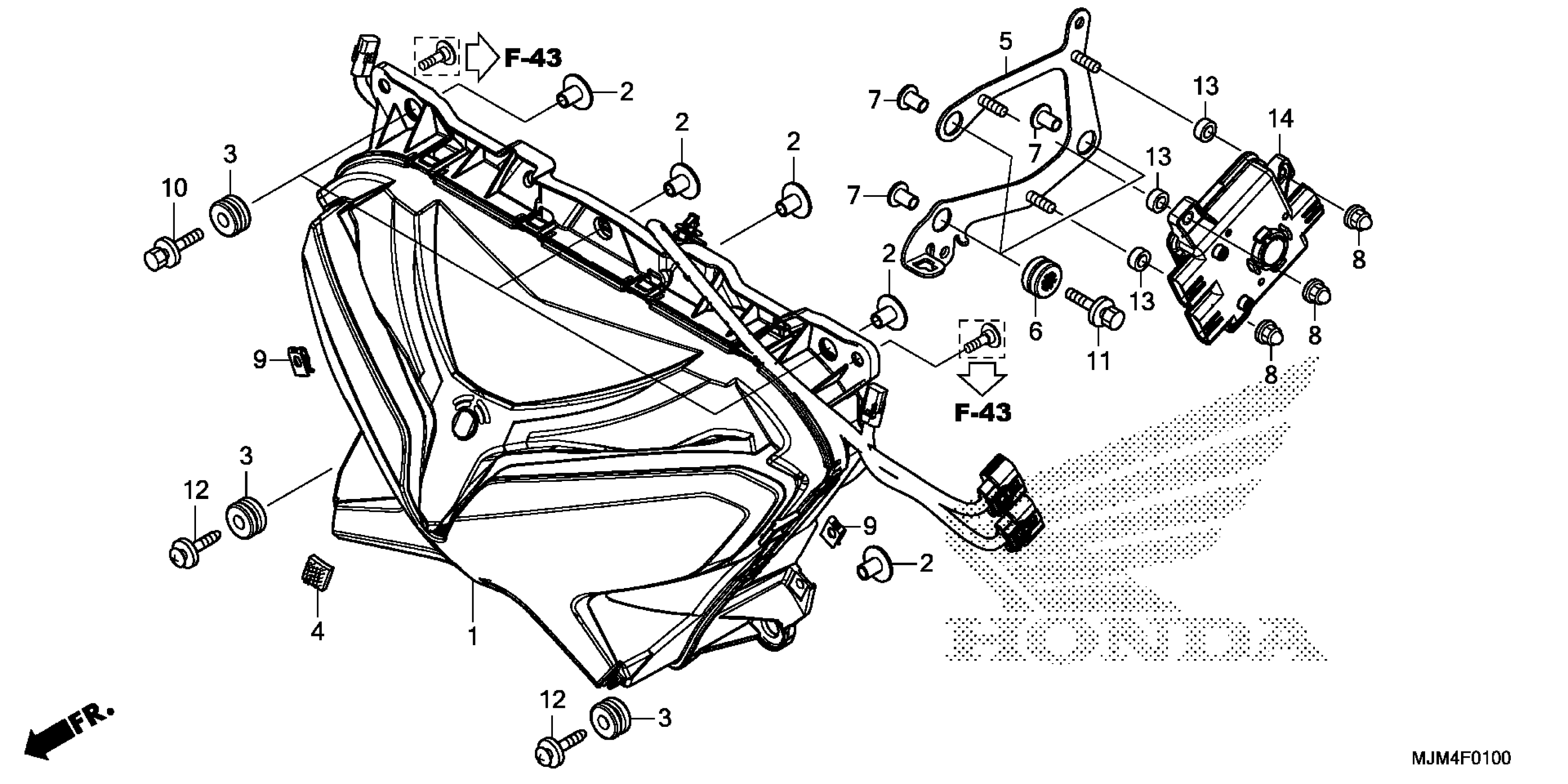

Honda VFR800FAC (15) INTERCEPTOR, JPN, VIN# JH2RC791-FK100001 TO JH2RC791-FK199999 HEADLIGHT Diagram

HEADLIGHT UNIT This part replaces 33102-MJM-315.

33102-MJM-D12

$1,597.50

COLLAR

33111-MJN-A00

$2.82

RUBBER, FR. FENDER MOUNTING

61103-357-000

$3.13

FASTENER B, DUAL LOCK (20X20)

64165-MGH-640

$4.34

STAY, LED UNIT

64560-MJM-D11

$20.75

RUBBER, SEAT STAY MOUNTING

77209-K26-900

$1.50

COLLAR, COVER MOUNTING

83505-KGB-610

$2.62

NUT, CAP (5MM)

90167-MN5-000

$4.03

NUT, CLIP (5MM)

90677-KAN-961

$3.89

BOLT-WASHER (6X25)

93404-06025-00

$1.01

BOLT-WASHER (6X25)

93404-06025-08

$1.87

SCREW-WASHER (6X25)

93894-06025-08

$0.62

COLLAR (5.4MM)

77708-MV8-750

$4.53

LED UNIT

33109-MJN-A01

$245.93
