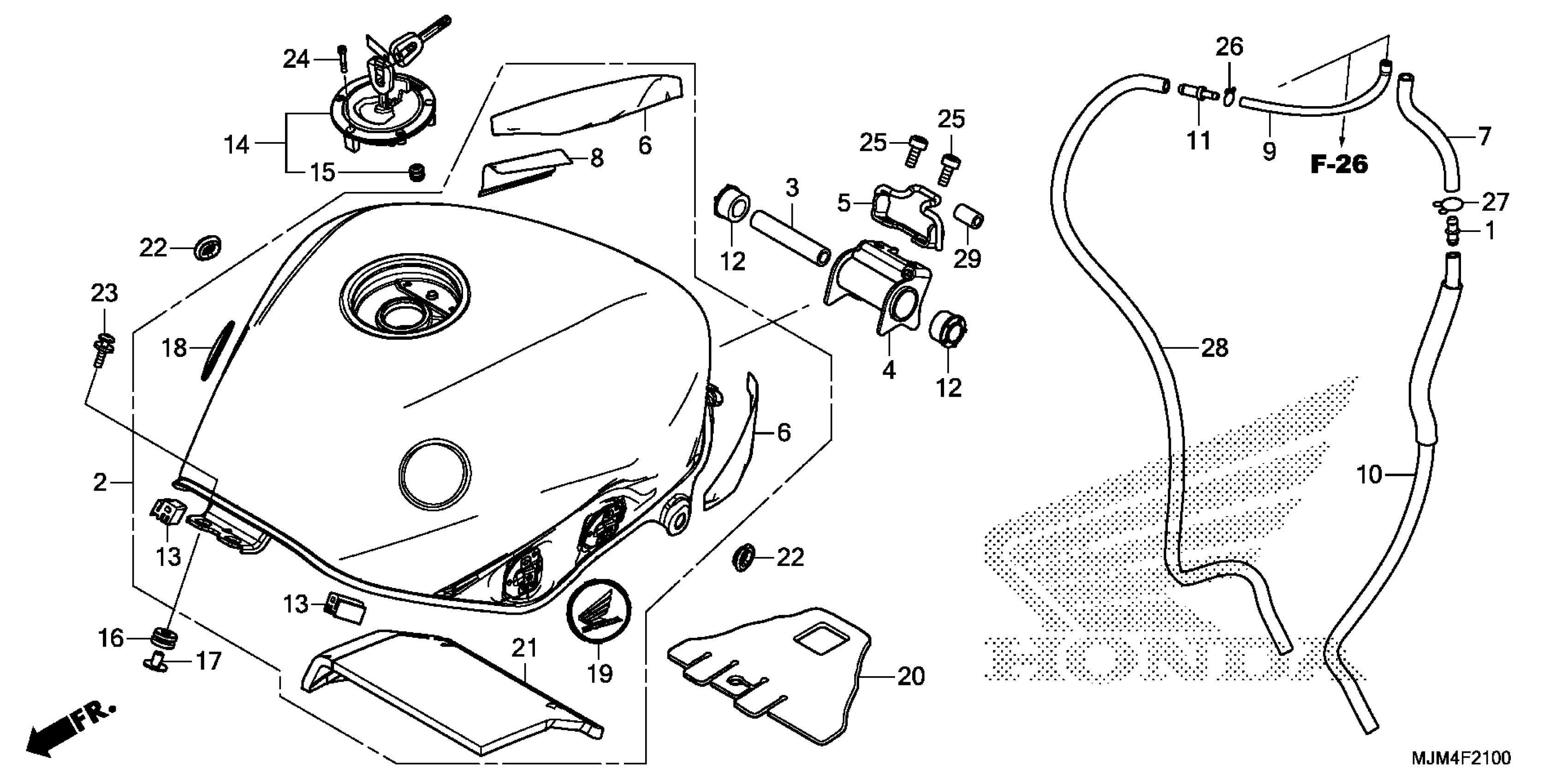

Honda VFR800FAC (15) INTERCEPTOR, JPN, VIN# JH2RC791-FK100001 TO JH2RC791-FK199999 FUEL TANK Diagram

#

Description
Price

1

JOINT, BREATHER TUBE

17359-419-670

$1.87

2

TANK ASSY., FUEL (TYPE3) (WL) | Victory red R334;

17500-MJM-D00ZD

$1,071.64

2

TANK ASSY., FUEL (TYPE2) (WL) | Pearl glare white NHB53P;

17500-MJM-D00ZF

$1,119.75

3

COLLAR, RR. TANK

17526-MJM-D00

$15.68

4

STAY, RR. TANK

17527-MJM-D00

$19.26

5

STAY, FR. SEAT

17531-MJM-D10

$7.78

6

TAPE, TANK GUARD

17536-MJM-D10

$16.70

7

TUBE, DRAIN

17542-MFN-D00

$5.74

8

PROTECTOR

17542-MGY-640

$8.36

10

TUBE, DRAIN

17546-MJM-D10

$23.93

12

CUSHION, FUEL TANK PIVOT

17567-MJM-D00

$4.51

13

CUSHION, FUEL TANK

17611-ML7-000

$7.66

14

CAP COMP This part replaces 17620-MJE-D01.

17620-MJE-D04

$202.04

15

SEAL, BREATHER This part replaces 17621-MGP-D61.

17621-MGP-D62

$4.78

16

RUBBER, FR. FENDER MOUNTING

61103-357-000

Unavailable

17

COLLAR, SETTING

61104-422-000

$6.44

18

BADGE, R. PRODUCT

64503-MFL-000

$34.51

19

BADGE, L. PRODUCT

64508-MFL-000

$34.51

20

RUBBER, RR. HEAT GUARD

80108-MJM-D10

$28.43

21

URETHANE, FUEL TANK (LOWER)

83430-MJM-D10

$9.99

22

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

23

SCREW-WASHER, PAN (6X28)

90109-MJM-D00

$4.33

24

BOLT, SOCKET (4X24) (SUS)

90110-MGP-D60

$3.03

25

BOLT, SOCKET (8X20)

90157-MF5-000

$5.74

27

CLIP, TUBE (B12)

95002-02120

Unavailable

29

PROTECTOR, BRAKE PIPE (7X20)

45135-MAT-300

$2.62
