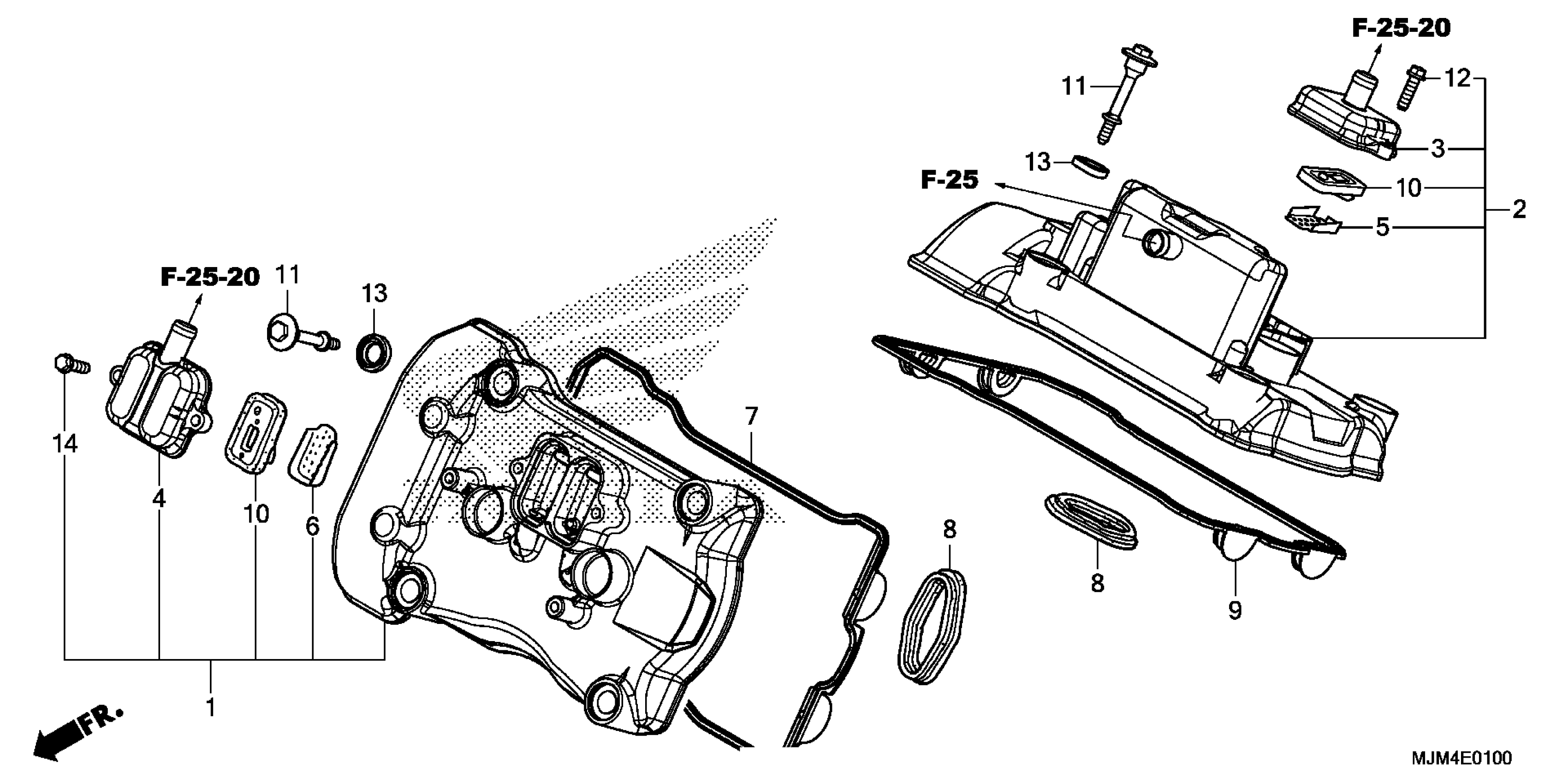

Honda VFR800FAC (15) INTERCEPTOR, JPN, VIN# JH2RC791-FK100001 TO JH2RC791-FK199999 CYLINDER HEAD COVER Diagram

COVER ASSY., FR. CYLINDER HEAD

12310-MJM-D00

$259.75

COVER ASSY., RR. CYLINDER HEAD

12320-MJM-D00

$264.81

COVER, REED VALVE

12331-MAT-750

$38.12

COVER, REED VALVE

12339-MJM-D00

$22.35

PLATE, PORT (AI)

12341-MAT-750

$12.93

PLATE, PORT (AI)

12341-MBG-000

$7.32

GASKET, FR. CYLINDER HEAD COVER

12391-MCW-000

$42.57

GASKET B, CYLINDER HEAD COVER

12394-MBG-000

$5.80

GASKET, RR. CYLINDER HEAD COVER

12395-MCW-000

$42.57

VALVE, REED

18601-MCJ-003

$13.29

BOLT, HEAD COVER

90002-MY5-850

$8.73

BOLT, FLANGE (6X20)

90020-ZC3-000

$1.79

RUBBER, MOUNTING

90543-MV9-670

$4.71

BOLT, FLANGE (6X20)

96001-06020-00

$1.15
