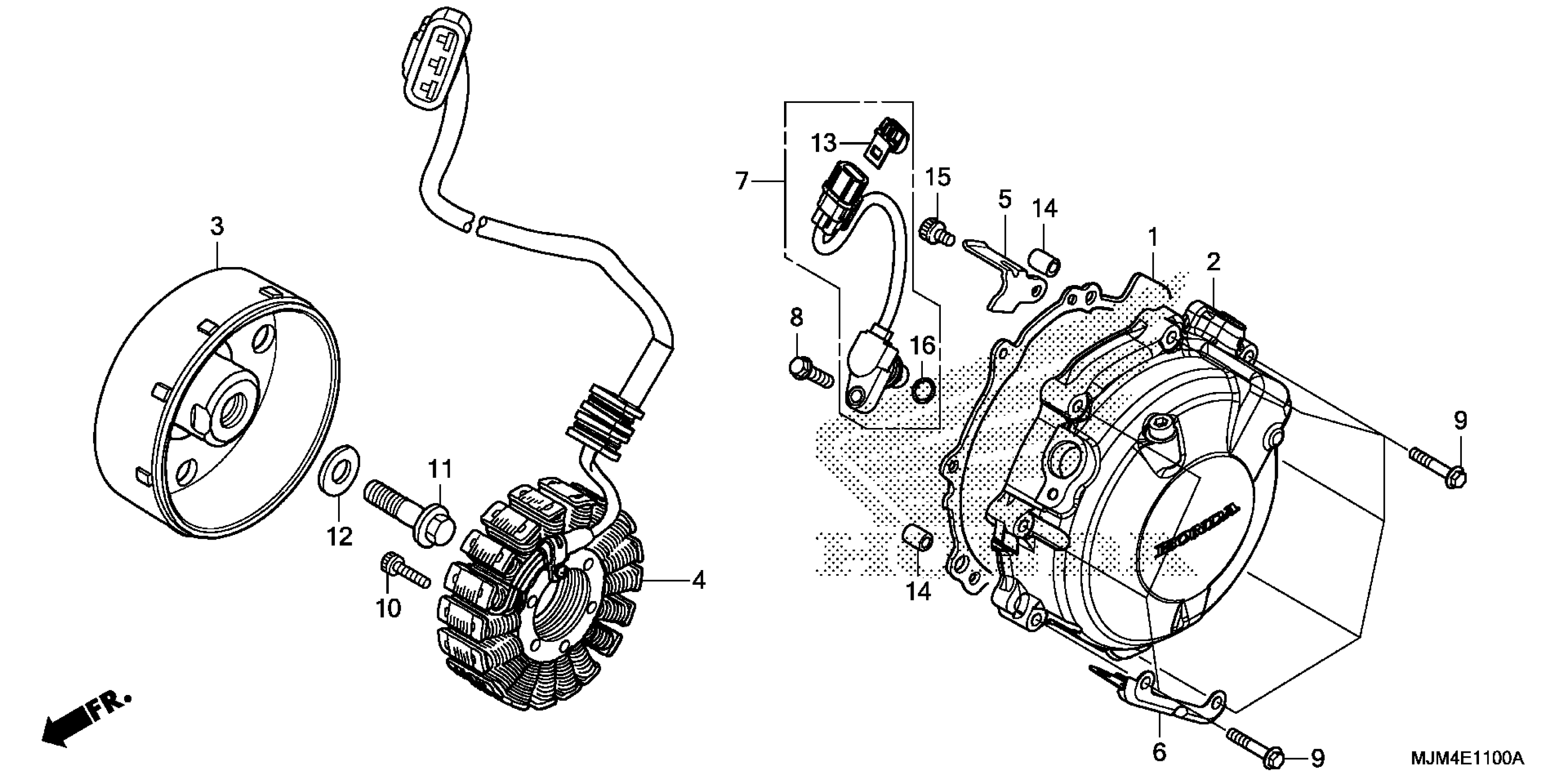

Honda VFR800FAC (15) INTERCEPTOR, JPN, VIN# JH2RC791-FK100001 TO JH2RC791-FK199999 ALTERNATOR Diagram

#

Description

Price

1

GASKET, ACG COVER This part replaces 11636-MJM-D00.

11636-MJM-D01

$18.93

2

COVER ASSY., ALTERNATOR

11640-MJM-D00

$206.75

3

FLYWHEEL

31110-MJM-D01

$448.00

4

STATOR

31120-MJM-D01

$354.48

5

CLAMP, ALTERNATOR WIRE

31131-MR7-010

$5.08

6

STAY, CLIP

32126-MJM-D00

$4.52

7

SENSOR ASSY., PHASE CONTROL

36140-MJM-D01

$147.64

8

BOLT, FLANGE (6X22) (NSHF)

90007-GHB-660

$2.23

9

BOLT, FLANGE (6X32) (NSHF)

90007-GHB-690

$1.87

10

BOLT, SOCKET (6X34)

90012-KR8-000

$3.38

11

BOLT, FLANGE (10MM)

90023-MV9-670

$11.19

12

WASHER (10.5X27)

90405-KT7-000

$4.70

13

CLIP, CONNECTOR (BLACK)

91565-SEL-003

$3.67

14

PIN, DOWEL (8X14)

94301-08140

$2.25

15

BOLT, SOCKET (6X8) This part replaces 96600-06010-00.

90016-58G-A00

$2.90
