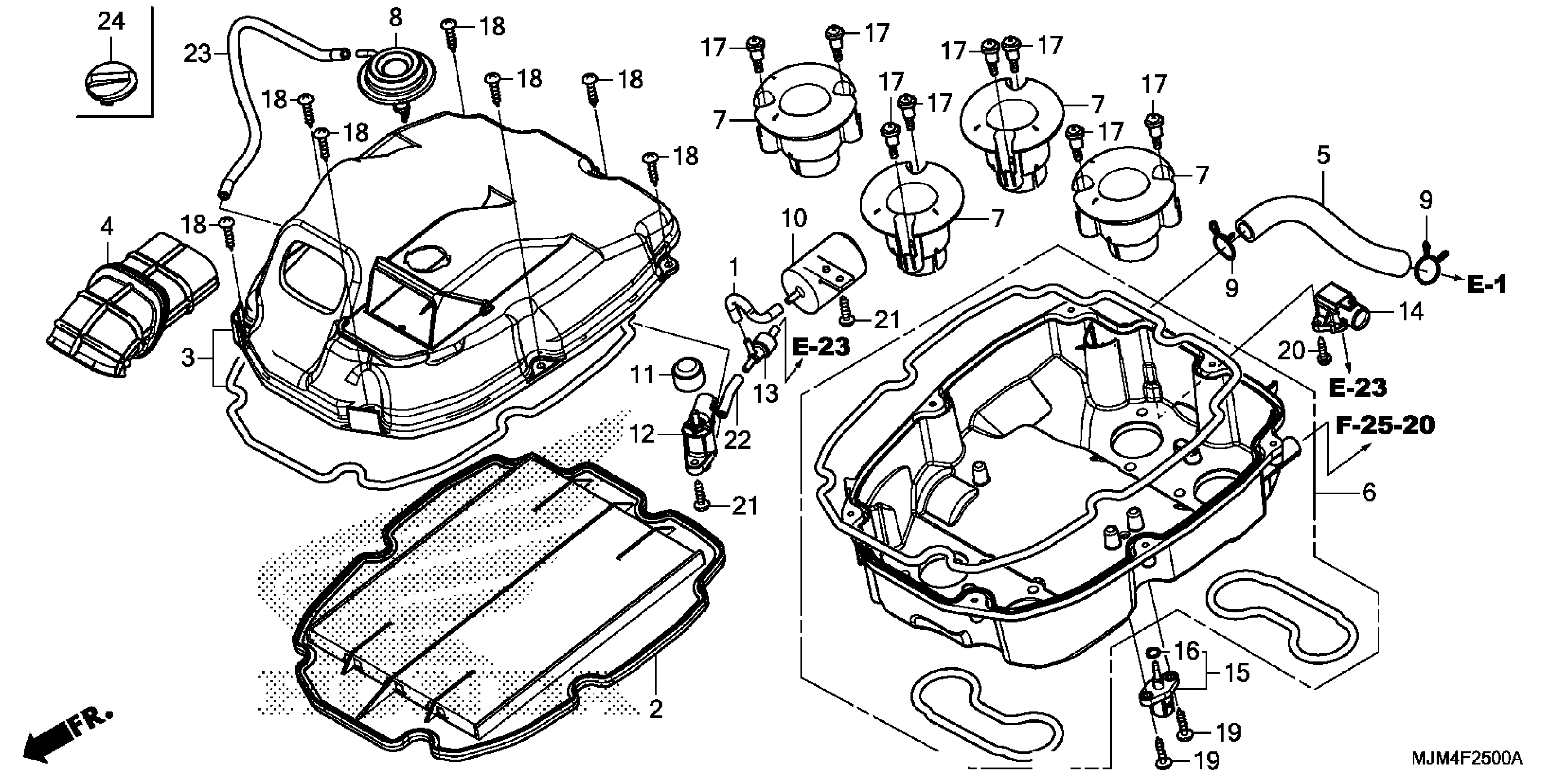

Honda VFR800FAC (15) INTERCEPTOR, JPN, VIN# JH2RC791-FK100001 TO JH2RC791-FK199999 AIR CLEANER Diagram

TUBE (IDC)

17205-MJM-D10

$3.85

ELEMENT, AIR CLEANER

17210-MCW-D01

$45.61

COVER, AIR CLEANER

17221-MCW-D02

$111.26

DUCT, AIR CLEANER

17222-MCW-D01

$37.03

TUBE, BREATHER

17227-MBG-000

$8.74

HOUSING, AIR CLEANER

17231-MJM-D00

$136.21

FUNNEL, AIR RUBBER

17236-MJM-D00

$11.82

DIAPHRAGM, CONTROL VALVE

17238-MW4-003

$47.47

CLIP, BREATHER TUBE

17554-MB0-000

$2.65

CHAMBER, VACUUM (50)

36132-PH4-671

$41.88

FILTER ASSY., SOLENOID VALVE

36138-PR7-A01

$33.51

VALVE ASSY., BYPASS CONTROL SOLENOID

36163-PV0-004

$381.59

VALVE, IN. AIR SHOT AIR CHECK

36627-MN5-003

$39.51

SENSOR, MAP

37830-MCF-003

$189.66

SENSOR ASSY., AIR TEMPERATURE

37880-P05-A00

$32.11

O-RING (7.5X1.5)

91303-PK2-005

$2.78

SCREW, PAN (5MM)

91508-MGP-D00

$3.47

SCREW, TAPPING (5X20)

93903-25480

$0.90

SCREW, TAPPING (5X20)

93911-25520

$0.72

SCREW, TAPPING (4X16) (PO)

93913-24420

$0.90

SCREW, TAPPING (5X20) (PO)

93913-25520

$1.18

BULK HOSE, VACUUM (3.5X8000) (3.5X40)

95005-35008-10M

$122.89

BULK HOSE, VACUUM (4.5X1000) (4.5X350)

95005-45001-10M

Unavailable
