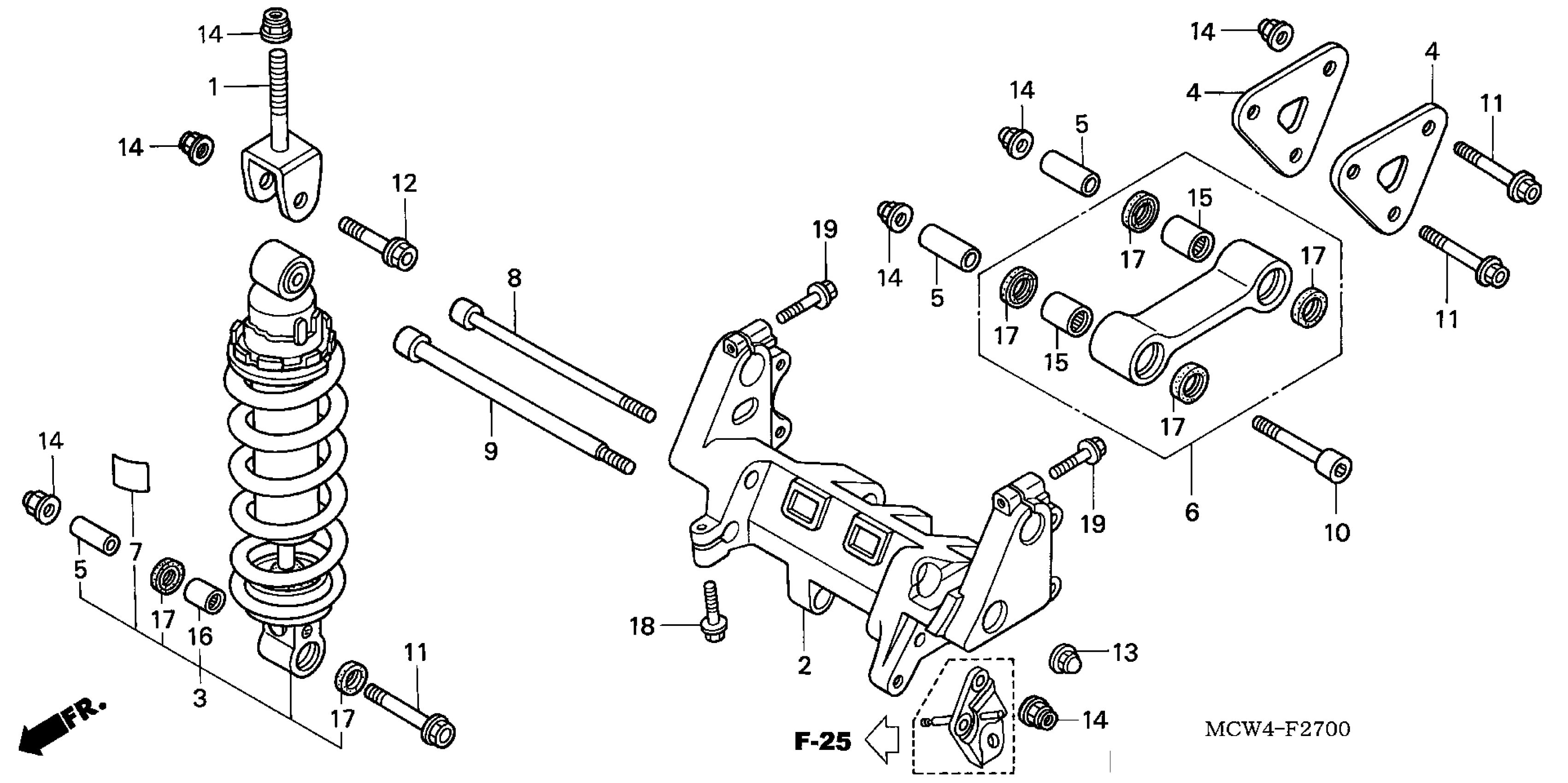

Honda VFR800AC (03) INTERCEPTOR, JPN, VIN# JH2RC461-3M500001 TO JH2RC461-3M599999 REAR SHOCK ABSORBER Diagram

BRACKET, RR. CUSHION

50233-MZ7-000

$18.41

BRACKET, RR. CUSHION (LOWER)

50475-MCW-D00

$385.41

CUSHION ASSY., RR.

52400-MCW-D01

Unavailable

PLATE, RR. SHOCK ABSORBER LINK

52461-MCW-D00

$19.61

COLLAR, CUSHION CONNECTING ROD

52463-MAL-G00

$11.67

ROD SUB-ASSY., CUSHION CONNECTING

52475-MBG-000

$123.23

LABEL, RR. DAMPER CAUTION (ENGLISH)

87516-KV6-610

$4.93

BOLT, SOCKET (10X190)

90101-MCW-D00

$12.70

BOLT, SOCKET (10X230)

90102-MCW-D00

$19.54

BOLT, SOCKET (10X70)

90110-MR7-000

$8.43

BOLT, FLANGE (10C60)

90154-HA6-000

$9.76

BOLT, FLANGE (10X52)

90154-HA8-000

$8.68

NUT, FLANGE CAP (10MM)

90202-MR1-000

$3.31

NUT, U (10MM) NUT, SELF-LOCK (10MM)

90304-GE8-003

$3.67

BEARING, NEEDLE (KOYO)

91071-KV3-005

$24.88

BEARING, NEEDLE (17X24X20) (NTN)

91072-KT7-003

$20.20

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$6.21

BOLT, FLANGE (8X40)

96300-08040-00

$2.13

BOLT, FLANGE (8X45)

96300-08045-00

$2.08
