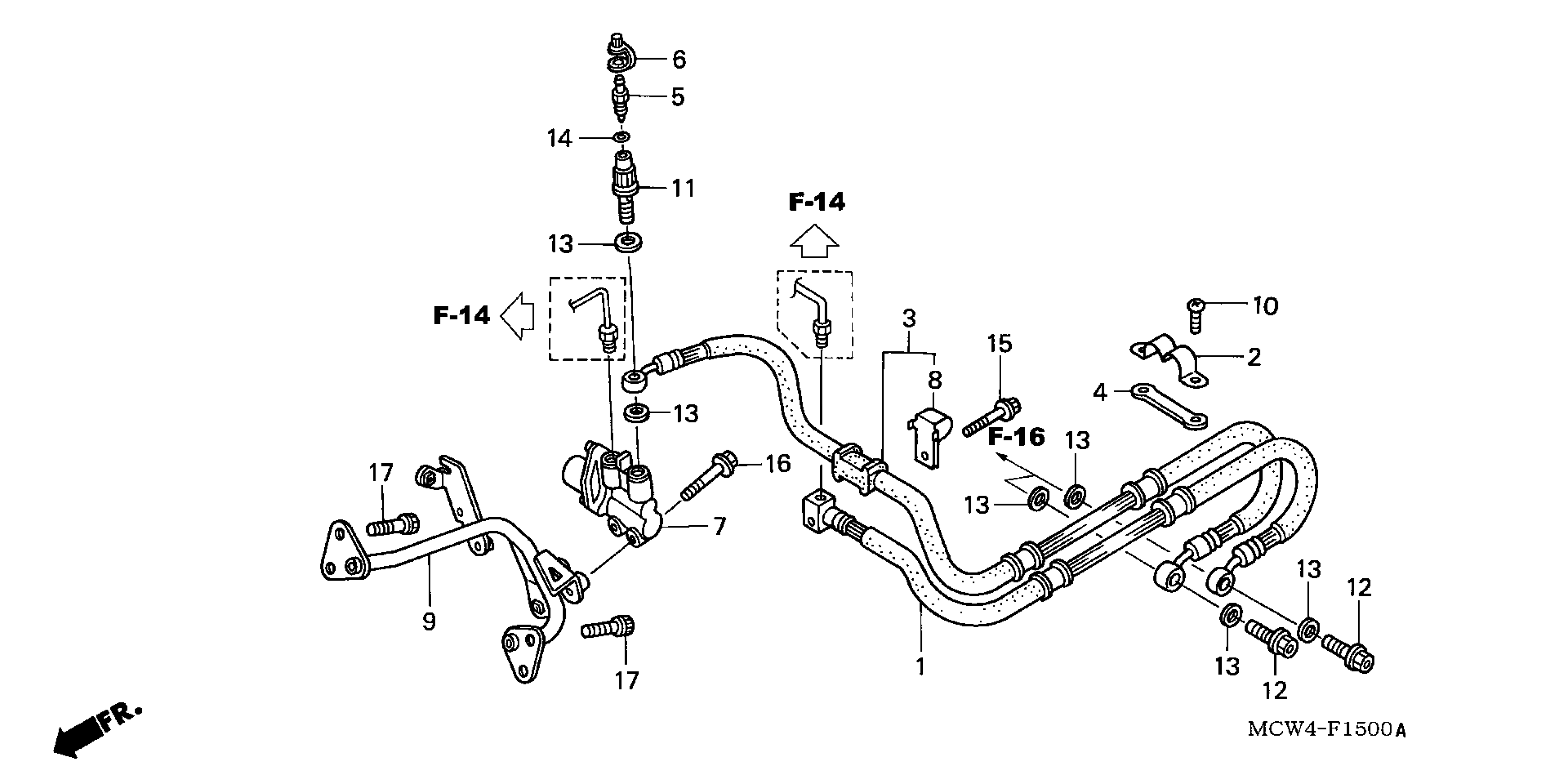

Honda VFR800AC (03) INTERCEPTOR, JPN, VIN# JH2RC461-3M500001 TO JH2RC461-3M599999 REAR BRAKE HOSE Diagram

MAIN HOSE, RR. BRAKE

43311-MCW-D01

$70.32

CLAMP, BRAKE HOSE

43312-MBG-000

$6.61

SUB-HOSE, RR. BRAKE

43312-MCW-D01

$82.06

PLATE, BRAKE HOSE

43313-MBG-000

$6.74

SCREW, BLEEDER

43352-MG9-006

$4.96

CAP, BLEEDER This part replaces 43353-MG9-006.

43353-461-771

$4.70

CAP, BLEEDER This part replaces 43353-443-761.

43353-461-771

$4.70

CAP, BLEEDER

43353-461-771

$4.70

VALVE ASSY., PROPORTIONING This part replaces 46200-MCW-D01.

46200-MCW-D02

$432.91

VALVE ASSY., PROPORTIONING

46200-MCW-D02

$432.91

CLAMP, BRAKE HOSE

52115-ML8-670

$4.94

STAY, PCV

57120-MCW-D00

$40.78

SCREW, PAN (5X8)

90115-KV3-700

$2.38

BOLT B, OIL (10X22)

90145-MBG-003

$11.91

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

WASHER, OIL BOLT

90545-300-000

$3.72

O-RING (5.8X1.9) (NISSIN)

91355-MG9-006

Unavailable

BOLT, FLANGE (6X28)

95701-06028-07

$1.03

BOLT, FLANGE (6X32) (Honda Code 2105856)

95701-06032-00

$1.71

BOLT, SOCKET (8X18)

96600-08018-00

$1.19
