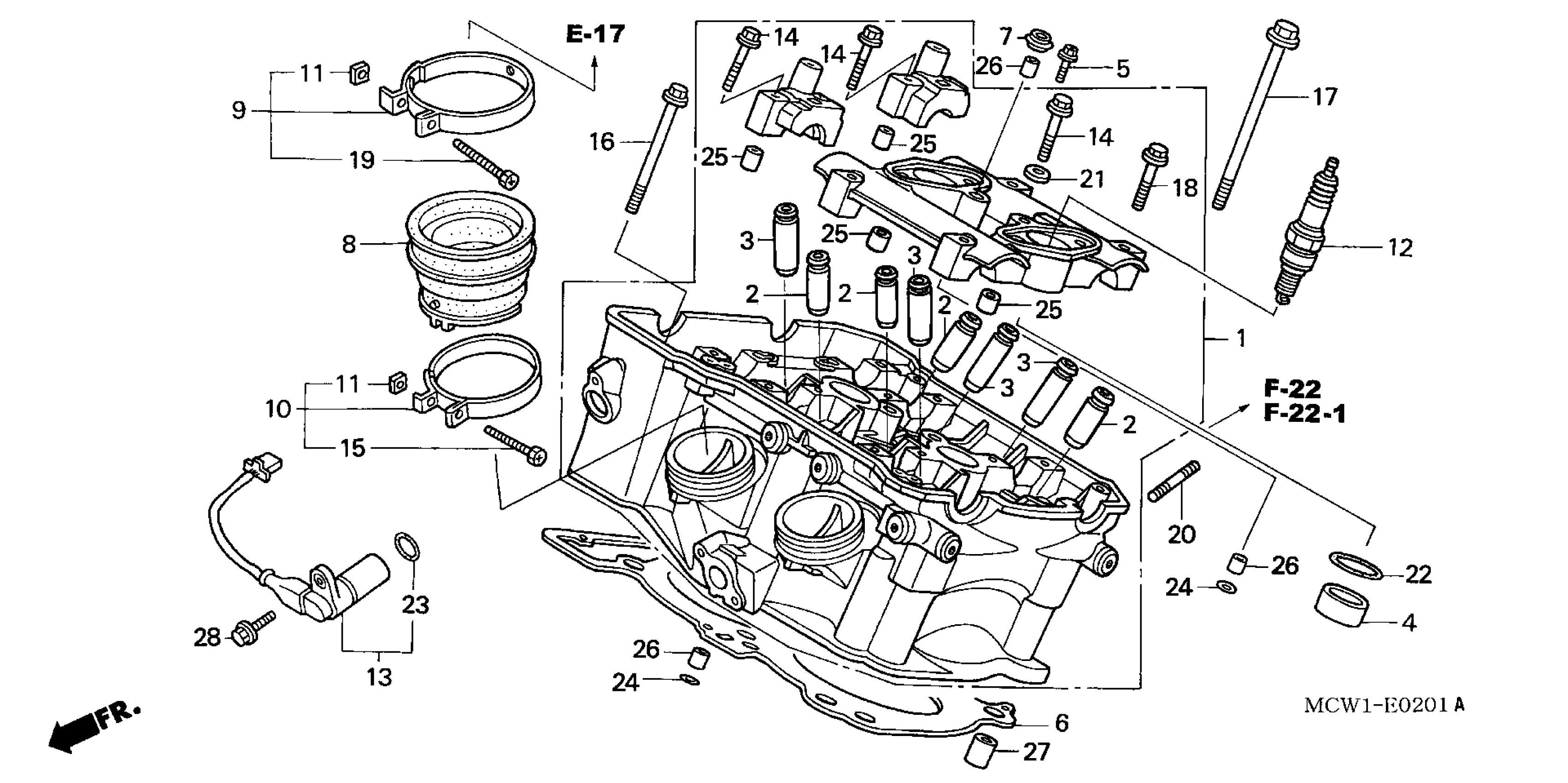

Honda VFR800AC (03) INTERCEPTOR, JPN, VIN# JH2RC461-3M500001 TO JH2RC461-3M599999 CYLINDER HEAD (RR.) Diagram

#

Description
Price

1

CYLINDER HEAD ASSY., RR.

12020-MCW-000

$1,234.43

2

GUIDE A, VALVE (OVER SIZE)

12204-MCW-305

$16.80

3

GUIDE B, VALVE (OVER SIZE)

12205-MCW-305

$18.02

4

COLLAR (25MM)

12217-MBG-000

$9.26

5

BOLT, ORIFICE

12217-MCE-000

$3.28

6

GASKET, RR. CYLINDER HEAD

12252-MCW-003

Unavailable

7

GASKET C, HEAD COVER

12396-MBG-000

$5.43

8

INSULATOR, THROTTLE BODY

16211-MCW-D00

$17.28

9

BAND, INSULATOR

16217-MCW-000

$3.89

10

BAND B, INSULATOR

16218-MCW-000

$3.31

11

NUT, SQUARE (5MM) (GQ51B C)

16222-MV4-300

$2.15

12

SPARK PLUG (IMR8B-9H) (NGK) | (Optional).

31911-MCW-003

$16.39

12

SPARK PLUG (IMR9B-9H) (NGK)

31912-MCW-003

$17.73

12

SPARK PLUG (VNH24Z) (DENSO) | (Optional).

31921-MCW-004

$30.13

12

SPARK PLUG (VNH27Z) (DENSO)

31922-MCW-004

$34.57

13

PULSER ASSY., CAM

36140-MBG-003

$181.21

14

BOLT, FLANGE (6X45)

90002-MCW-000

$1.79

15

BOLT, RECESSED (5X32)

90005-MM4-000

$1.49

16

BOLT, FLANGE (6X75) (NSHF)

90006-GHB-780

$2.03

17

BOLT-WASHER (9X100)

90007-MCW-000

$4.04

18

BOLT, FLANGE (6X37)

90016-KT7-000

$2.92

19

BOLT, RECESSED (5X28) (GQ51B C)

90023-MM5-000

$2.92

20

BOLT, STUD (6X22)

90035-MW4-000

$3.34

21

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

22

O-RING (24.5X1.9)

91307-PY4-003

$2.86

23

O-RING (16X2.1) (NOK) (Honda Code 3301793)

91309-PX4-003

$2.93

24

O-RING (9.8X1.9) (ARAI)

91317-P4V-004

$2.79

25

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

26

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.28

27

PIN A, DOWEL (12X20)

94301-12200

$2.29

28

BOLT, FLANGE (6X18) (Honda Code 2410918)

95701-06018-07

$1.55
